CNC Steel Cutting Machine Table
Shanghai Tayor Heavy Industry (Group) Co., Ltd.- Cutting Type：Plasma Cutting, Dry Cutting
- CNC Ontroller：Micro Edge-PRO,Edge PRO,Sjtu-Sk
- Plasma Power Source：Hypertherm,Thermadyne,Kjellberg
- Drive Motor：Servo Motor, Panasonic
- Gear Box：Neugart, Germany
- Machine Body：Box Type Welded and Annealed
Base Info
- Model NO.：CNCTG
- Cutting Speed：50-9000mm,Min
- Machine Color：Customized
- Cutting Material：Ms, Ss, Al, Alloy Steel
- Plasma Source：Hypertherm, Kjellberg
- Transport Package：Standard Export Package, Custom Suffocating Free
- Specification：CE, ISO
- Trademark：TAYOR
- Origin：Shanghai, China
- HS Code：845690100
- Production Capacity：500PCS,Year
Description
Cutting Technical DataModel CNCTG1500 CNCTG2000 CNCTG2000 CNCT2500 Machine dimension (mm) 1500x3000 2000x4000 2000x6000 2500x8000 Effective Cutting area (mm) 1000x2000 1500x3000 1500x5000 2000x7000 Cutting Thickness(mm) Flame:5-60mm Plasma:1-25mm Cutting Speed (mm/min) 50-3800 Running speed (mm/min) 12000 Basic components Cutting Mode Plasma or Flame Drive Motor Number Servo motor ,Single-side or Dual-side Cutting Torch Number 1 set Driving Motor Panasonic, Mitsubishi NC Controller ADT-HC6500 SJTU-SK, Micro EDGE, EDGE pro Plasma Power Thermadyne, Kjellberg, Hypertherm Programming software FASTCAM Gearbox Neugart Other Data Working temperature - 10°C -45°C Humidity <90%, no condensation Surroundings Ventilation, no big shake Power voltage 3×380V±10% or up by user's local condition Operation language English or Chinese Options Option Item Powder Marking, integration dust extraction Heating and cooling systems Inkjet equipment
Cutting Samples

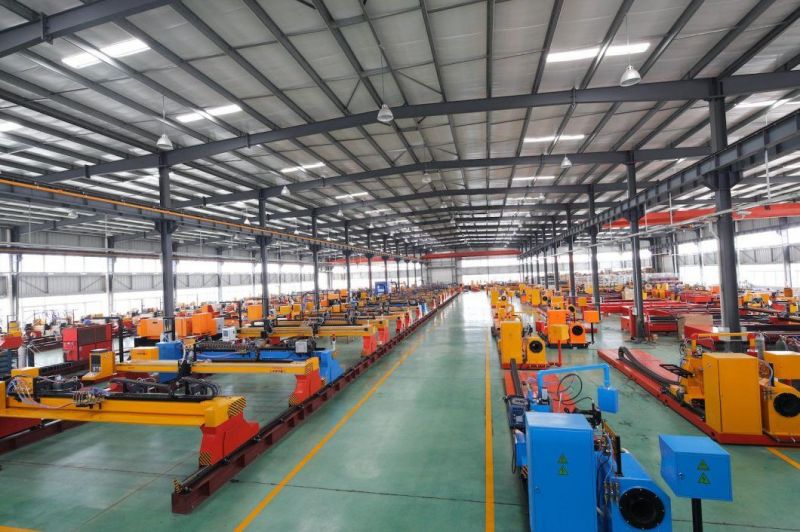

CNC cutting machine workshop

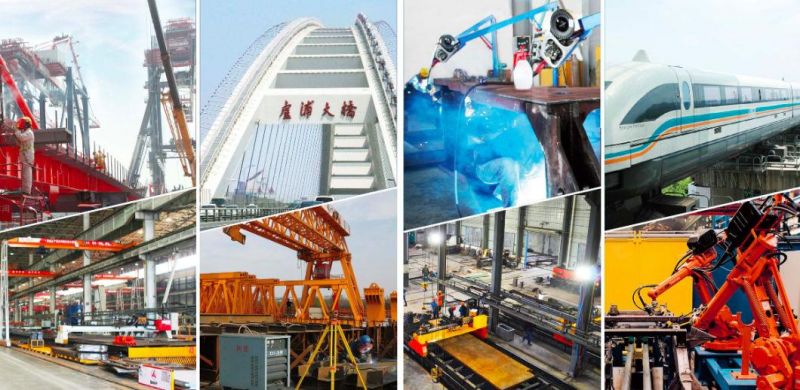

Machines at users' Site
Exhibition
Patents

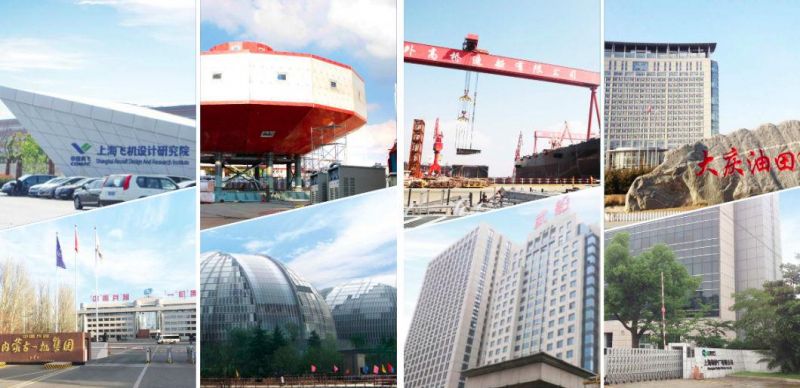

Our Projects
Cutting Samples
CNC cutting machine workshop
Machines at users' Site
Exhibition
Patents
Our Projects
