• Model NO.：LKX502S
• Each Axis：Can Change Feeding Wire Length
• Automation：Automatically
• Wire Dia.：0.2-2.3mm
• Type：Computer Universal Spring Machine
• Transport Package：Wooden Case
• Specification：1200*800*1600MM
• Trademark：LIKEXING
• Origin：Made in China
• HS Code：84633000
• Production Capacity：500sets,Year

Basic Info.

Model NO. LKX502S Each Axis Can Change Feeding Wire Length Automation Automatically Wire Dia. 0.2-2.3mm Type Computer Universal Spring Machine Transport Package Wooden Case Specification 1200*800*1600MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

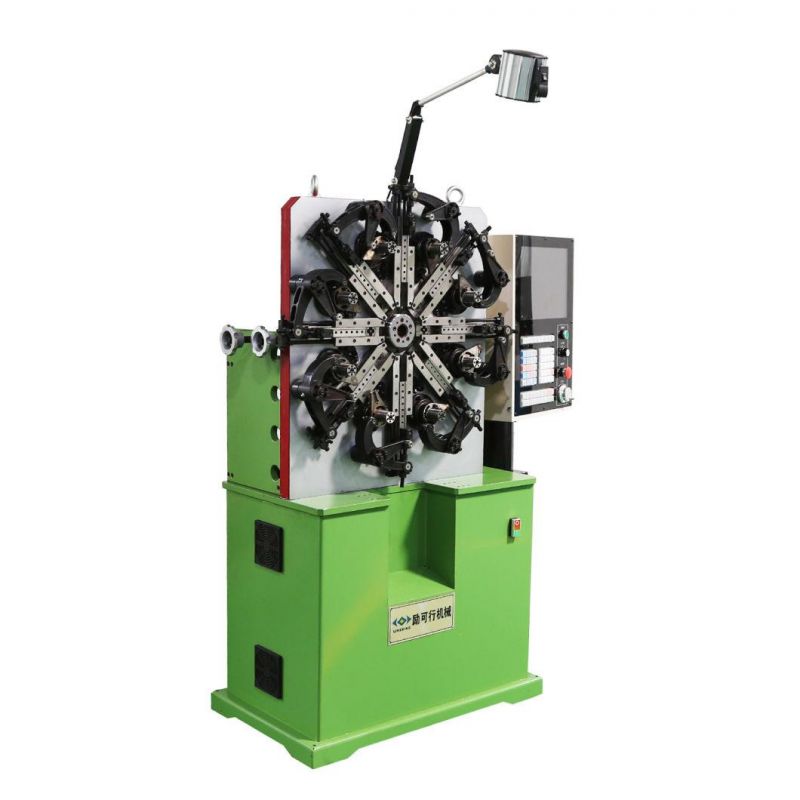

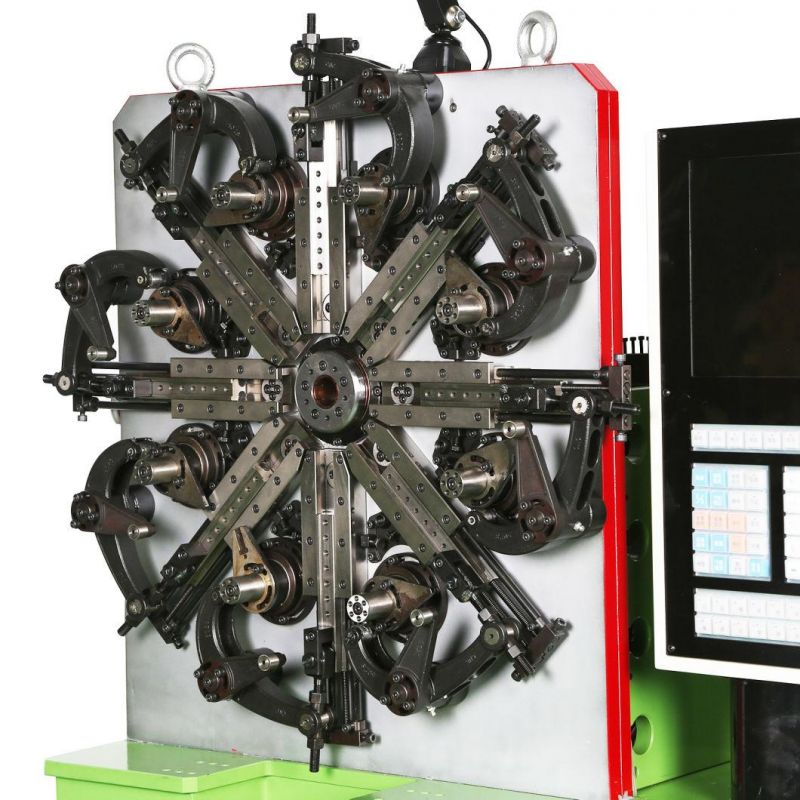

LKX502S  CNC spring forming machine is to produce kinds of springs expertly with high precision and fast speed.

Adopts Japanese Sanyo servo motor and screen display with Arcuchi controller.

It can produce all kinds of compression spring, torsion spring, tension spring, abnormal spring and other wire forms.

Besides it can be extended to 4 axis with spinner upon request.
High quality CNC spring forming machine.



TECHNICAL PARAMETER

Model	LKX502S
Wire diameter (mm)	Ø0.2~Ø2.3
Axis Count	3(4)Axis
Max feeding Length	999999
Instruction value of wire feed	±0.01~±9999.99mm
Instruction value of cam	±0.10~±359.90
Servo motor of wire feed (kw)	2.7KW
Servo motor of cam (kw)	2.7KW
Servo motor of Quill Z-axis (kw)	1KW
Machine size L*W*H(mm)	1200×800×1600
Weight (Kg)	800
Power	380V 3-Phase

FAQ:
Q: What's the Min. order?
A: One set.

Q: What is the payment term?
A: The payment term is 30% deposit as PO confirmed and the 70%  after the shipment. We also accept other payment term according to the agreement.

Q:What's the delivery time?
A:Normally the delivery time of the machine is 30days after receicing deposit.But it depends on the machine model. Some of them could be shipped within several days, because normal machine type is current stock.
