• Model NO.：GTDZL-170
• Production Capacity：10 Sets ,Month

Basic Info.

Model NO. GTDZL-170 Production Capacity 10 Sets /Month

Product Description

2022 Fashion Top Universal Big Anchor Cable Chain Curb Chain Machine With Plasma Welding MachineJewelry making equipment.
Gold chain making machine:
Plasma Automatic Chain Welding & Making Machine GTZL-300 which is fully controlled by microcomputer. Since the machine comes into market, it has added brilliance to jewelry processing plant at home and abroad, and made up the insufficiency of domestic jewelry machinery trade, as well as a good beginning for plasma welding technology in the future.

The main characters of the machine are as follows:
1. Making and welding gold, platinum gold and silver etc. By hi-tech plasma.
2. It is no need for any auxiliary material, for it can complete welding at one time upon the chain purity up to one hundred percent, and also make the chain flat and smooth.

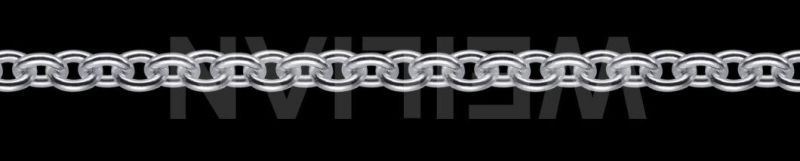

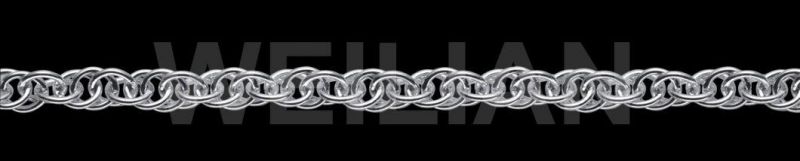

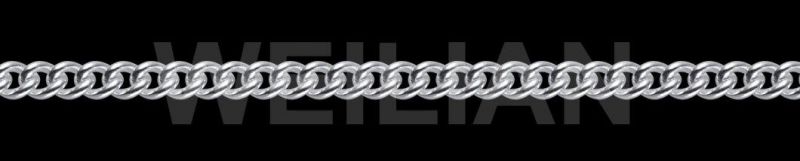

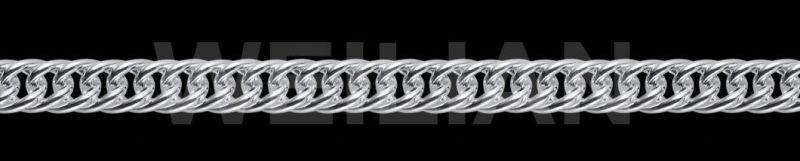

3. Welding and making with high speed, it can make and weld single-curb, cable diameter and double-curb wire of diameter among 0.19-0.6 mm into perfect and smooth chain at one time, at the speed of 200 to 300 circles per minute.
4. As the transmission cams are movable, it can change their position for different styles of chain.

5. Owing to the liquid crystal display system and data, it is convenient for technological operation.
6. It can continue working for over 100 hours only requiring for argon gas, compressed air and 220V power.
7. The omnibearing oil spraying system functions well in prolonging the working period of main parts of the machine.
8. On the basis of the liquid crystal display, chains of different sizes can be welded by current adjusting.
Wire diameter: 0.80mm/1.30mm
Speed: 170rpm
Power supply: ~220V / 50Hz
Dimension: L70cm× W72cm× H172cm
Weight: 250kg

Dimensions	L70cm×W72cm×H172cm
Weight	250KG
Power	300W
Weaving speed of main engine	80-300 circles
Power supply	220V ± 10/50Hz (plus or minus 5 percent)
Welding momentary current	30 -60A adjustable
Detecting system	The sensor can automatically detect the chain breaking and chain density, as well as the stopping of line working
Protection system	Protection for over-current and under-current
Auxiliary argon gas pressure	0.5MPa
Working argon gas pressure	0.2-0.4MPa
Working compressed air pressure	0.3-0.8MPa
Ambient temperature	-3 to 40 (Degree Centigrade)
Ambient relative humidity	< 80%
