• Model NO.：SuperFast 1325
• Name：Name
• Cutting Speed：100-12000 mm,Min
• Cutting Accuracy：±0.5mm
• Control System：F2300b
• General Nesting Software：Startcam
• Drive：Stepper Motor
• Worktable：Blade Worktable
• Height Regulating Distance：≤120mm
• Application：Industrial Metal Cutting Sheet Metal Industry
• Auto Torch Height Controller (Thc )：Automatic
• Transport Package：Wooden Box Package
• Specification：1500*3000mm
• Trademark：Seanior
• Origin：China (Mainland)
• Production Capacity：400 Sets,Year

Basic Info.

Model NO. SuperFast 1325 Name Name Cutting Speed 100-12000 mm/Min Cutting Accuracy ±0.5mm Control System F2300b General Nesting Software Startcam Drive Stepper Motor Worktable Blade Worktable Height Regulating Distance ≤120mm Application Industrial Metal Cutting Sheet Metal Industry Auto Torch Height Controller (Thc ) Automatic Transport Package Wooden Box Package Specification 1500*3000mm Trademark Seanior Origin China (Mainland) Production Capacity 400 Sets/Year

Product Description

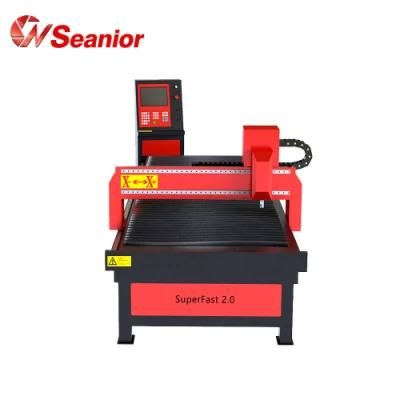

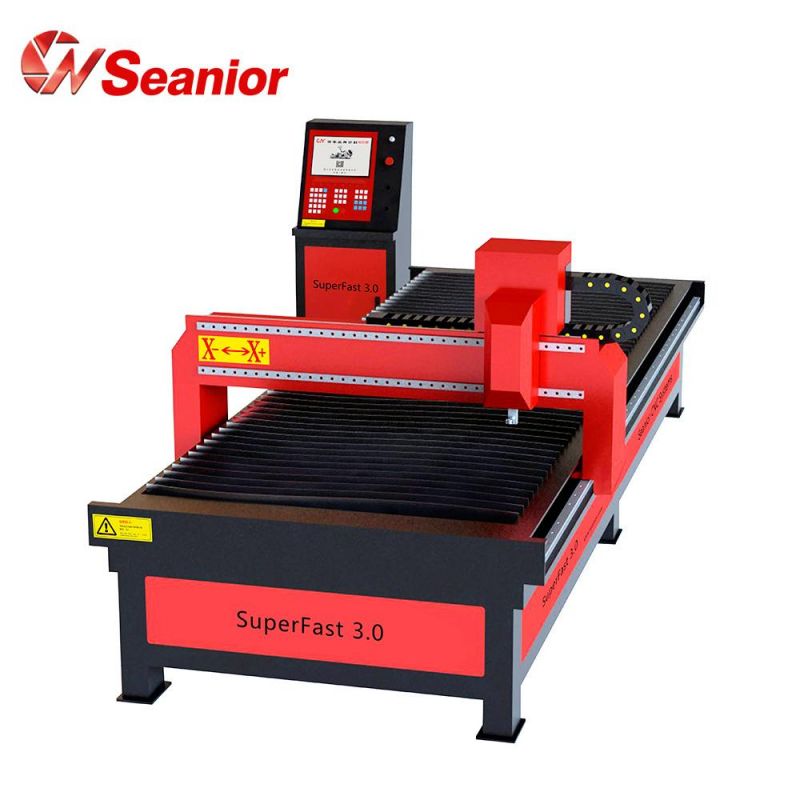

1325 Stainless Steel Aluminum Copper CNC Plasma Cutting Machine
Low cost plasma and cutting machine | Fast, Accurate, Long work hours
 Do you want to cut something great and improve your efficiency with CNC cutting machine?

Are you looking for the high quality plasma/flame machine to cut your metal sheet or pipe and tube at best price?

Are you finding German or American suppliers' offer SO HIGH?


How about a person helps you to solve all the problems and leave you to sit back and relax?




Product Advantages

Compact construction, SuperFast 1540 is your best choice to cut sheet metal at low cost while achieving accurate cutting quality at the same time.

Integrated machine body, sophisticated moving parts and intelligent torch lifter device minimizing non-productive time and guarantee you long period use.

Fast, Accurate, Superior edge quality, SuperFast 1540 cutting table provides superior performance and entry-level price.

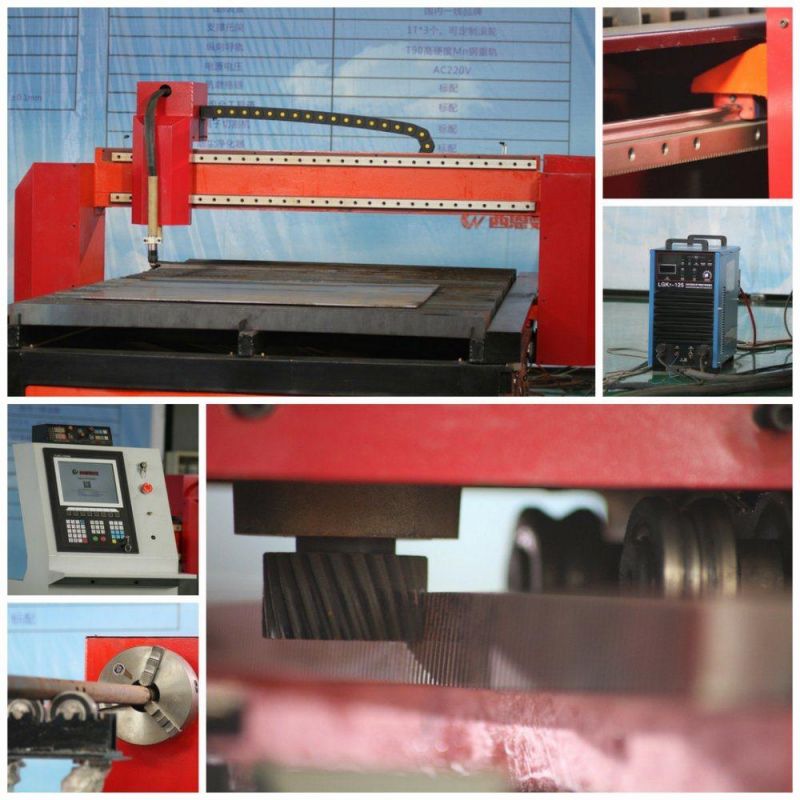

Main Feature

1.Space-saving&Robust Table Mechines

Thanks to the space-saving construction, the plasma cutting table can be installed to your workshop conveniently and quickly.

2.High precision&Reliable Motion Control

High machine repeatbility: linear guidance ensures the parts cut in one area of the table for the exact same as parts cut anywhere else on the table.
Fine bilateral guide rail and quenched gear-rack transmission body improve the operation accuracy and increase wear-resistant ability.

3.Easy to use CNC systems

Adopting industrial leading ARM processor and DSP motion control chip, F2300 numerical control system is simple to use. With menu or graph reminder and multiple languages interface, it applies widely and conveniently.

4.Removable doors

All cutting tables have doors that make it easy for part recovery and waste slag removing.



Technical Parameter


Technical item	Technical parameters
effective cutting width	1500mm
effective cutting length	4000mm
torch lifter vertical traveling distance	≤150mm
cutting precision	±0.5mm
cutting speed	100-12000 mm/min
linear repeating accuracy	±0.2 mm
lineation accuracy	±0.2 mm
rail track installation accuracy	side linear straightness: ±0.1mm
parallelism of the lengthwise and the horizontal surface	±0.1mm
metal to cut	mild steel, stainless steel, alloy, aluminum, copper, titanium and other non-ferrous metal

Machine configuration


cutting method	plasma cutting
movement rail track	double axle linear rail track
movement motor/motion controller	full digital servo motor/high-precision stepping motor
distance-adjusting system	plasma arc voltage automatic height adjustment
control system	industrial anti-dust numerical control
general nesting software	Pronest,Starcam,Fastcam
anti-collision system	360°anti-collision protection method
elevating body	ball screw / electronic push rod
plasma cutter	USA brand or China HUAYUAN LKG series or Customized
dust and fume extractor	fan machine
connecting power source	plasma power supply AC380V/50HZ, machine body power supply AC220V/50HZ

Seanior CNC Systems

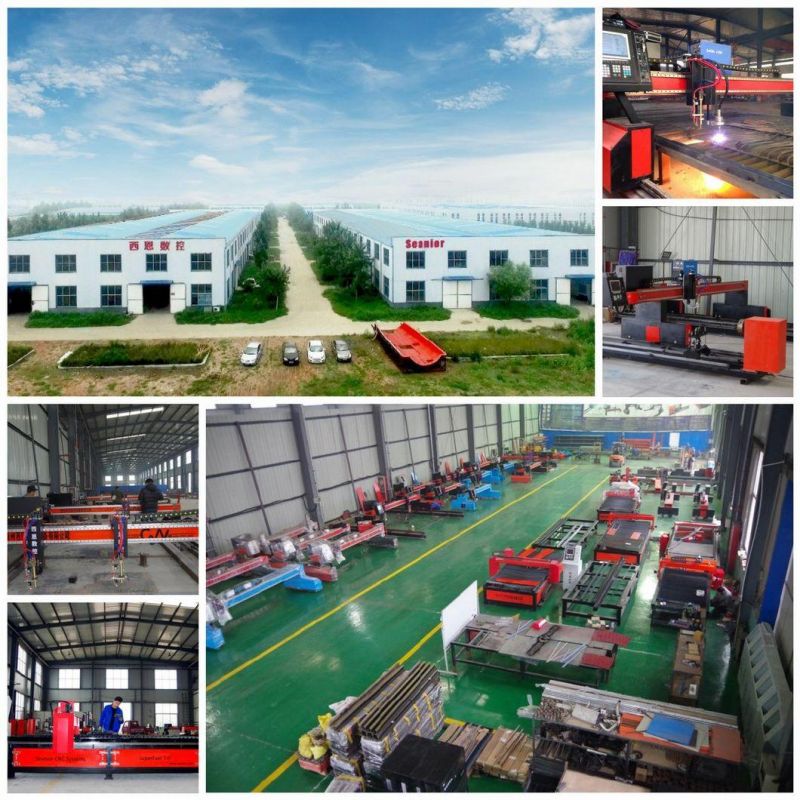

Established in2014, Seanior has enjoyed an expanding growth successfully and become a dynamic company focusing on building CNC cutting machines applied in different industries.
Seanior was first imagined as a brand in mind with a man named Sean working with our machine effortless and confidently .We aim to make great machines available to workshops strive for high efficiency and low cost.



Packing & Delivery

Stand exporting packing

1.Outside package:Standard marine export plywood cases for cnc plasma cutting  machine table.

2.Inner package:Stretch film and plastic film for humidity.

3.Package size is 4080*2430*2000mm.

4.We can package according to your requests.
