• Model NO.：ML-1325P
• Layout：Vertical
• Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
• Automatic Grade：Automatic
• Power Source：Plasma Welder
• Cutting Mode：Plasma Cutting
• Transport Package：Standard Export Package
• Specification：15 CBM
• Trademark：MINGLAN
• Origin：China
• HS Code：8456401000
• Production Capacity：5000000 Sets Per Year
• Package size per unit product：390.00cm * 220.00cm * 210.00cm
• Gross weight per unit product：1200.000kg

Basic Info.

Model NO. ML-1325P Layout Vertical Cutting Material Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel Automatic Grade Automatic Power Source Plasma Welder Cutting Mode Plasma Cutting Transport Package Standard Export Package Specification 15 CBM Trademark MINGLAN Origin China HS Code 8456401000 Production Capacity 5000000 Sets Per Year

Packaging & Delivery

Package size per unit product 390.00cm * 220.00cm * 210.00cm Gross weight per unit product 1200.000kg

Product Description

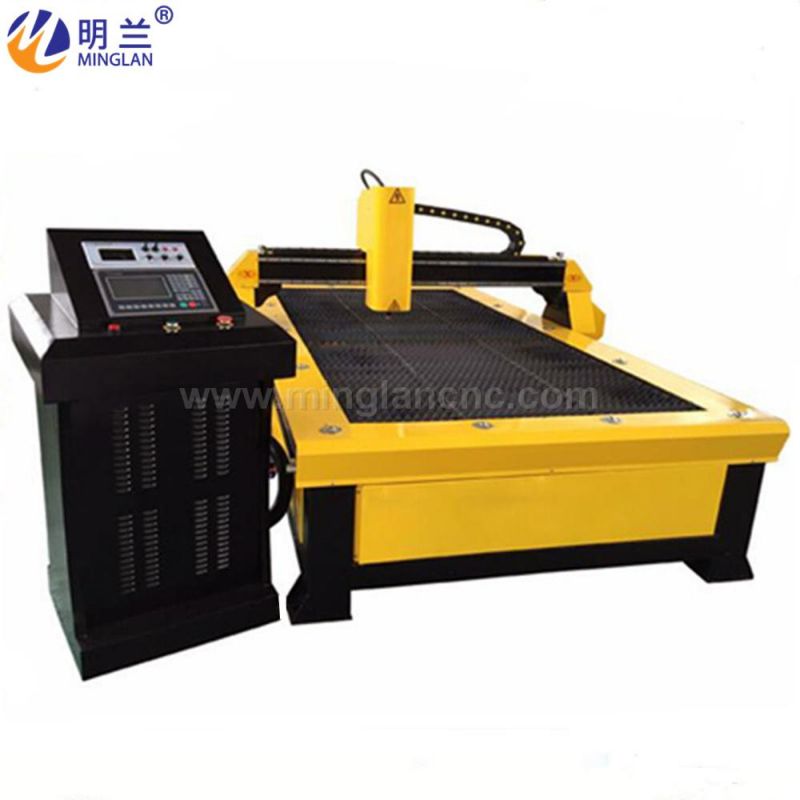

High Accuracy CNC Plasma Cutting Machine for Metal Sheet CNC Plasma Cutter Machine

Features
1. The plasma cutting machine can cut all kinds of metals that are difficult to cut by oxygen, especially for non-ferrous metals (stainless steel, aluminum, copper, titanium, nickel). The main advantage is that when cutting metals with a small thickness, The plasma cutting speed is fast, especially when cutting ordinary carbon steel thin plates, the speed can reach 5-6 times that of the oxygen cutting method, the cutting surface is smooth, the thermal deformation is small, and there is almost no heat-affected zone.
2. The frame adopts a welded large steel pipe structure, which is firm and non-deformable, easy to operate, and durable.
3. The cutting speed is fast and the precision is high. The cutting opening is small, neat, and there is no slag drop phenomenon. On the basis of the traditional numerical control system, the control method for cutting is improved, and the secondary trimming processing is avoided.
4. The CNC system has a high configuration. Automatic arc ignition, stable performance, and the success rate of arc ignition is over 99%.
5. Support standard G code path files generated by Wentai, Beihang Haier, ARTCAM, Type3 and other software. The control system adopts U disk to exchange processing files, which is convenient and quick to operate

Main configuration:
1. Imported linear square guide rails, double-row and four-row ball sliders, large bearing capacity, balanced operation, high precision and long life.
2. Adopt the LCD display Start control system.
3. Non-contact arc sub height adjustment device.
4. The drive system is a domestic stepper drive.
5. Huayuan, Haibao, American-imported Fermat plasma laser power supply are optional, which can cut 0.5-25mm thick metal plates.

Application of MINGLAN cnc plasma cutting machine,

Plasma cutting machine Cutting materials--- All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.

Applicable industries and materials:
Plasma cutting machines are widely used in automobiles, locomotives, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structures and other industries. They are suitable for steel plates, copper plates, iron plates, aluminum plates, galvanized plates, and titanium plates , sheet metal cutting.

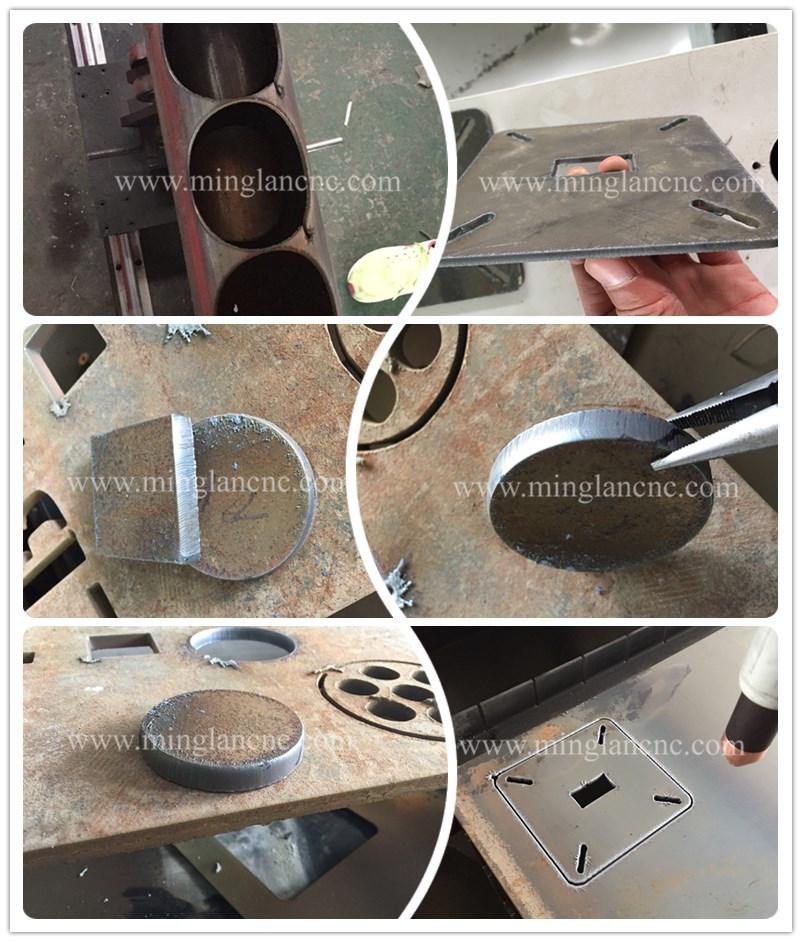

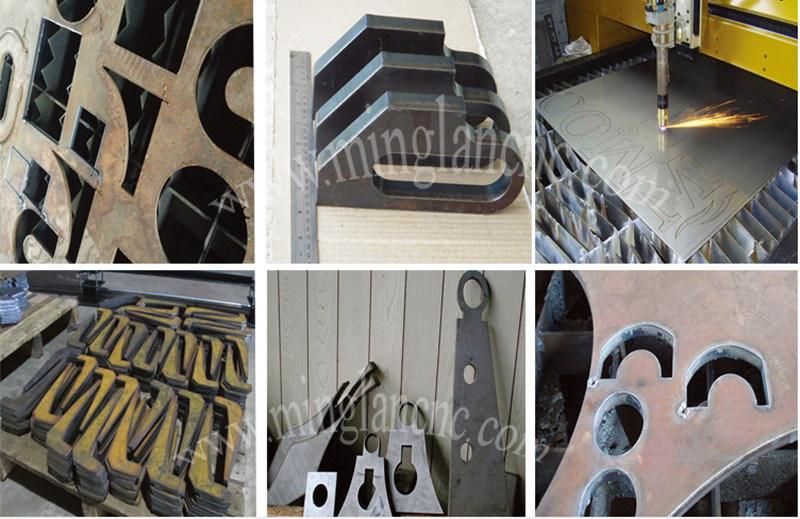

Cutting samples photos of MINGLAN cnc plasma cutting machine as follow,

Technical parameter of MINGLAN cnc plasma cutting machine:
Model: ML-1325
Working Area:1300x2500mm
Cutting speed: 8-15m/min
Repeat positioning accuracy: ±0.05mm
Process precision: ±0.35mm
Motor: step motor
Cutting thickness: 0-30mm (depends on power supply)
Power: 8.5KW
Transmission model: Gear rack drive
Input voltage: 3 phase 380V
Power supply: Hypertherm power supply/ Huayuan Power supply
Plasma current: LGK-63A.100A,160A,200A USA welder --65A,85A,105A,200A
Cutting system: Beijing Start cutting system (English)
Transmission system: X,Y Taiwan Hiwin high-precision, zero clearance increased linear guide+ rack
Support drawing software--CAD
nesting software--Australia fastcam
ctting path file--artcam, type3 etc
Guide way:Imported square rail
Table-board:Steel blade saw tooth mesa Steel blade saw tooth mesa:
Ray plug drives 860 (Sino-us joint venture large drives)
Working mode: Non-contact arc

Different power machine can cut different thickness metal, price is different, details as follow:

1. China HUAYUAN brand welder,
63A or HUARONG 63A welder, cut less than 5mm metal,(Machine with DSP control system only can cut less than 2mm metal;)
HUAYUAN 100A cut less than 12mm carbon steel, 6mm stainless steel,
HUAYUAN 120A cut less than 18mm carbon steel, 10mm stainless steel.
HUAYUAN 160A cut less than 25mm metal, less than 15mm stainless steel.
HUAYUAN 200A cut less than 30mm carbon steel and aluminum, stainless steel less than 20mm,
HUAYUAN 300A cut less than 35mm metal.

2. Import USA welder,
45A cut less than 8mm carbon steel, Stainless steel 5mm;
65A cut less than 12mm carbon steel, Stainless steel 8mm;
85A cut less than 16mm carbon steel, Stainless steel 12mm;
105A cut less than 20mm carbon steel, Stainless steel less than 14mm;
125A, cut less than 25mm carbon steel, Stainless steel less than 16mm,
200A cut less than 32mm carbon steel, Stainless steel less than 22mm,

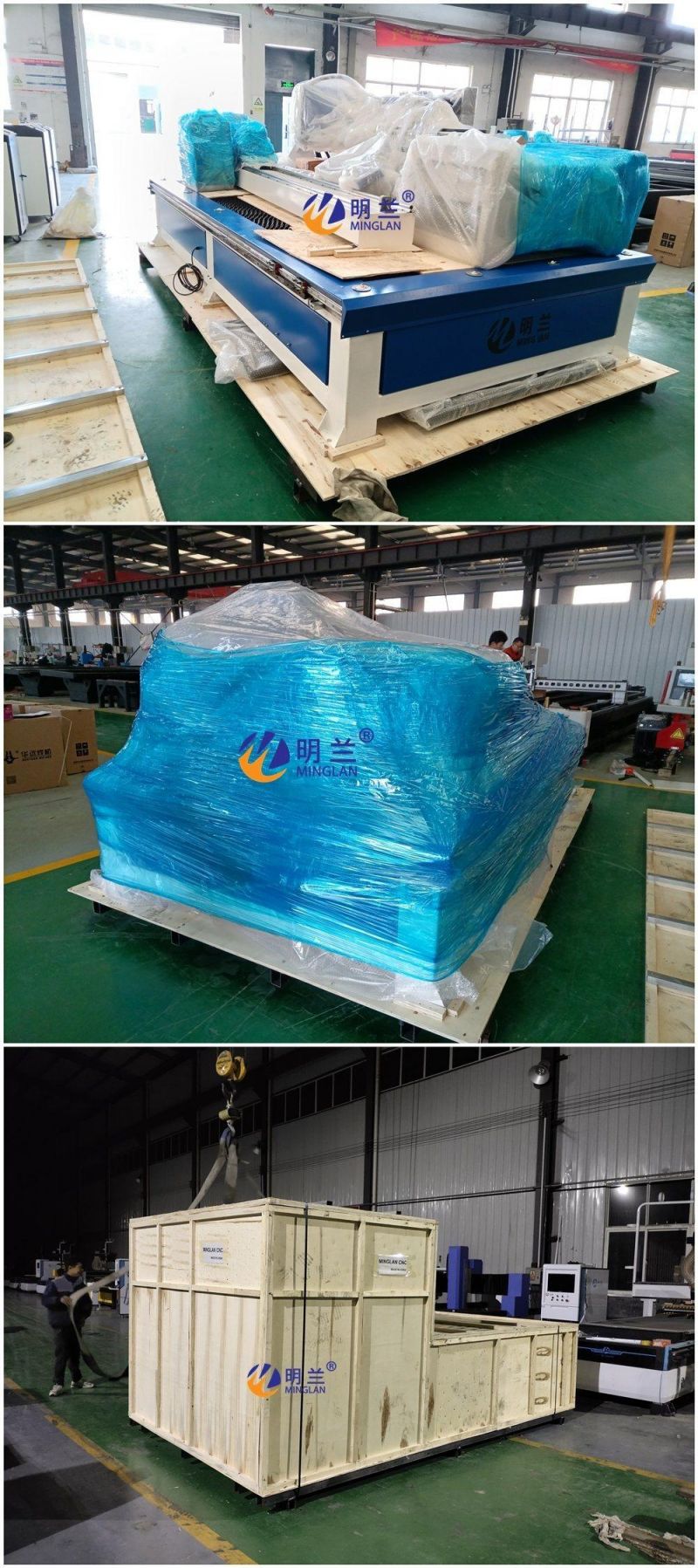

Standard export package:
Plywood package.

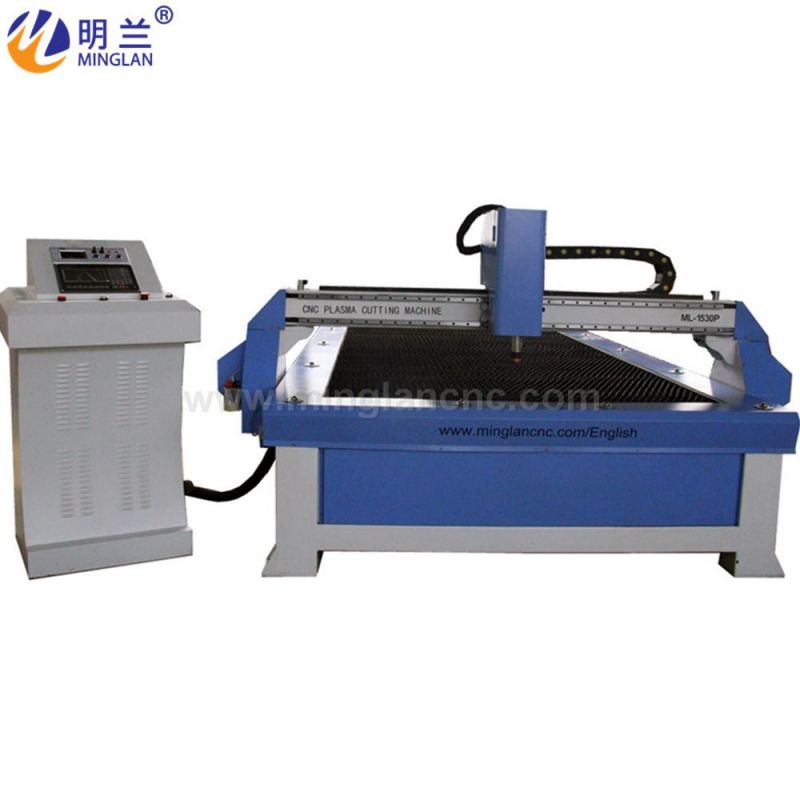

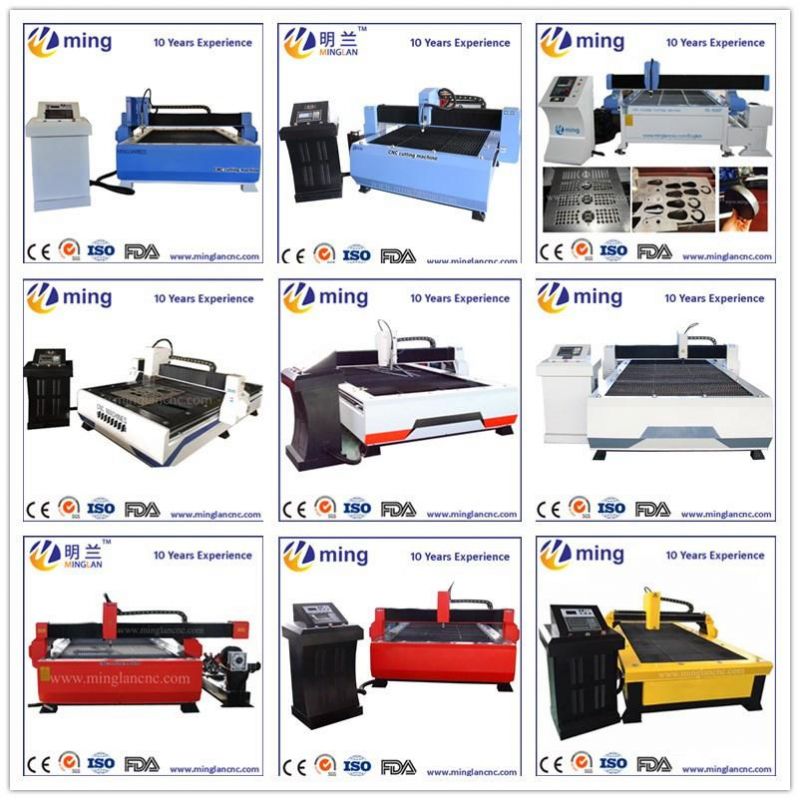

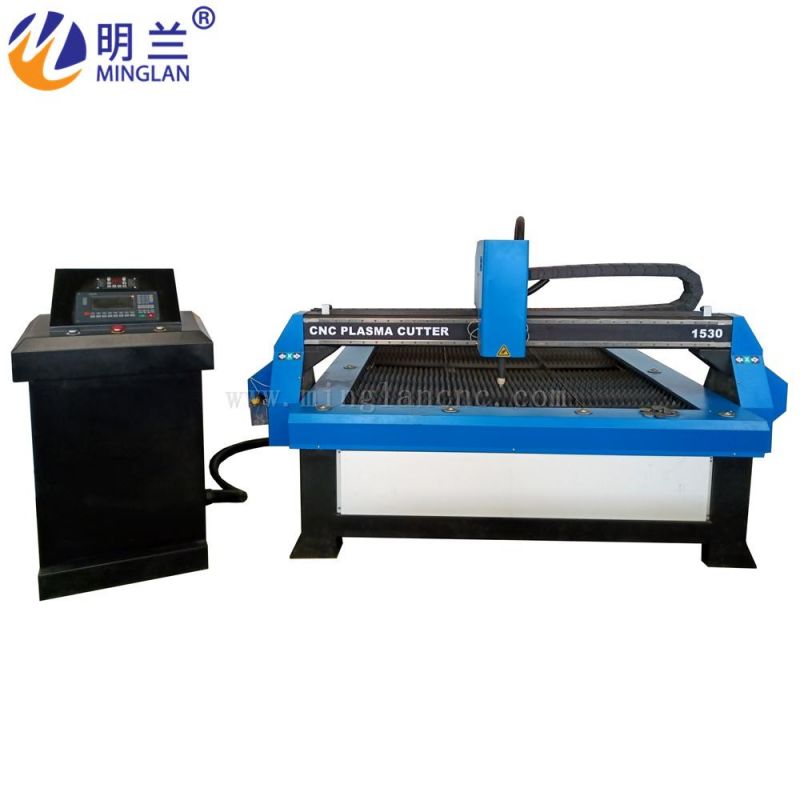

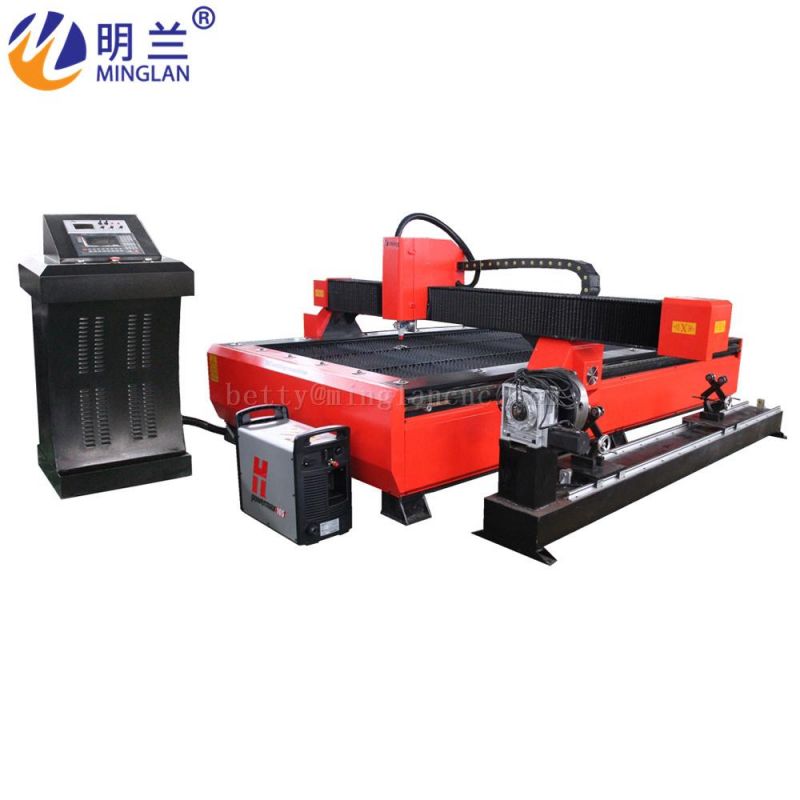

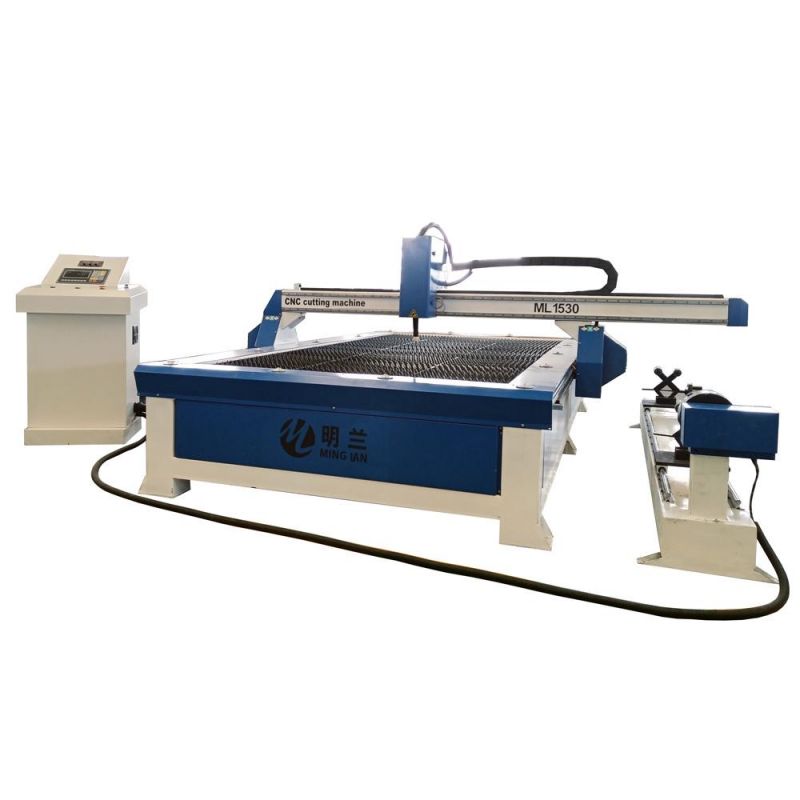

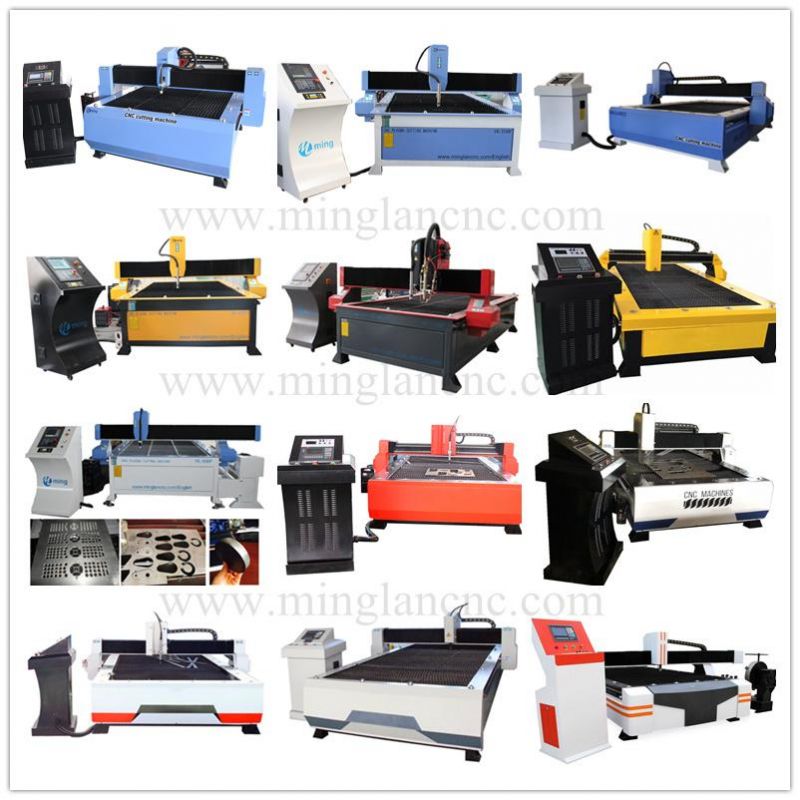

More models of MINGLAN cnc plasma cutting machine for your choose,
