12 Axes CNC Spring Forming Machine Wire Rotating Machine

Dongguan Hua Yi Da Spring Machinery Co., Ltd.
  • After-sales Service：Online, Video Support
  • Control Type：CNC
  • Axis Count：12-16 Axes
  • Warranty：1 Year
  • CNC：Arcuchi
  • Spring Winding Ratio：1 : 5

Base Info

  • Model NO.：60T-12A
  • Wire Feeding Wheel Groups：4
  • Machine Size：4200*2100*2350
  • Lead Rail Stroke：200mm
  • Certificate：CE
  • Transport Package：Wooden Case
  • Specification：6000kgs
  • Trademark：HYD
  • Origin：Dongguan, China
  • HS Code：8463300000
  • Production Capacity：60 Sets,Year

Description

Wire Size Range                 low carbon steel:3-8mm   high-carbon steel:2-6mmLead rail stroke                            distance of 200mmWire feeding wheel groups                         4 Max Feeding speed                        80m/minMaximum error                            ±0.1(length)Control system+decoiler                    1 setServo motor power                         51.2KWReducer                                  11pcsMinimum length of angel                    4 times wire diameterMachine  size4200*2100*2350mmMachine  weight                          6000kg

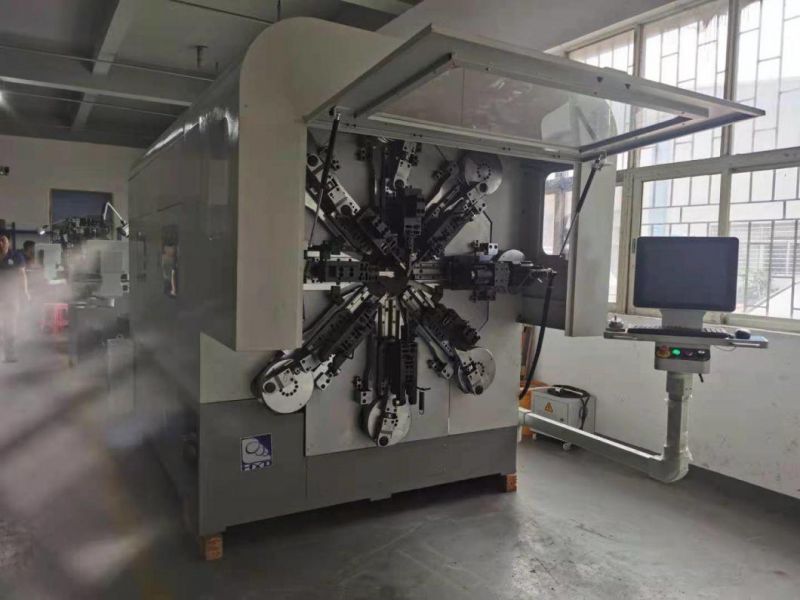

12 Axes CNC Spring Forming Machine Wire Rotating Machine

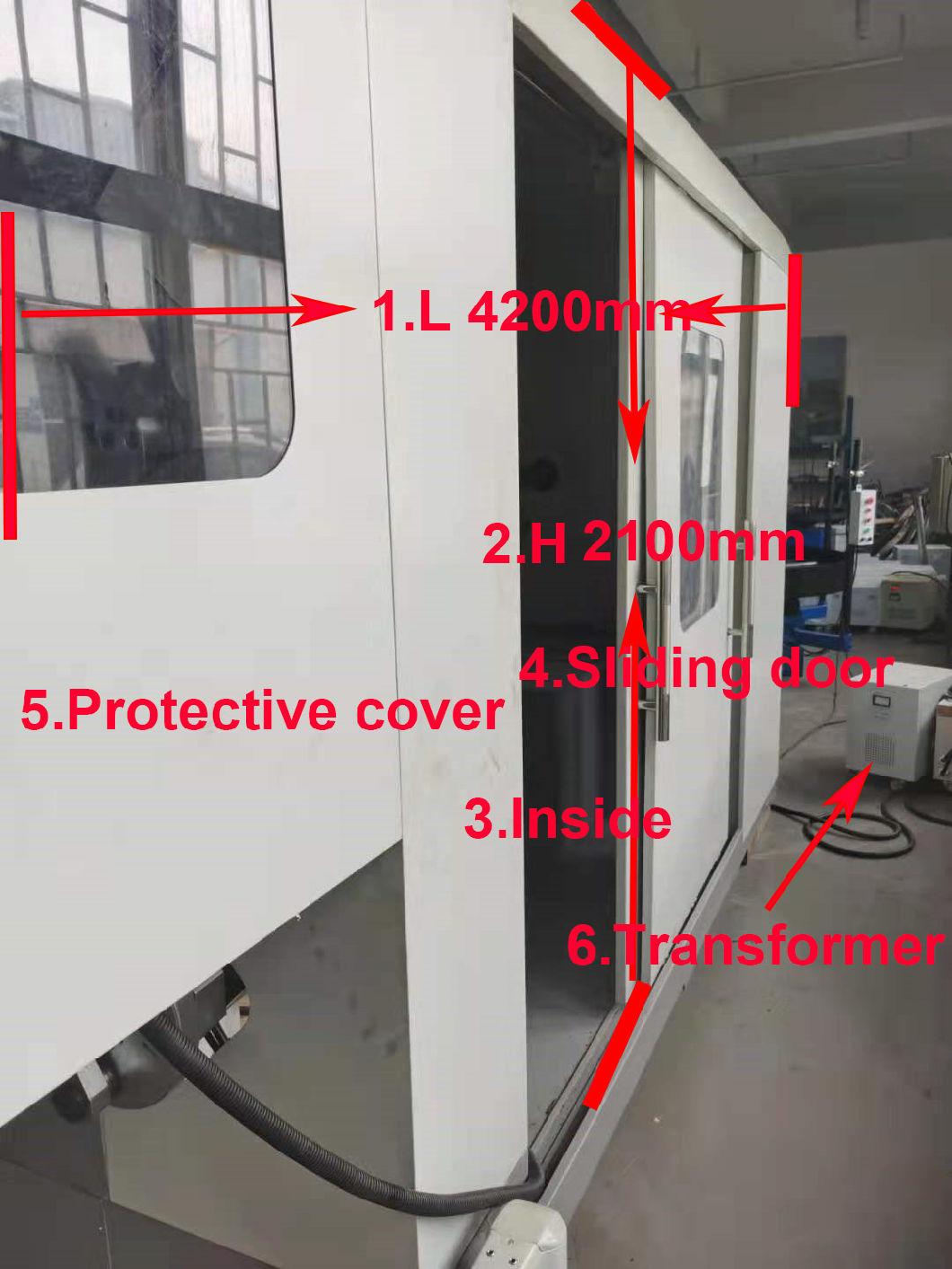

 12 Axes CNC Spring Forming Machine Wire Rotating Machine1. Length 4200mm

2. Inner height is 2100mm.

3. Space inside is large enough to stand a few people.

4. It is fixed with sliding doors, will not take up space.

5. Protective cover is for reducing noise, protecting

production.

6. Equipped with transformer that is suitable for many

different voltage scenarios.
3. Packing and deliverying

Packing: wooden case

Deliverying: within 45-60 days after down payment

12 Axes CNC Spring Forming Machine Wire Rotating Machine
4. FAQ

1.How can you help me to use the machine?

We will commission machine well, make samples, and take videos for customers;

Training free 1 week in sales factory, paid if need field training;

Also, Online supporting or video technical supporting could be supplied.

2.How can I know that you supply cost-effective solutions?

Machine will be suggested with your spring requires and budget.

Providing the most suitable plan for reference.

5. About us

12 Axes CNC Spring Forming Machine Wire Rotating Machine
12 Axes CNC Spring Forming Machine Wire Rotating Machine
6. Customers

Training
12 Axes CNC Spring Forming Machine Wire Rotating Machine
Discussing with customer
12 Axes CNC Spring Forming Machine Wire Rotating Machine
