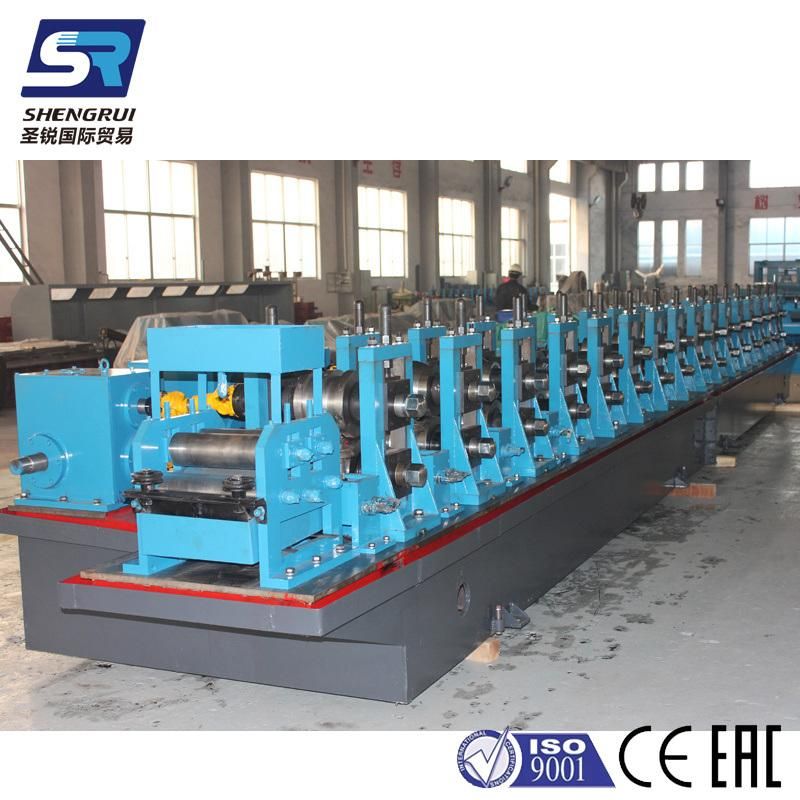

High Speed Welded Square Pipe Roll Forming Machine
Suzhou Shengrui International Trading Co.,Ltd- After-sales Service：After-Sale Services
- Warranty：12 Months
- Rolling Shape：Pipe
- Product：Profile, Rolling Beam
- Roller Position：Customzied
- Roller Number：According to The Profile You Need.
Base Info
- Model NO.：ZY-HF20
- Layout：Customized
- Type：Cold Rolling Mill
- Material of Strip：Galvanized Steel, Carton Steel,Stainless Steel
- Width of Raw Material：30mm-90mm
- Round Pipe Outside Diameter：10-26mm
- Round Pipe Thickness：0.3- 1.5mm
- High Frequency Induction Welder Power：100kw
- Voltage：380V, 50Hz, 3 Phase
- Production Speed：0-90m,Min
- Material Tray Inner Diameter：508mm
- Diameter of Shaftmm：38mm
- Diameter of Shaft：25mm
- Material of Shafts：42CrMo (Quenching and Tempering)
- Material of Roller：Cr12
- Power of Driving Motor：11kw
- Model：Zy-Hf20
- Power of Feeding Motor：1.8kw
- Transport Package：Container or Wooden Case.
- Specification：Customized
- Trademark：Zhangyun
- Origin：Zhangjiagang City
- Production Capacity：15 Sets,Month
Description

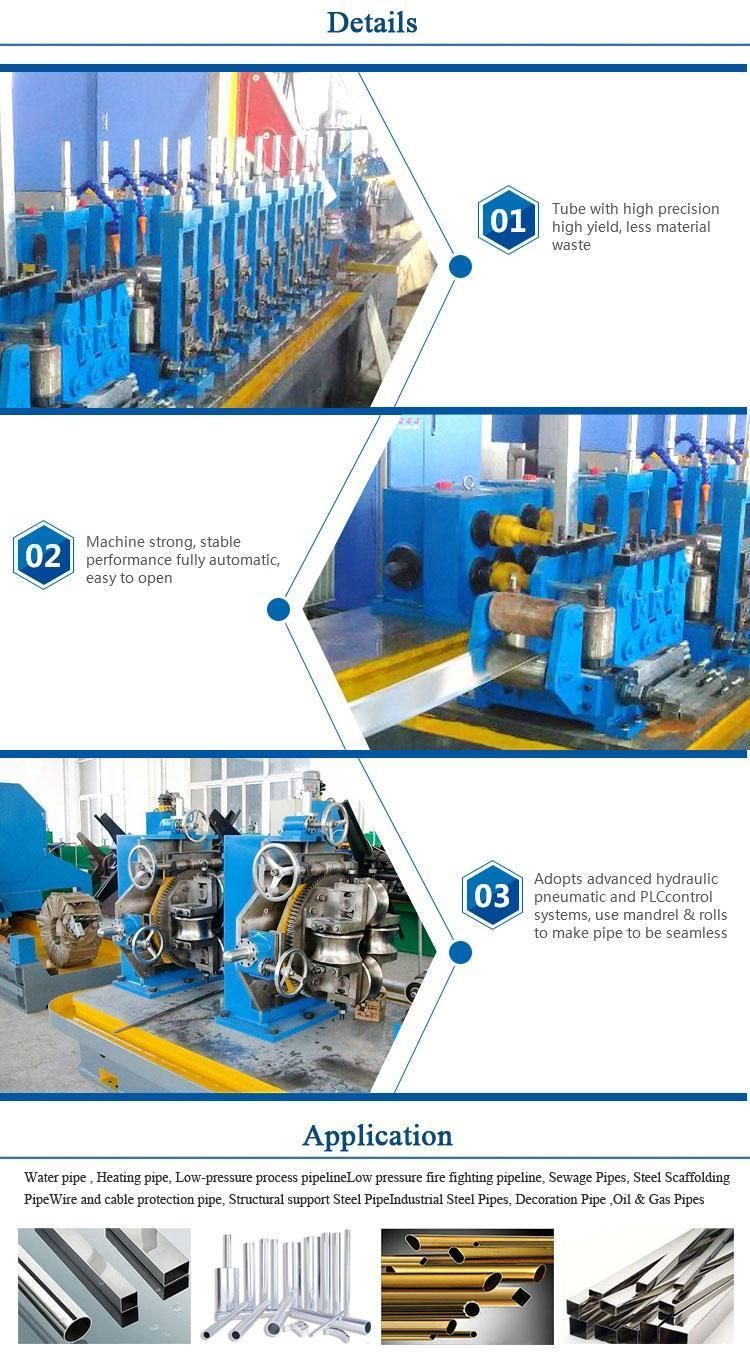

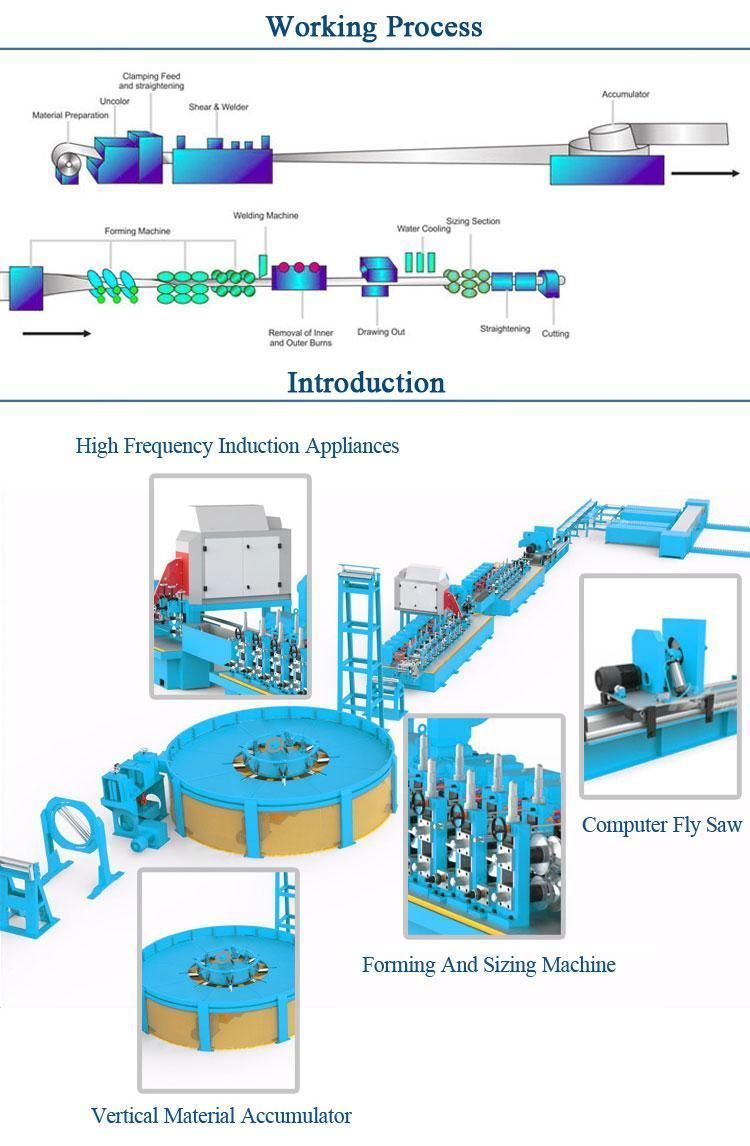

ZY-HF20 Type Manufacturer high speed high frequency pipe welding production line is specialized equipment to produce high frequency straight seam welded pipe for structural pipe and industrial pipe with Φ10~Φ26mm and wall thickness of δ0.3-1.5mm. Through optimization design, best materials choice, and accurately fabrication and rolls, the whole line can be reached high precision and high speed. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted.
, mm
Company Information
FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: What is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
Warmly welcome to visit our factory Zhangyun Machinery
