• Model NO.：as the drawing
• Transport Package：Woodern Case
• Specification：Export package
• Trademark：FANGLE
• Origin：China
• Production Capacity：20000tons,Year

Basic Info.

Model NO. as the drawing Transport Package Woodern Case Specification Export package Trademark FANGLE Origin China Production Capacity 20000tons/Year

Product Description

Stabilizer Roller Used for Continuous Hot Dip Galvanizing Line to Get High Qualified Galvanized Products

Description
In the metallurgy industry, in order to get high qualified galvanized products, stabilizer rolls play very important role in the continuous hot dip galvanizing line. Stabilizer roll is one of the three rolls in CGL (continuous galvanizing line); Along with other two rolls, sink roller and back-up roller, they are the main composition of continuous galvanizing line.

Working condition : Working temperature is 500ºC-700ºC. Cooperated with stabilizer roll, agitating molten zinc liquid to the surface of plate. The surface structure and quality of the sinking roller will directly affect the galvanizing quality of the sheet and affect its service life. Therefore, the sinking roller is one of the key factors determining the production quality and production efficiency of the galvanizing line.

Products Process:
The manufacturing method of the stabilization roll includes the following steps:
1) Casting roller body;
2) Processing roller and roll shaft;
3) TIG welding is used to weld the roll shaft to both ends of the roller, and the preheating temperature before welding is 200 to 230 ° C;
4) Immediately after welding into the furnace stress relief annealing + stabilization treatment;
5) Heat treatment: annealing + quenching + tempering.
The stability roller manufactured by the invention has good comprehensive mechanical properties, especially wear resistance, and long service life.

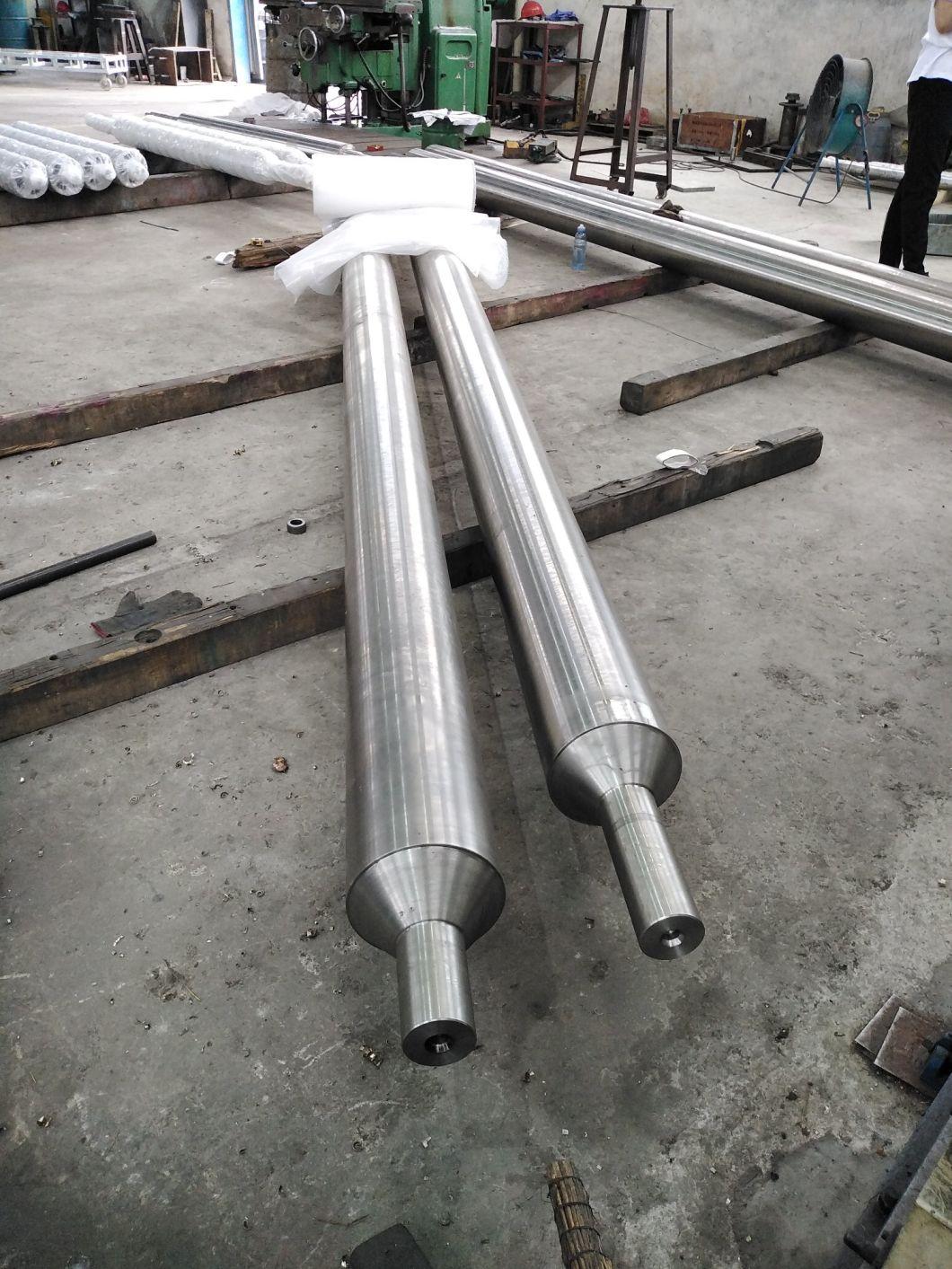

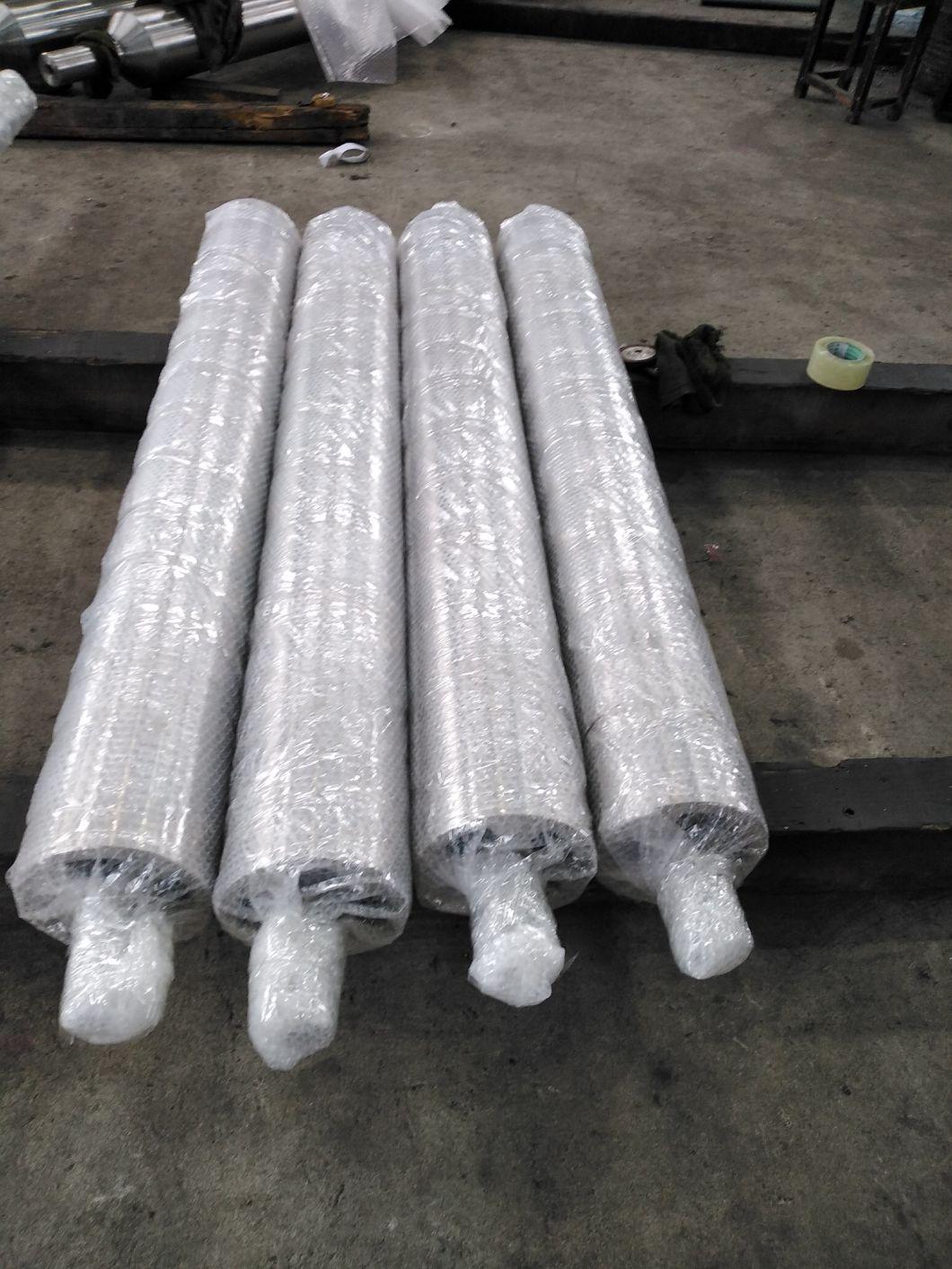

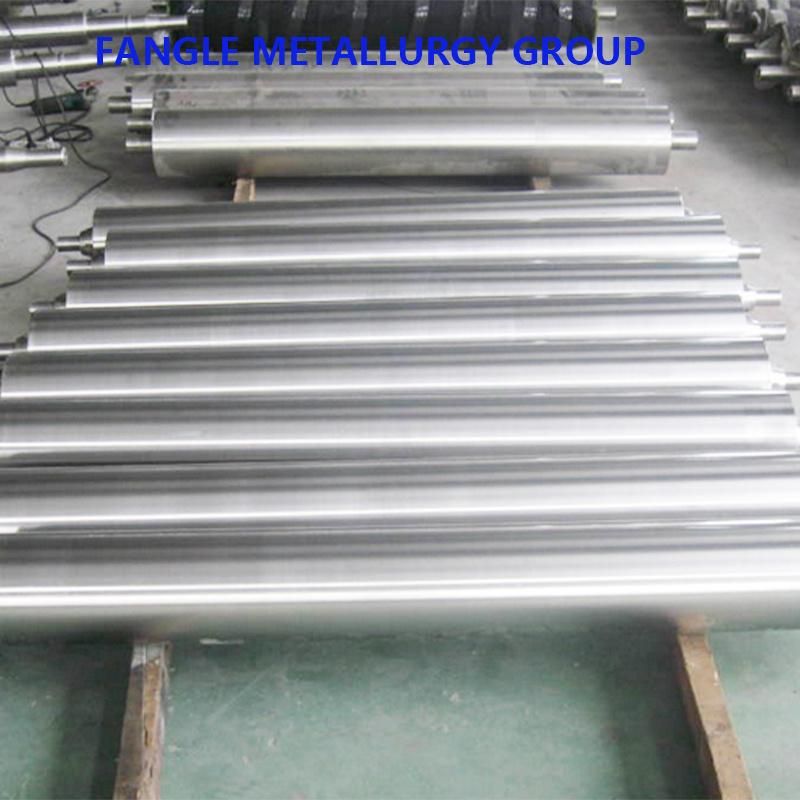

Products show





Customer Visit
