• Model NO.：SF-100KW
• Trademark：ORD
• Origin：China
• HS Code：8514400090
• Production Capacity：10, 000sets

Basic Info.

Model NO. SF-100KW Trademark ORD Origin China HS Code 8514400090 Production Capacity 10, 000sets

Product Description

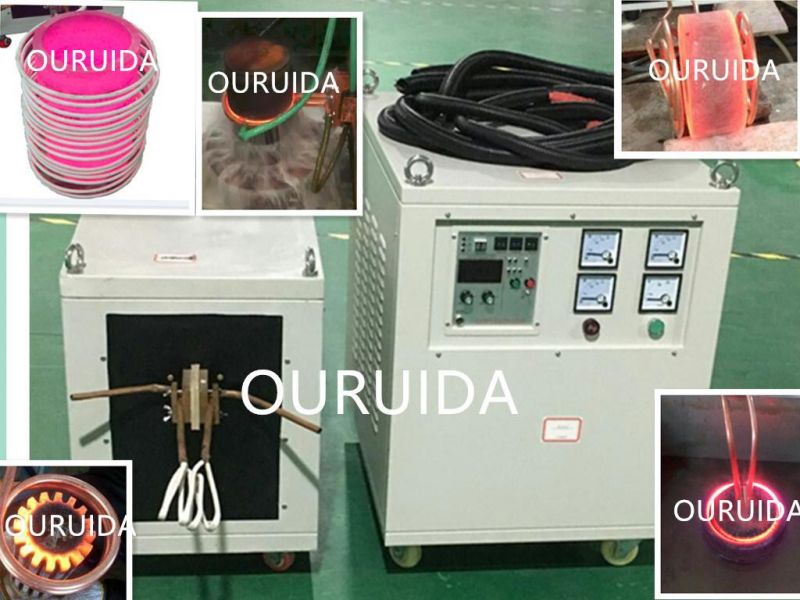

Induction Heating Machine:
Advantage:
1 More than 17 years experience, stable and goods performance
2 CE certificated
3 Copperated with Chow Tai FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.

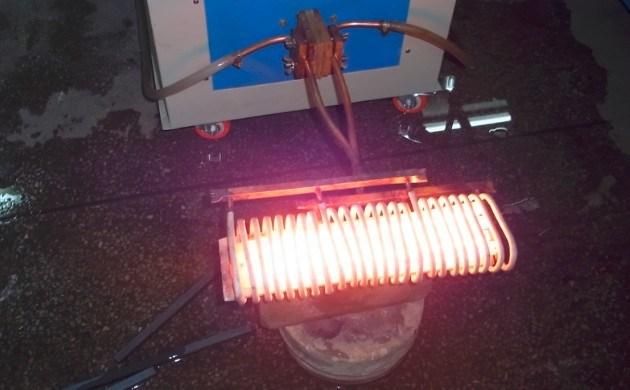

4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.

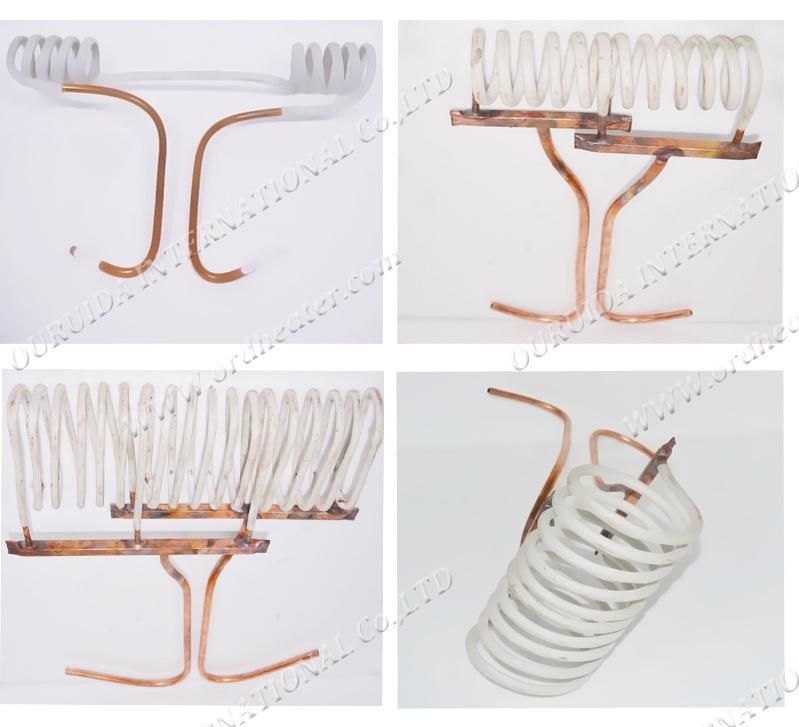

5 Two transformer ratios, can match better different length induction coil


Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

Type	SF-100AB
Work Power	3*380v/415v/440v/480v  50-60hz
The range of operating voltage	340-430V AC
Output power	100KW
Input current	150A
Fluctuating frequency	20-50khz
Timing (Heat time,Retain time,Cool time)	1-99S
The flow rate of cooling water	0.15 Mpa 20L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)

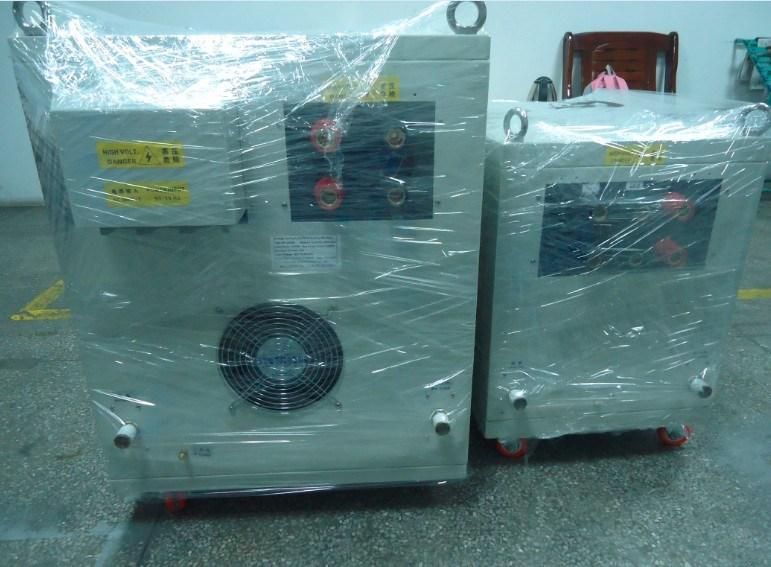

Weight	Mainparts:120Kg    Transformer:95kg
Size	Main Parts:800*600*800MM Transformer: 650*450*600MM
