Automatic Adjustable Forming C Purline Equipment (C60-250)
Xiamen Xinhonghua Machinery Co., Ltd.- Certificate：Ce SGS
- Usage：Metal Purlin
- Operate Model：Automatic Adjustment
- Punch Way：Hydraulic Punching
- Controller：PLC Computer
- Speed：6-25m,Min
Base Info
- Model NO.：C60-250
- Transport Package：Standard Package for Export
- Specification：6000kg
- Trademark：XHH
- Origin：Xiamen
- HS Code：8455229090
- Production Capacity：20sets,Month
Description
Basic Info.
Model NO. C60-250 Transport Package Standard Package for Export Specification 6000kg Trademark XHH Origin Xiamen HS Code 8455229090 Production Capacity 20sets/MonthProduct Description

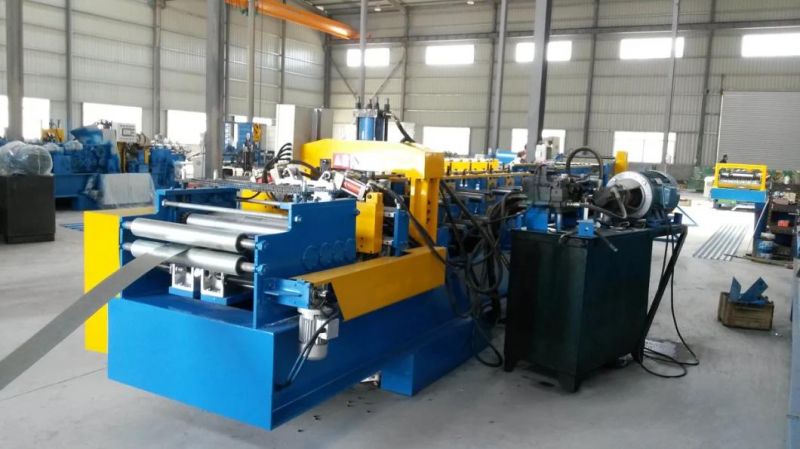

Automatic adjustable forming C Purline Equipment (C60-250)
Weight: 6000kgs
Voltage: 380V
Forming Speed: 14m/Min

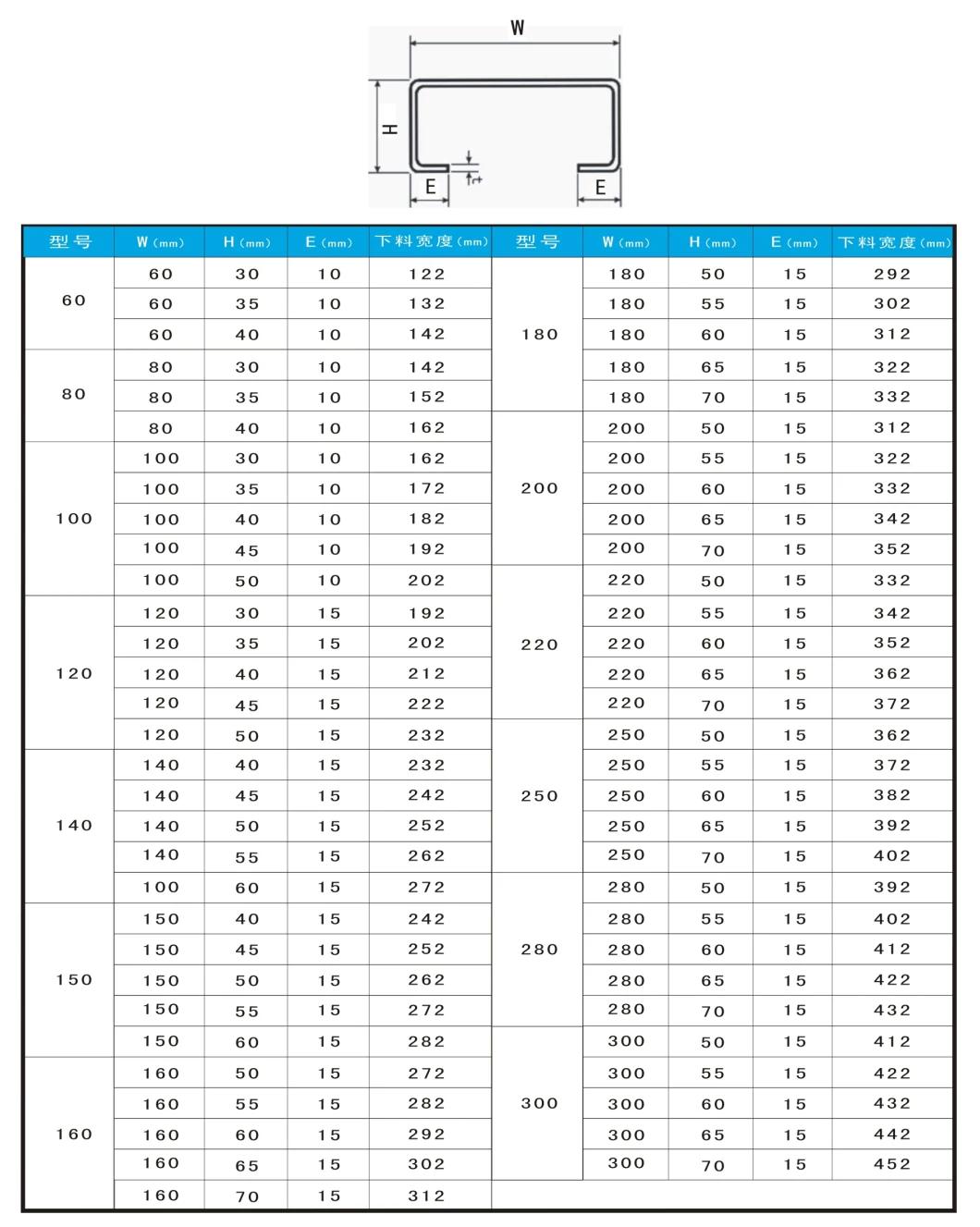

Height of C-Shape Purline: 30mm to 70mm
Material: Galvanized Coils
Origin: Xiamen of China
Motor Power: 18.5kw+0.75kw*2
Forming Steps: 16
Material Thickness: 1.0-2.5mm
Width Fo C-Shape Purline: 60mm to 250mm
Trademark: XHH
HS Code: 8455229090
Feature:
(1). Forming Speed: 10-14m/min;
(2). Can Produce a Great Variety of Model;
(3). The Construction Machine Control by PLC Computer Controlling System, Easy to Set and to Operate.
Main Accessories:

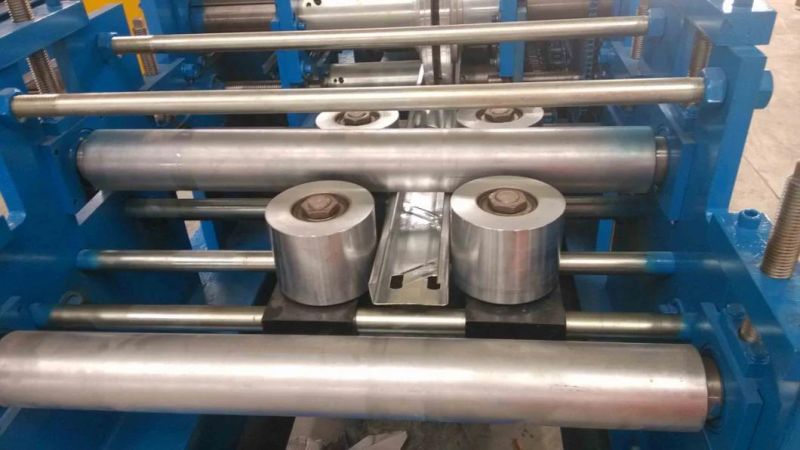

(1). Main Purline Forming Machine;
(2). 3 Tons Manual Uncoiler;
(3). Guide Device;
(4). Hydraulic Pre-cutting Device;
(5). PLC Computer Controlling System With Touch Screen;
(6). Tools;
(7). Operation Manual.
| 1. | Motor Power | 18.5KW |
| 2. | Motor for changing models Power | 0.75KW*2 |
| 3. | Forming Steps | 16 |
| 4. | Working Speed | 14m/min |
| 5. | Material Thickness | 1.0-2.5mm |
| 6. | Height of C-shape Purline | 30mm to 70mm |
| 7. | Width of C-shape purline | 60mm to 250mm |
| 8. | Material | Galvanized coils |

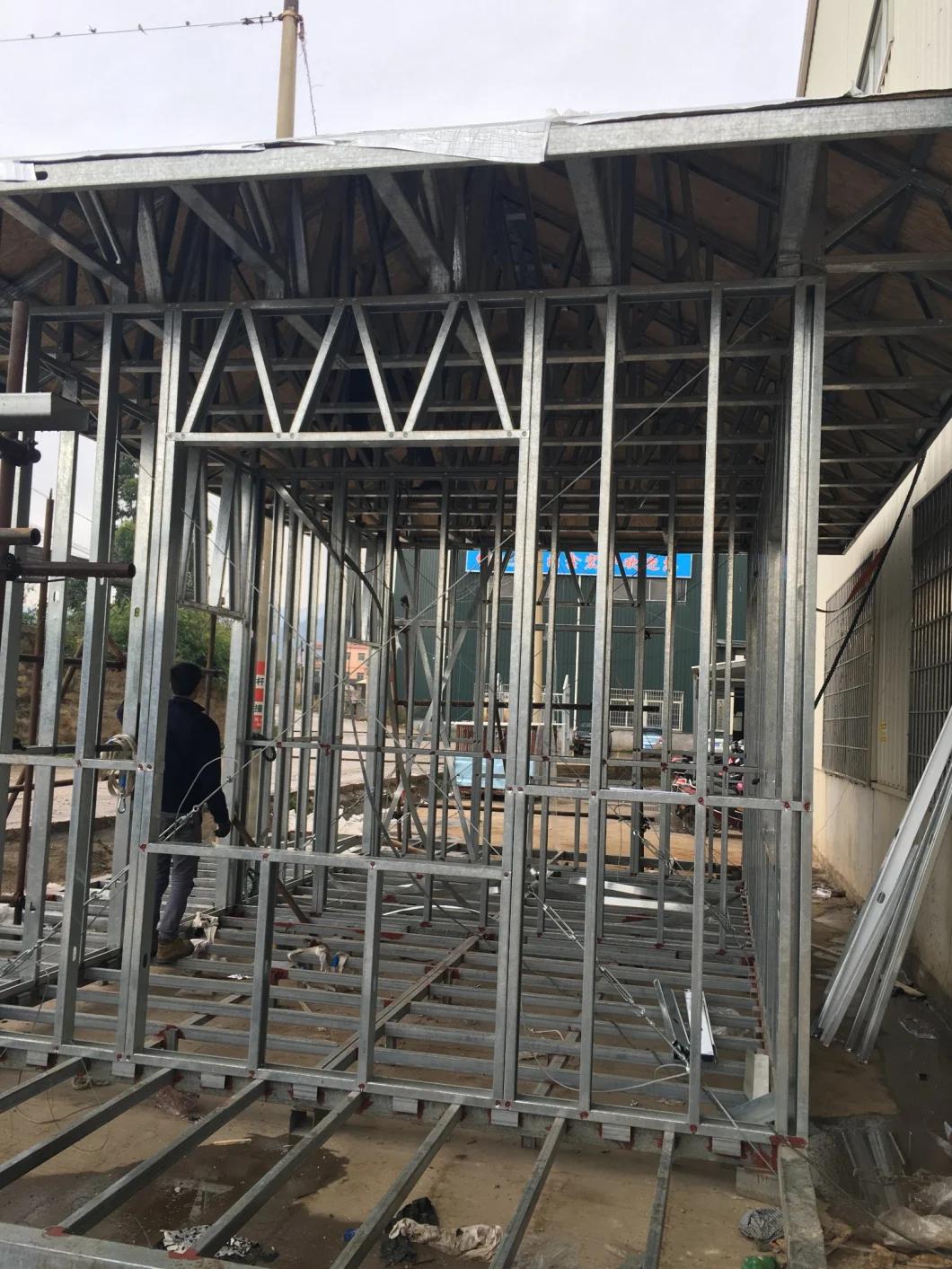

| 9. | Usage | C purlines for steel structure of building projects |
