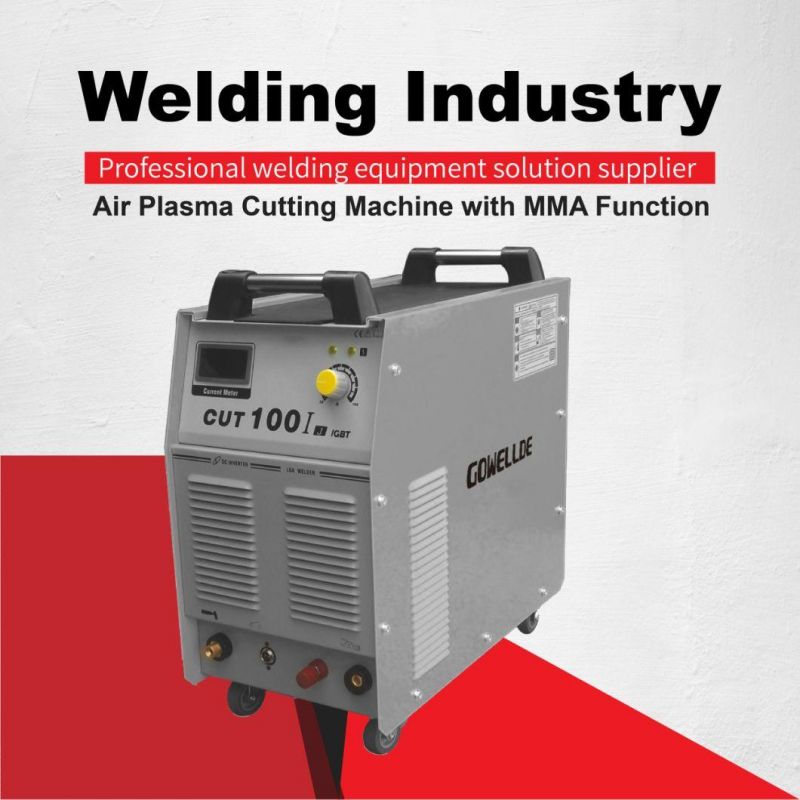

Cut Welder Air Plasma Cutting Machine Cut 100

Shenzhen General Welder Technology Co., Ltd.
  • Customized：Non-Customized
  • Layout：Vertical
  • Cutting Material：Copper, Carbon Steel, Iron, Metal Alloy, Stainless Steel
  • Automatic Grade：Semi-Automatic
  • Power Source：Electric
  • Cutting Mode：Plasma Cutting

Base Info

  • Model NO.：cut100
  • Model Number：Cut100 or as Your Demands
  • Main Technology：IGBT Inverter Technology
  • Real Current(a)：100
  • Color：Any Color You Wanted
  • Package：Plain or Colorful Carton
  • Dimention of Carton(mm)：570*325*520
  • Workpiece Thickness(mm)：1.0-40.0
  • Base Material：Carbon Steel,Stainless Steel,Low-Alloy Steel
  • Warranty Time：1 Year
  • Transport Package：Standards Sea Carton or Customized
  • Specification：CE
  • Trademark：N,M
  • Origin：Shenzhen, Guangdong China
  • HS Code：8456901000
  • Production Capacity：as Order

Description

TypeCUT100control modeIGBT inverterRated input voltageAC380VRated input current(A)22Rated input capacity(KVA)14.5Rated output current(A)100Cable cross-sectional areamains input(mm2)4power output(mm2)16ground wire(mm2)4Rated output voltage(V)120Duty cycle(%)100Rated no-load voltage(V)285Current adjustment range(A)30-100Quality cutting thickness (carbon steel)(mm)1~30Maximum cutting thickness (carbon steel)(mm)35Using plasma gasCompressed airGas pressure range(MPa)0.4-0.5Applicable air compressor capacity(m3)≥0.3Arc ignition modeHigh pressure non-contactEnclosure ratingIP21SInsulation ratingFCooling methodAirPower factor0.93Dimensions(mm)510*265*500Host weight(KG)40

Cut Welder Air Plasma Cutting Machine Cut 100
Cut Welder Air Plasma Cutting Machine Cut 100

Cut Welder Air Plasma Cutting Machine Cut 100Cut Welder Air Plasma Cutting Machine Cut 100Cut Welder Air Plasma Cutting Machine Cut 100Cut Welder Air Plasma Cutting Machine Cut 100
Cut Welder Air Plasma Cutting Machine Cut 100Cut Welder Air Plasma Cutting Machine Cut 100Cut Welder Air Plasma Cutting Machine Cut 100Cut Welder Air Plasma Cutting Machine Cut 100Cut Welder Air Plasma Cutting Machine Cut 100
Our Service :

We assure you get our best services all times.
Customized design is available.
Your business relationship with us will be confidential to any third party.

If you have any questions, please feel free to contact me!
