• Model NO.：COLO-1864
• Worksize Dimensions：1600width X 1800 Height X 1400 Depth
• Overall Dimensions：1900widthx 2200 Height X 1700 Depth
• Power Supply：Electric
• Warm-up Time：15-30 Min
• Temperature Max：250 Degree
• Motor Power：0.75kw
• Transportation：Trolley
• Control Mode：PLC Control
• Brand Name：Colo
• Transport Package：20FT Container
• Specification：1KG
• Trademark：COLO
• Origin：China
• HS Code：8419899090
• Production Capacity：500pieces,Year

Basic Info.

Model NO. COLO-1864 Worksize Dimensions 1600width X 1800 Height X 1400 Depth Overall Dimensions 1900widthx 2200 Height X 1700 Depth Power Supply Electric Warm-up Time 15-30 Min Temperature Max 250 Degree Motor Power 0.75kw Transportation Trolley Control Mode PLC Control Brand Name Colo Transport Package 20FT Container Specification 1KG Trademark COLO Origin China HS Code 8419899090 Production Capacity 500pieces/Year

Product Description

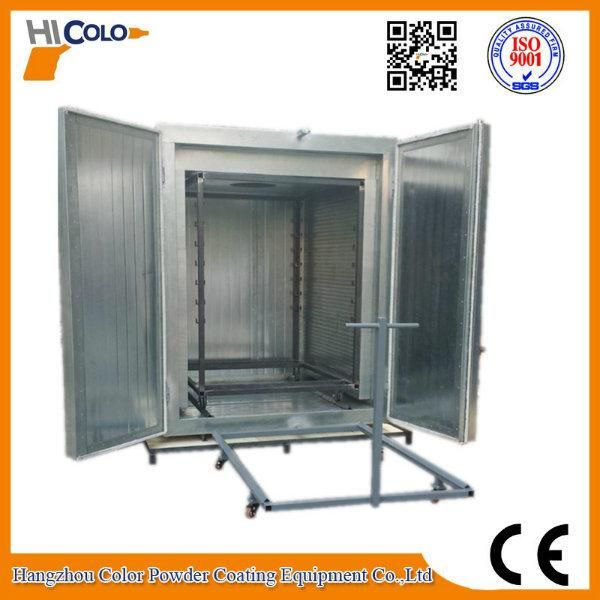

Epoxy powder coating curing electric oven with trolley

Eletric curing oven COLO-1864 is used for curing the workpiece which has been spraying during the powder coating.When a thermoset powder is exposed to elevated temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in a network-like structure.



Technical Data:

Model	COLO-1864
Worksize dimensions	1600width x 1800 height x 1400 depth
Overall dimensions	1900 width  x 2200 height x 1700 dept
Power supply	Electric/ 12kw
Voltage/Frequency	380V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature max.	< ± 3-5°C
Ventilation performance	805-1677m3/h
Motor power	0.75kw
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Transportation	Trolley in and out
Warranty	1 year

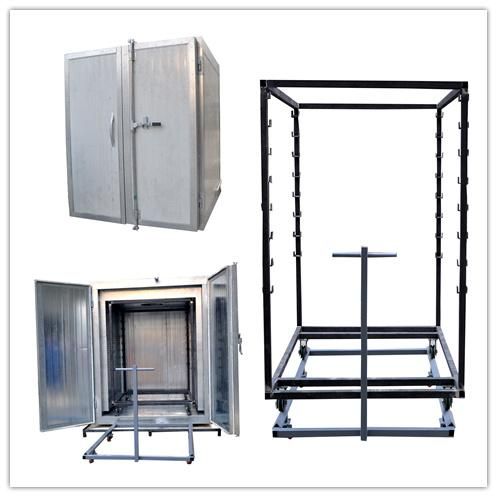

Trolley as below picture:
Including 1 set of guide rail for in and out, 4 pcs of wheels.

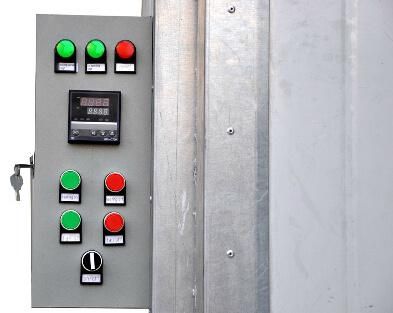

Control system:
including power switch, oven curing time setting, curing temperature setting, over indication, heating indication, working indication, power indication.


Application:
Use with a manual powder spray booth and a coating machine,that is a simple manual powder coating line. as below picture:
