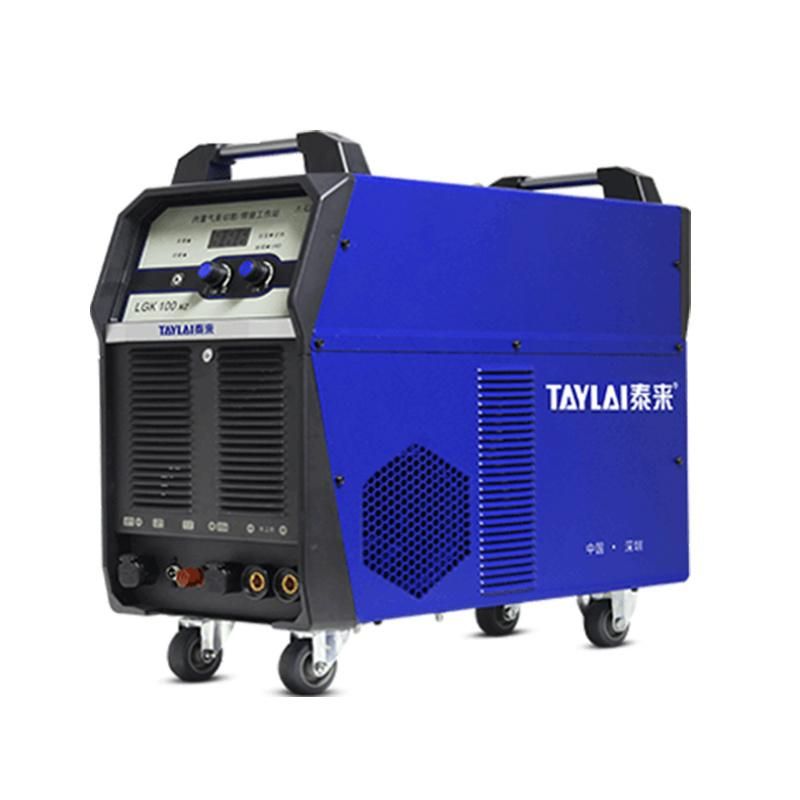

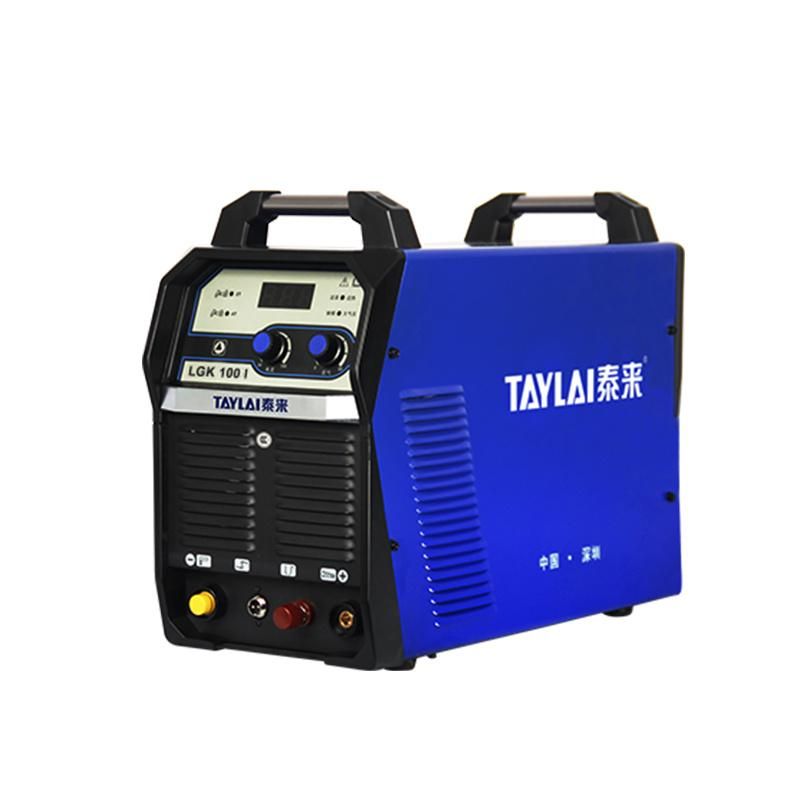

380V/100A, DC Inverter IGBT Module Plasma Cut Machine Cutter with CNC Cutting Function-Cut100lgk100

Dongguan Haibao Welding and Cutting Equipment Co., Ltd.
  • Customized：Non-Customized
  • Layout：Horizontal
  • Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
  • Automatic Grade：Automatic, Manual, Semi-Automatic
  • Power Source：Electric
  • Cutting Mode：Waterjet Cutting

Base Info

  • Model NO.：CUT100
  • Transport Package：Wooden Box
  • Trademark：WLS
  • Origin：Shenzhen, China
  • HS Code：8515900000
  • Production Capacity：900pieces

Description

TypeLGK-100control modeIGBT inverterRated input voltageAC380VRated input current(A)22Rated input capacity(KVA)14.5Rated output current(A)100Cable cross-sectional areamains input(mm2)4power output(mm2)16ground wire(mm2)4Rated output voltage(V)120Duty cycle(%)100Rated no-load voltage(V)285Current adjustment range(A)30-100Quality cutting thickness (carbon steel)(mm)1~30Maximum cutting thickness (carbon steel)(mm)35Using plasma gasCompressed airGas pressure range(MPa)0.4-0.5Applicable air compressor capacity(m3)≥0.3Arc ignition modeHigh pressure non-contactEnclosure ratingIP21SInsulation ratingFCooling methodAirPower factor0.93Dimensions(mm)510*265*500Host weight(KG)40380V/100A, DC Inverter IGBT Module Plasma Cut Machine Cutter with CNC Cutting Function-Cut100lgk100380V/100A, DC Inverter IGBT Module Plasma Cut Machine Cutter with CNC Cutting Function-Cut100lgk100380V/100A, DC Inverter IGBT Module Plasma Cut Machine Cutter with CNC Cutting Function-Cut100lgk100380V/100A, DC Inverter IGBT Module Plasma Cut Machine Cutter with CNC Cutting Function-Cut100lgk100380V/100A, DC Inverter IGBT Module Plasma Cut Machine Cutter with CNC Cutting Function-Cut100lgk100380V/100A, DC Inverter IGBT Module Plasma Cut Machine Cutter with CNC Cutting Function-Cut100lgk100380V/100A, DC Inverter IGBT Module Plasma Cut Machine Cutter with CNC Cutting Function-Cut100lgk100
