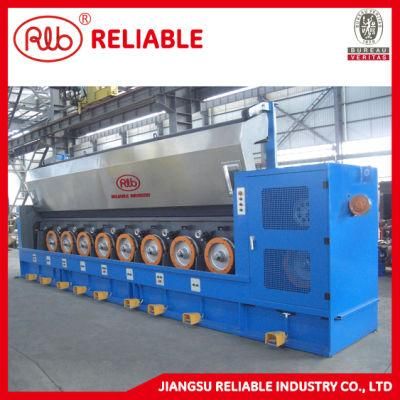

Energy Save Copper Rod Breakdown Machine with Online Annealer and Individual Motors
JIANGSU RELIABLE INDUSTRY CO., LTD.- Type：Horizontal Metal Drawing Machine
- Usage：Wire, Rope Wire, Prestressed Steel Wire, Standard Parts
- Metal Material：Copper, Aluminum, Steel, Stainless Steel
- Outlet Diameter：0.5-4.5mm
- Max.Inlet Wire Dia.：9.5mm
- Block Dia.：450mm
Base Info
- Max. Number of Block：13
- Certification：ISO
- Condition：New
- Inlet Dia：9.5mm or 2*9.5mm
- Wires：1 or 2
- Outlet Dia：1.6-4.5mm
- Max. Speed：30m,S
- Max Drawing Pass：13
- Installed Capacity：300-600kVA
- Overall Dimension：22*6*5-24*10*5
- Transport Package：Standard Wooden Package or Customized
- Specification：Customized
- Trademark：Reliable
- Origin：China
Description

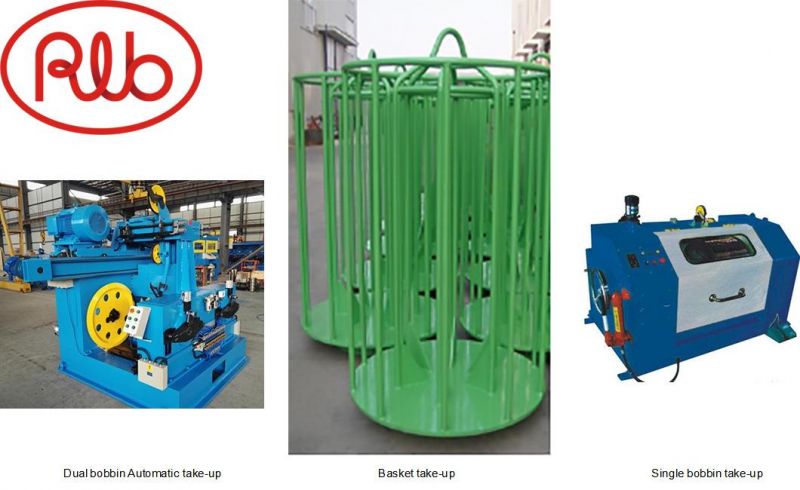

Take-up form (optional):
1:630Single bobbin take-up 2:630Dual bobbin take-up 3:800Single bobbin take-up

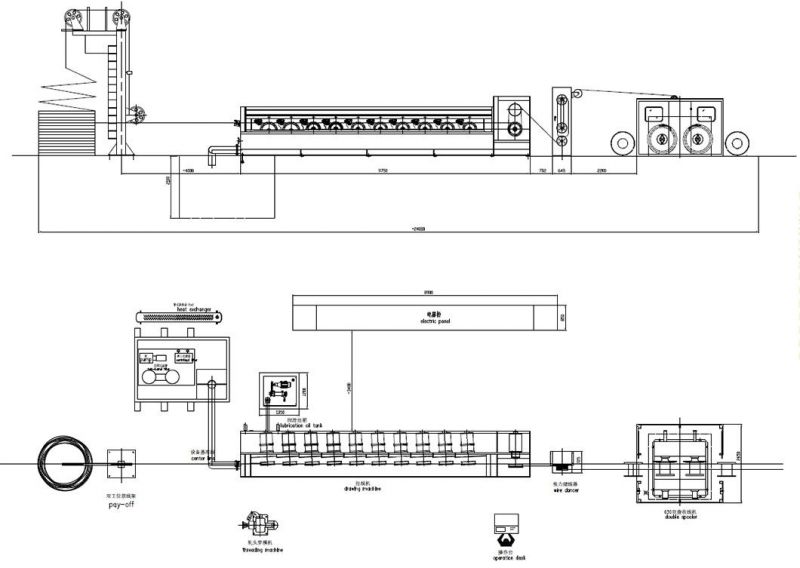

4:800Dual bobbin take-up 5:820Vertical pay-off 6: Or above combination4.Layout:
5.Application Demonstration
Application Demonstration: According to the need, it can be configured with a variety of take-up machine;
Suitable for drawing round and irregular conductors
Can be configured with a withdrawal lighter to realize online annealing of aluminum alloy
