Cold Bolt Former
HARBIN RAINBOW TECHNOLOGY CO., LTD.- After-sales Service：Online Support
- Type：Forging Operation
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：Precision
- Certification：CE
Base Info
- Model NO.：RB
- Warranty：12 Months
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Transport Package：by Sea
- Specification：3 Forging stations
- Trademark：QILong
- Origin：China
- Production Capacity：100 Sets,Year
Description
Overview
Product Description
Product ParametersNo. 3 3 3 3 3 3 3 FORGING FORCE kgs 35,000 60,000 60,000 80,000 80,000 115,000 115,000 MAX. CUT-OFF DIA. mm φ8 φ10 φ10 φ12 φ12 φ15 φ15 MAX. CUT-OFF LENGTH mm 85 120 160 125 220 170 260 OUTPUT pcs/min 60 - 300 60 - 240 60 - 180 60 - 190 60 - 130 70 - 150 60 - 90 MAX. P.K.O LENGTH mm 12 12 16 15 15 26 25 DIE KICK OUT LENGTH mm 52 52 115 80 162 102 230 MAIN MOTOR kw 11 15 20 20 22 30 30 CUT-OFF QUILL mm φ 30*45L φ 53*90L φ 30*50L φ 45*59L φ 45*59L φ 63*69L φ 55*70L PUNCH SIZE mm φ 40*90L φ 45*95L φ 45*140L φ 53*115L φ 53*112L φ 60*130L φ 60*179L DIE SIZE mm φ 50*85L φ 60*80L φ 60*150L φ 75*108L φ 125*345L φ 140*250L φ 148*300L DIE PITCH mm 60 70 70 90 90 98 110 APPROX. WEIGHT kgs 7,500 10,000 14,000 14,000 19,500 19,500 31,000 DIA. OF PRODUCTION mm 3- 6 5 - 8 5 - 8 6 - 10 6 - 10 8 - 12.7 8 - 12.7 LENGTH OF PRODUCTION mm 10 - 65 12 - 90 15 - 125 12 - 110 20 - 152 15 - 120 50 - 210

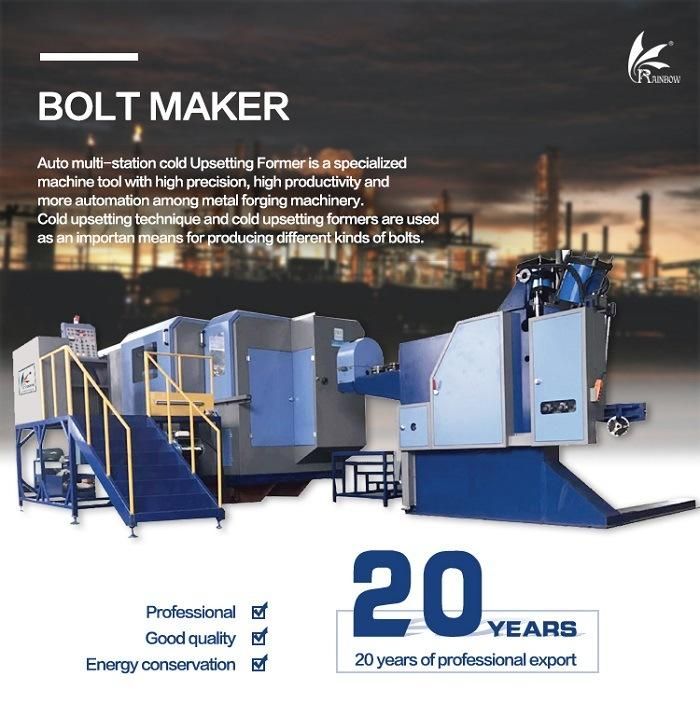

RBF series passed CE certification, mainly produce 3die 3 blow, 4 die 4 blow, 5 die 5 blow, 6 die 6 blow multi station heading machine, boltmaker machine including thread rolling unit and tapping machine. The machine has high efficiency and consequently used to produce various fasteners, nonstandard products for automobile, motorcycle, bicycle and basically machinery work piece. Also produce nonstandard-machine in accordance with special requirement
Product Parameters
FORGING STATION
