Hydraulic Wire Sling Formed Machine (BO-500)
BOBO Machine Co., Ltd.- Forging Forming Method：Mold Forging
- Certification：CE
- Condition：New
- Mould：Customized
- Work Speed：4.5mm,S up and 8mm,S Down
- Driven Power：Hydraulic
Base Info
- Model NO.：BO-500
- Press Capacity：5000 Kn
- Net Weight：3000kg
- Voltage：380V or Customized
- Dimension：1600X680X1800mm
- Item：Wire Sling Formed Machine
- Transport Package：Wooden Package
- Specification：GB
- Trademark：BOBO
- Origin：China
- Production Capacity：16 Sets,Quarter
Description
Basic Info.
Model NO. BO-500 Press Capacity 5000 Kn Net Weight 3000kg Voltage 380V or Customized Dimension 1600X680X1800mm Item Wire Sling Formed Machine Transport Package Wooden Package Specification GB Trademark BOBO Origin China Production Capacity 16 Sets/QuarterProduct Description

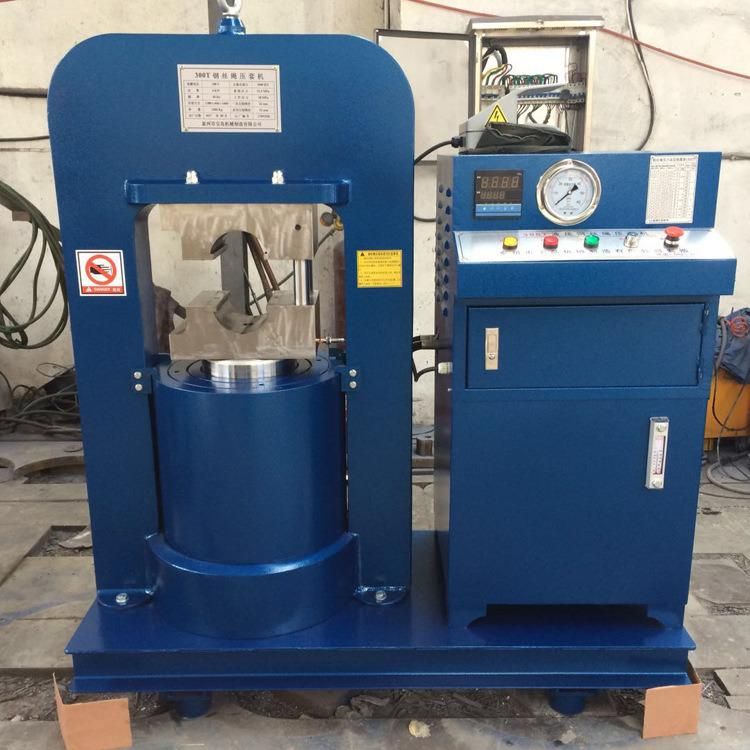

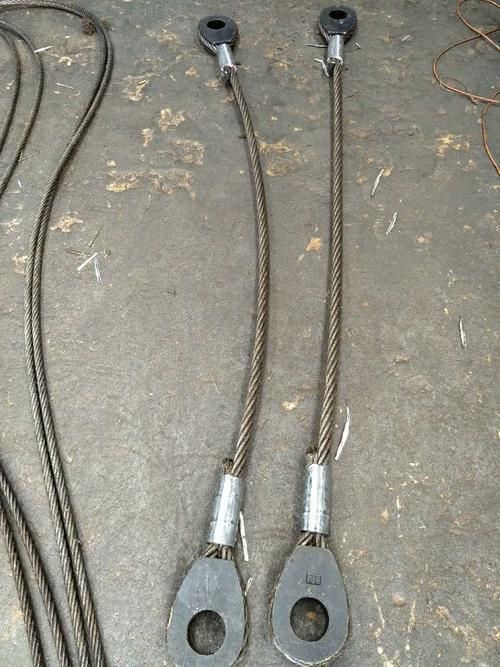

Hydraulic wire sling formed machineHydraulic wire sling formed machine is widely used in oil fields, ports, railways, construction and other related fields. The finished lock has stable tension, heavy loading capacity feature.
Feature of Wire sling formed machine
Cylinder embedded design
Round independent mold
Adjustable piston stroke
High technology and strength
Main technical data of Wire sling formed machine
| 1 | Model | BO-500 |
| 2 | Max.press power | 5000KN |
| 3 | Max. wire rope diameter | 32/ 42mm |
| 4 | Max. working pressure | 28MPa |
| 5 | Max. piston stroke | 120mm |
| 6 | Work speed | 4.5mm/s up and 8mm/s down |
| 7 | Motor capacity | 11kw |
| 8 | Dimension | 1600x680x1800mm |
| 9 | Net Weight | 3000kg |
