• Model NO.：DW89CNC
• Max. Bend R：350mm
• Pr：Japan
• Transport Package：Wooden Box
• Specification：5000x1200x1500mm
• Origin：China
• HS Code：8462219000
• Production Capacity：30 PCS,Month

Basic Info.

Model NO. DW89CNC Max. Bend R 350mm Pr Japan Transport Package Wooden Box Specification 5000x1200x1500mm Origin China HS Code 8462219000 Production Capacity 30 PCS/Month

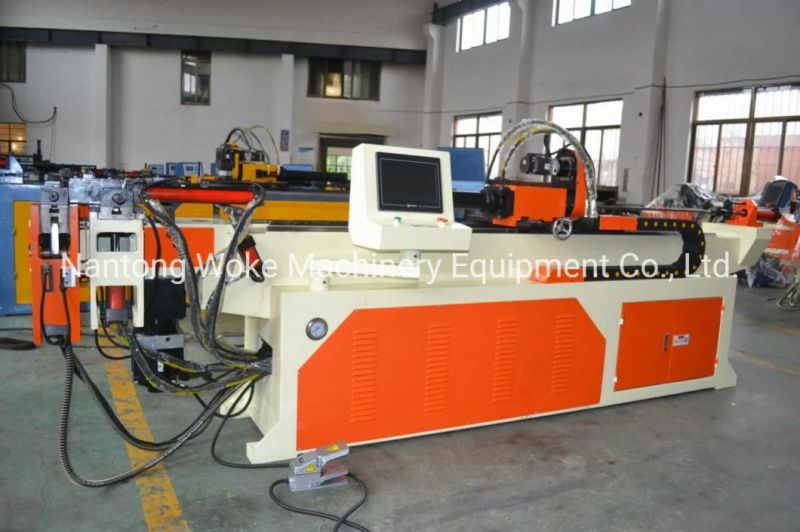

Product Description

·  Product Description
--Automatic recognition of power in machine and work piece, the processing is both quick and good
Slow returning core, boosted by barrow, improving the appearance of the angle.
--The whole operation is in the computer, simple, quick and correct
--Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
--Rebound test: comparison test on the features of lots of pipe materials
Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
--Automatic drawing of the graphics of dies-clear help to develop new products
--Over-all inspection: hydraulic/electrical circuit/ driving systems, absence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
Passwords, keys, working hours/ recordings of quantities, are applied to management of production


·  Specifications

Machine type	DW89CNC
Max bending capability for carbon steel(R=1.5D)	Φ89×3.5t
Max bending capability for stainless steel(R=1.5D)	Φ76×2.5t
Max. feeding distance	2400mm
Max. bending radius(R)	350mm
Max. bending degree	185°
Max. bending process of each pipe	32
Max. oil pressure	14mpa
Information inputting method	Axis (Y,B,C)
Bending method	1.Servo 2.Hydraulic

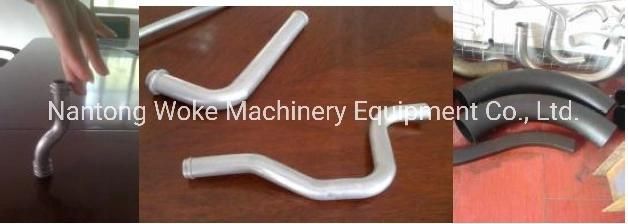

·  Finished samples by cnc bending

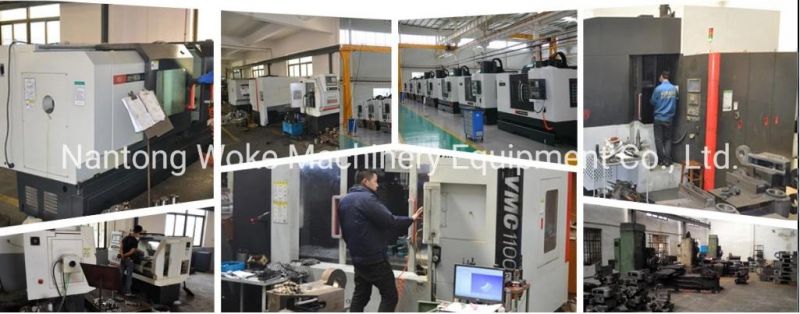

·  High accuracy processing equipments
