Electrostatic Powder Coating Machine with Double Gun System
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：12 Moths
- Warranty：1year
- Type：Powder Coating Machine
- Coating：Powder Coating
- Substrate：Iron
- Certification：CE, ISO
Base Info
- Model NO.：COLO-800D-2
- Condition：New
- Brand：FF
- Packaging：Carton
- Dilivery：2days After Depoist
- After Sales Services Provided：Engineer Is Available
- Power Range：220V,110V
- Frequency：50Hz
- Operational Method：Manual
- Packing Dimension：120W*79h*73D
- Packing Weight：65kg
- Transport Package：Carton
- Specification：CE ISO
- Trademark：FF
- Origin：Zhejiang Hangzhou
- HS Code：8424899990
- Production Capacity：1000sets,Month
Description
Basic Info.
Model NO. COLO-800D-2 Condition New Brand FF Packaging Carton Dilivery 2days After Depoist After Sales Services Provided Engineer Is Available Power Range 220V/110V Frequency 50Hz Operational Method Manual Packing Dimension 120W*79h*73D Packing Weight 65kg Transport Package Carton Specification CE ISO Trademark FF Origin Zhejiang Hangzhou HS Code 8424899990 Production Capacity 1000sets/MonthProduct Description
COLO-800D-2 Electrostatic Powder Coating Machine with Double Gun SystemCOLO-800D-2 is best selling to more than 100 countries, with good feadback of quality,with 2 control systems, can worked with 2 spray guns at the same time.
Sumarry of the advantage
1,High transfer efficiency
2,Perfect coating results
3,Well balanced ergonomic handling
4,Simply and easy maintenance
5,Robust and lightweight design
6,Wide range of accessories
7,intelligent function:

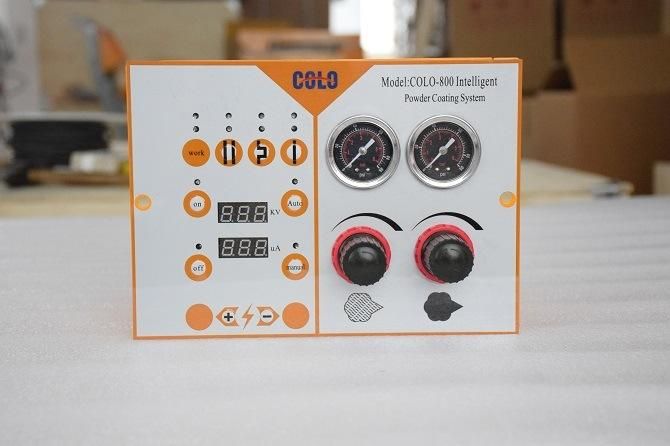

Function of control unit, Recoating, corner Coating, Flat Coating

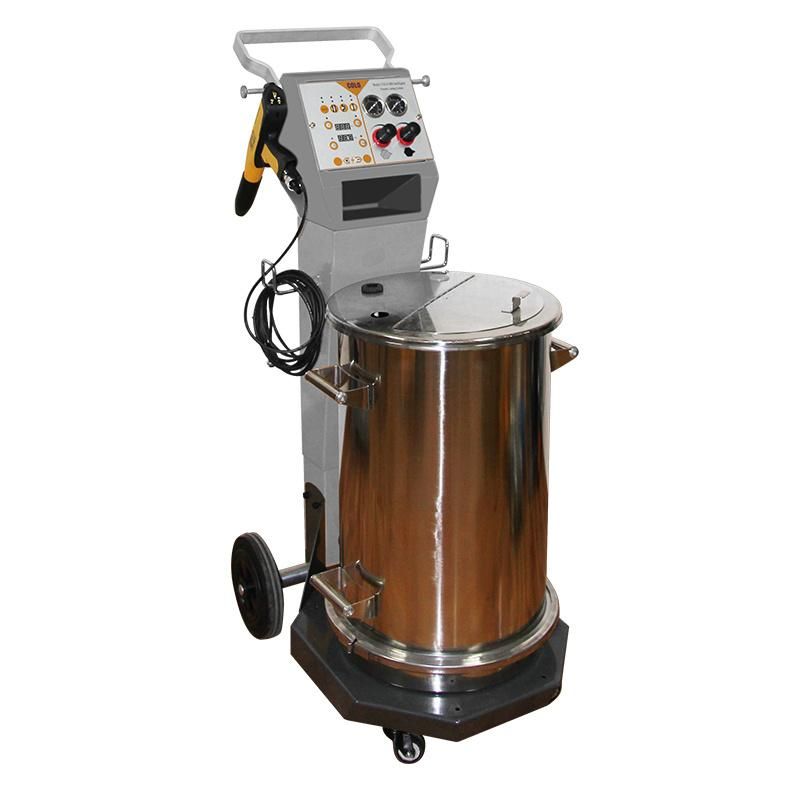

Manual coating equipment-structure
1 control unit 2 2 pcs Manual powder gun(FF08 gun match with this unit)
3 injector 4 Mobile frame with hand rail
5 Fluidized powder hopper 6 Powder filler flap
7 Swivel wheel 8 Filter unit
9 Gun holder 10 Shelf
11 Hose holder 12 Hose holder
13 Rubber wheel

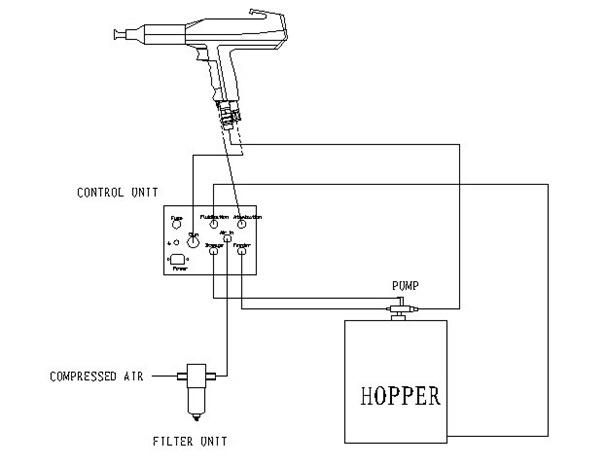

The connection of the gun
Technical Specification
Electrical Data
| MODEL | FF-800D-2 |
| Gun Weight | 500G |
| Rated output voltage | 24VDC |
| Input voltage | -200KV |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100K(adjustable) |
| Maximum powder injection | 600g/min |
| Polarity | negative |
| Maximum input-air pressure | 10kg/cm |
| Optimum input-air pressure | 6kg/cm |
| Optimum output-air pressure | 4kg/cm |
| Maximum water vapor content or compressed air | 1.4g/N m3 |
| Maximum oil vapor content of compressed air | 0.1ppm |
| Maximum compressed-air consumption | 13.2 m3/h |
| Temperature range in use | -10 ºC+50 ºC |
Powder Coating Application:
