• Max. Number of Block：13
• Certification：ISO
• Condition：New
• Inlet Dia：9.5mm or 2*9.5mm
• Wires：1 or 2
• Outlet Dia：1.6-4.5mm
• Max. Speed：30m,S
• Max Drawing Pass：13
• Installed Capacity：300-600kVA
• Overall Dimension：22*6*5-24*10*5
• Transport Package：Standard Wooden Package or Customized
• Specification：Customized
• Trademark：Reliable
• Origin：China

Drive Mode

Model

Inlet Dia

(Mm)

Wires

Outlet Dia

(Mm)

Max.Speed

(M/S)

Max Drawing Pass

Capstan Dia(Mm)

Installed Capacity

(Kva)

Take-Up Type(Optional)

Shunt Drive

LWHD-450/9

φ8

1

Φ2.1-4.2

25

9

φ450

400

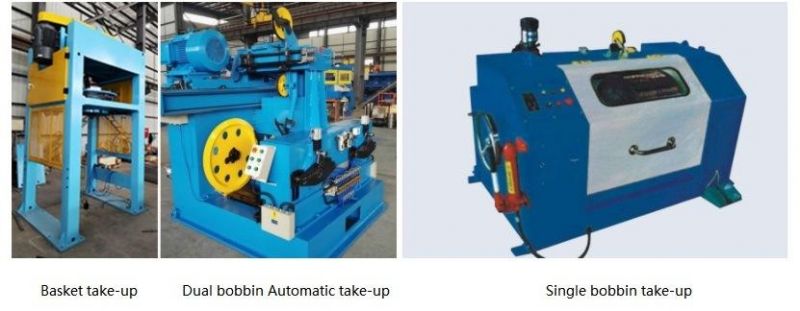

1:630 Single bobbin take-up

2:630 Dual bobbin take-up

3:800 Single bobbin take-up

4:800 Dual bobbin take-up

5:820 Vertical pay-off

6: Or above combination

LWHD-450/11

φ8

1

Φ1.7-4.2

28

11

φ450

450

LWHD-450/13

φ8

1

φ1.2-φ4.2

30

13

φ450

500

LWHD-450/9(2)

2xφ8

2

2xφ2.05-3.2

25

9

φ450

900

Linear Single Motor Drive

LHD-450/9

φ8

1

Φ2.1-4.2

25

9

φ450

400

LHD-450/11

φ8

1

Φ1.7-4.2

28

11

φ450

450

LHD-450/13

φ8

1

φ1.2-φ4.2

30

13

φ450

500

LHD-450/9(2)

2xφ8

2

2xφ2.05-3.2

25

9

φ450

900
