• Model NO.：CBD
• Production Capacity：250

Basic Info.

Model NO. CBD Production Capacity 250

Product Description

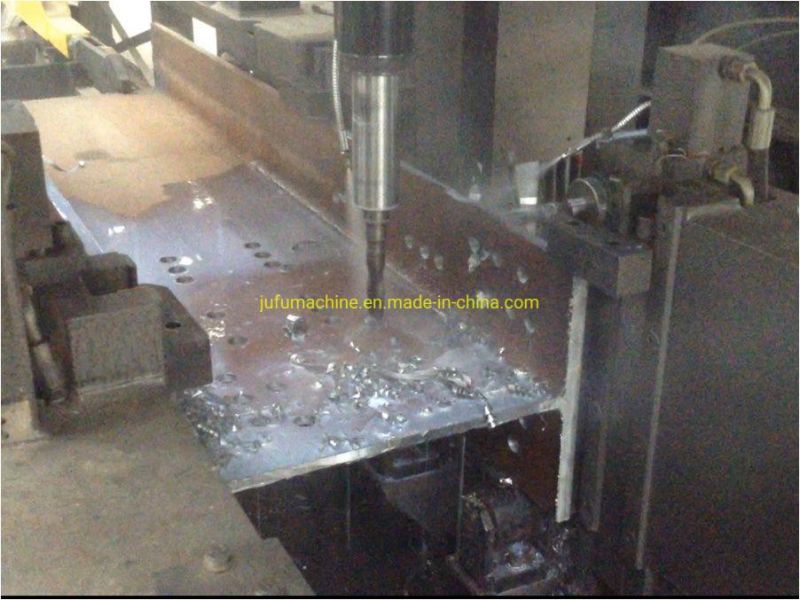

This machine is suitable for drilling three sides of H-beam and U-channel in steel structure industry

1.Three power heads can work simultaneously or independently high-speed drilling,chamfering,tapping and other processes.

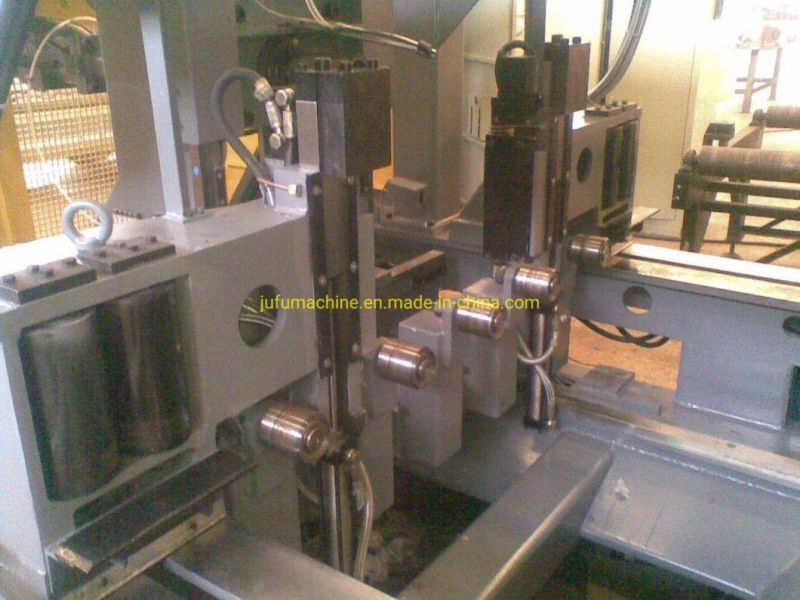

2.Both vertical and horizontal with hydraulic clamping device.
3.Three power heads with an automatic tool changer.
4.Three axes can achieve high speed lettering lining.


Processing range (Web width x flange*height)(mm)
Maximum 700x400 ; 1000x500 ; 600x500; 1000x500;  1300x500 ; 2100x700
Vertical power head:  1
Horizontal power head:  2
Dia.of drilling hole(mm): 8-50mm
Spindle speed(r/min):80-2560
Motor power(KW): 22
Feeding mode Trolley
