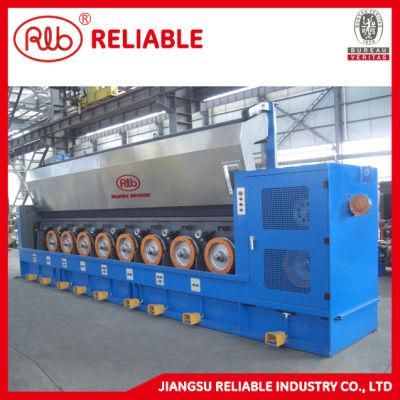

Good Quality 8mm Copper Rod Breakdown Machine with Online Annealer and Individual Motor
JIANGSU RELIABLE INDUSTRY CO., LTD.- Type：Horizontal Metal Drawing Machine
- Usage：Wire, Rope Wire, Prestressed Steel Wire, Standard Parts
- Metal Material：Copper, Aluminum, Steel, Stainless Steel
- Outlet Diameter：0.5-4.5mm
- Max.Inlet Wire Dia.：9.5mm
- Block Dia.：450mm
Base Info
- Max. Number of Block：13
- Certification：ISO
- Condition：New
- Inlet Dia：9.5mm or 2*9.5mm
- Wires：1 or 2
- Outlet Dia：1.6-4.5mm
- Max. Speed：30m,S
- Max Drawing Pass：13
- Installed Capacity：300-600kVA
- Overall Dimension：22*6*5-24*10*5
- Transport Package：Standard Wooden Package or Customized
- Specification：Customized
- Trademark：Reliable
- Origin：China
Description
Drive Mode
Model
Inlet Dia
(Mm)
Wires
Outlet Dia
(Mm)
Max.Speed
(M/S)
Max Drawing Pass
Capstan Dia(Mm)
Installed Capacity
(Kva)
Take-Up Type(Optional)
Shunt Drive
LWHD-450/9
φ8
1
Φ2.1-4.2
25
9
φ450
400
1:630 Single bobbin take-up
2:630 Dual bobbin take-up
3:800 Single bobbin take-up
4:800 Dual bobbin take-up
5:820 Vertical pay-off
6: Or above combination
LWHD-450/11
φ8
1
Φ1.7-4.2
28
11
φ450
450
LWHD-450/13
φ8
1
φ1.2-φ4.2
30
13
φ450
500
LWHD-450/9(2)
2xφ8
2
2xφ2.05-3.2
25
9
φ450
900
Linear Single Motor Drive
LHD-450/9
φ8
1
Φ2.1-4.2
25
9
φ450
400
LHD-450/11
φ8
1
Φ1.7-4.2
28
11
φ450
450
LHD-450/13
φ8
1
φ1.2-φ4.2
30
13
φ450
500
LHD-450/9(2)
2xφ8
2
2xφ2.05-3.2
25
9
φ450
900

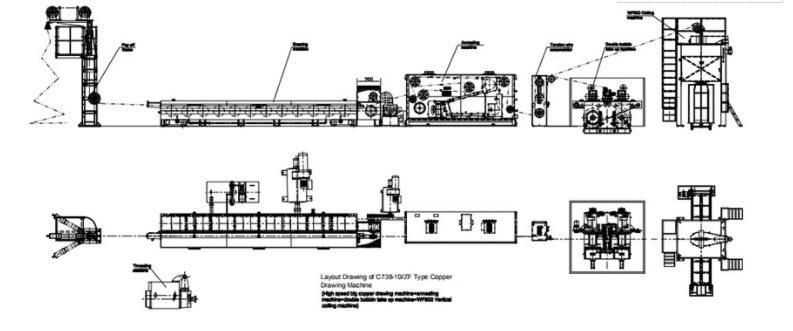

4.Layout:
5.Application Demonstration
Application Demonstration: According to the need, it can be configured with a variety of take-up machine;
