• Model NO.：COLO-191S
• Condition：New
• Name：Electrostatic Powder Coating System with Dual Guns
• Application：Any Metal Surface
• Voltage：220V,110V
• Frequency：50-60Hz
• Max Voltage：100kv
• Gun Weight：500g
• Packaging：Wooden Case,Carton
• Delivery：1-3 Working Days
• Payment：100% in Advance
• Item：Dual Guns Powder Coating Machine
• Transport Package：Carton
• Specification：W*H*D
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：800sets,Year

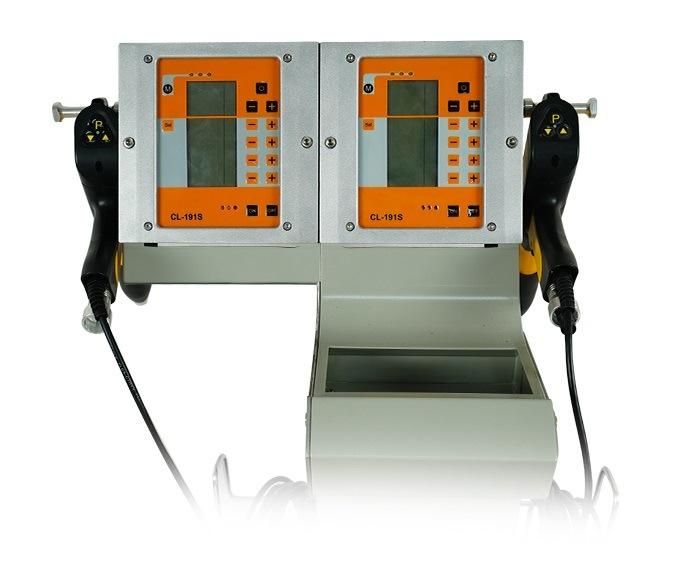

Intelligent Controller

Button type control is more convenient to operate, and switch from different application programs flexibly. There are 3 pre-set application modes: flat-coating for large plates, corner-coating for complex parts, re-coating for repairing jobs.

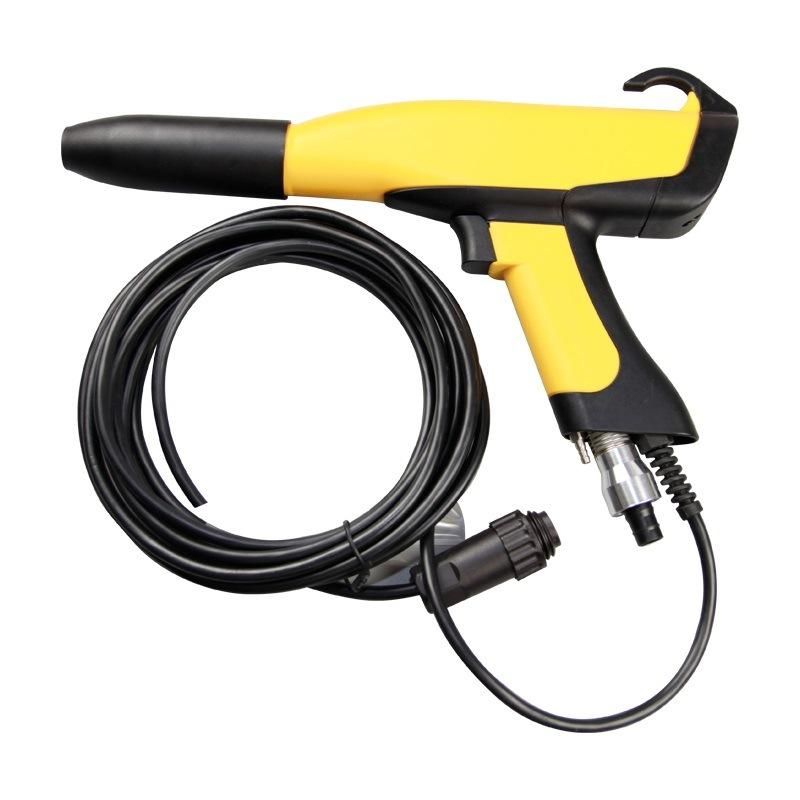

Support to store 20 application programs for powder coating. Different powders or parts require specific program settings. The 20 personalized application programs help operators to fastly start working and each part will recieve optimal powder coating effect.COLO-08 Manual Powder Coating Spray Gun

100 kV manual spray gun ensures safe operation meanwhile maximizes powder charging capacity with high efficiency.

This lightweight and ergonomical spray gun is able to reduce fatigue from working long hours.

Flat spray nozzles and round spray nozzles with deflectors are ideal for powder coating different shape of parts.

Technical Specifications of Electrostatic Powder Coating Gun

Electrical Data

Model	COLO-191S
Gun Weight	500G
Rated output voltage	24VDC
Input voltage	-200KV
Maximum output current	180Ua(max)
Maximum output voltage	0-100K(adjustable)

 Pneumatic data


Maximum powder injection	600g/min
Polarity	negative
Maximum input-air pressure	10kg/cm
Optimum input-air pressure	6kg/cm
Optimum input-air pressure	4kg/cm
Maximum water vapor content or compressed air	1.4g/N m3
Maximum oil vapor content of compressed air	0.1ppm
Maximum compressed-air consumption	13.2 m3/h
Temperature range in use	-10 ºC+50 ºC
