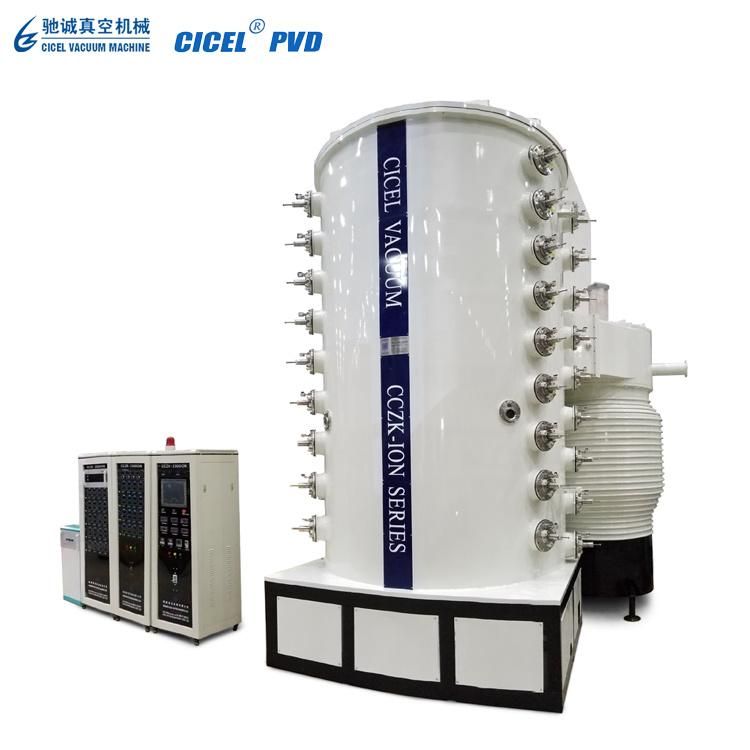

Stainless Steel Sheet/Tubes/Pipes PVD Vacuum Coating Machine / Vacuum Plating Machine for Stainless Steel Sheet
Wenzhou Cicel Vacuum Machine Co., Ltd.- Voltage：380V
- Automatic Grade：Automatic
- Warranty：1 Year
- Certification：CE, ISO
- Specification：CCZK-ION
- Trademark：CICEL
Base Info
- Model NO.：CCZK-ION
- Origin：Wenzhou City, China
- HS Code：8479899990
Description
Configuration
model
CCZK-2000-ION
CCZK-2200-ION
CCZK-2400-ION
Customized
Size is available
Chamber size
D2000*H3000mm
D2200*H4000mm
D2400*H5000mm
Customized
Vacuum system
Diffusion pump/ + Roots pump + Double stage direct driver Rotary pump + Holding pump + Cryogenic pump(optional)
Customized
Arc
power supply
7th generation
32sets
7th generation
40sets
7th generation
48sets
Customized
Arc source
7th generation
32sets
7th generation
40sets
7th generation
48sets
Customized
Bias
power supply
50KW
80KW
100KW
Customized
Gas MFC system
4-way intake sys
4-way intake sys
4-way intake sys
Customized
Baking system
Up to 350C
Up to 350C
Up to 350C
Customized
Control system
IPC + PLC+HMI Full automatic + Remote control system ( optional)
Customized
Ultimate vacuum
5.0*10-4pa
5.0*10-4pa
5.0*10-4pa
Customized
Total power
360KW
455KW
567KW
Customized
Coating Cycle time
Around 15 to 50 mins one cycle ( Depending on the coating film layer of different coating products)
Customized
Delivery container size
1set 20FR
1set 40HQ
1set 20FR
2sets 40HQ
1set 20FR
3sets 40HQ
Customized
Machine installing time
15days(2engineers)
20days(2engineers)
20days(2engineers)
Customized
