• Model NO.：686
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Metal Roof Sheet Roll Forming Machine
• Applied Slad Thicknedd：0.2-0.8mm
• Charge in Width：1000mm-1200mm
• .Productivity：0-15m,Min
• Rollers：13----18 Rows
• Diameter of The Roller：75mm
• Dimensions: Major Structure：7.8m×1.8m ×1.4m
• Weight：4.3t
• Power：4kw+4kw
• Color：According to Customer′s Request
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：CE ISO
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Year

Technical Parameters (some depend on the final design)

1

Style

used metal ibr roof sheet panel roll forming machine

2

Machine dimension

7600*1600*1550mm

3

Total wight

6500kgs

4

Forming steps

16 rows

5

Forming speed

8-12m/min;

6

Hydraulic station power(Kw)

4kw

7

Diameter of shaft

70mm

8

Hydraulic pressure

18-20 MPa

9

Electric condition

380V/3Phase/ 50HZ

10

Suitable to process

Color steel plate(G330 or G350 or G550 )

11

Manual uncoiler max capacity

5000kgs

12

Control system

PLC

13

Raw material thickness

0.3-0.8mm

14

Effective width

686mm

15

Material width

1000mm

16

Main motor

5.5Kw

17

Material of the cutting blade

Cr 12 quenched treatment 58ºC-62ºC18

Main Shaft Material



 45# steel with finish turning19Roller materials  45# Forging Steel with Chromium Plate20Machine Under Frame 350 H beams Packaging & Shipping

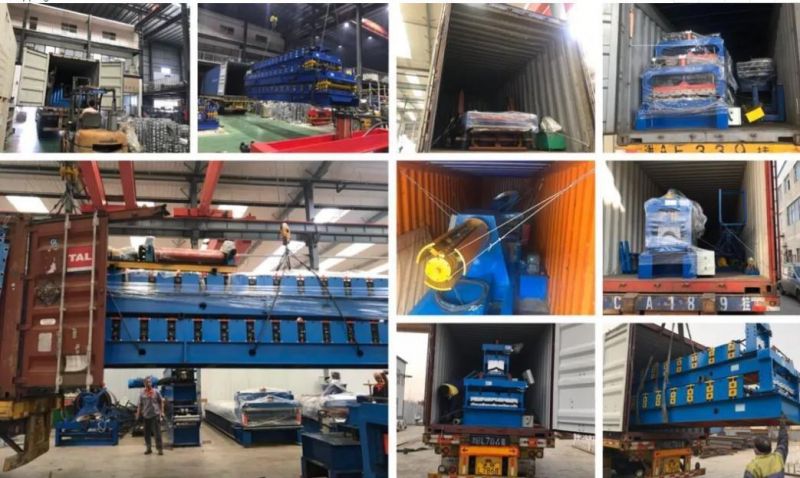

Galvanized IBR r panel metal roof sheet roll forming machine package and shipment details

1.We have professional technicians for loading

   Guaranteed the goods load into container without any damage.

2.Transportation : Machines need one 40 feet container to hold

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

Our Services
First,we can produce the special machine,send your drawing to us,we can design for you.

Second,if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

Third, we provide a one year warranty and lifelong technical support,we can send our technicians to you to give you on-site training.

Four,engineers available to service machinery overseas.


Five, if you come to visit our factory,we can book the room for you,car pick up to send.

We manufacture and test our machine strictly to make sure every customer get it satisfied.
Your panel profile drawing is welcomed and acceptable!
