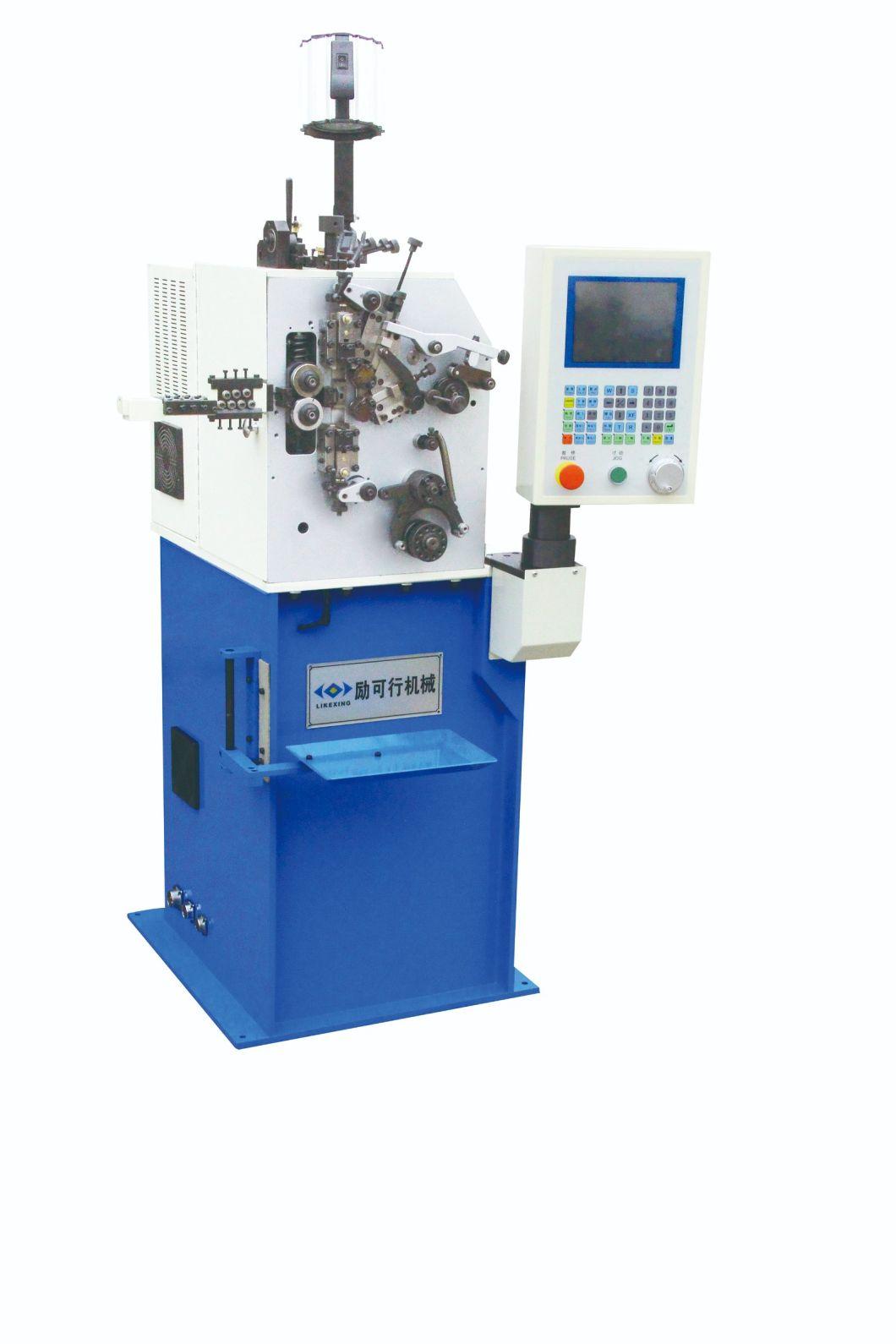

Automatic CNC 2-Axis Spring Forming/Coiling Machine Lkx208

Guang Dong LI KE XING Spring Machinery Technology Co., Ltd.
  • Control Type：Automatic
  • Axis Count：2 Axis
  • Warranty：1 Year
  • Servo Motor：SANYO
  • Transport Package：Wooden Case
  • Specification：1000*1000*1700MM

Base Info

  • Model NO.：LKX208
  • Trademark：LIKEXING
  • Origin：Made in China
  • HS Code：84633000
  • Production Capacity：500sets,Year

Description

Basic Info.

Model NO. LKX208 Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

LKX208 Computer Compressing Spring Machine is equipped with  imported Japanese Servo Motor, including cam axis and feeder axis.
High synchronization accuracy, Power-full and precise in wire feeding.
Suitable for producing Compression spring, torsion spring ect. parts.
8inch digital touch screen with touch buttons, easy to use.
In High speed processing, when the motor is voerheating, the cumputer can detect and slow down to protect the motor itself automatically.
Can reduce or increase the production capacity at any time.

TECHNICAL PARAMETER

ModelLKX208
Wire diameter (mm)Ø0.1~Ø0.8
Axis Count2 Axis
Max feeding Lengthunlimited
Servo motor of wire feed (kw) 0.75
Servo motor of cam (kw) 0.75
The Fastest Speed600pcs/min
The Feeding Wire Speed1200m/min
Max  Outside Diameter20mm
Machine size(mm)900×850×1600
Weight (Kg)380
Power200V 3-Phase
