Commercial T F Brad Nails Making Machine

SSS Hardware International Trading Co., Ltd.
  • After-sales Service:Online Support,Video Technical Support
  • Warranty:1 Year
  • Application:Staple Punching Forming Machine
  • Nominal Capacity:250kn
  • Slide Strokes Per Min:90-170 Times
  • Wire Band Width:60-120mm

Base Info

  • Wire Band Thickness:0.4-0.7mm
  • Motor:5.5kw
  • Weight:1400kg
  • Machine Condition:New
  • Transport Package:Plywood Cases
  • Specification:1200*1400*1700
  • Trademark:SSS
  • Origin:China
  • Production Capacity:30 Sets,Per Month

Description

Basic Info.

Wire Band Thickness 0.4-0.7mm Motor 5.5kw Weight 1400kg Machine Condition New Transport Package Plywood Cases Specification 1200*1400*1700 Trademark SSS Origin China Production Capacity 30 Sets/Per Month

Product Description

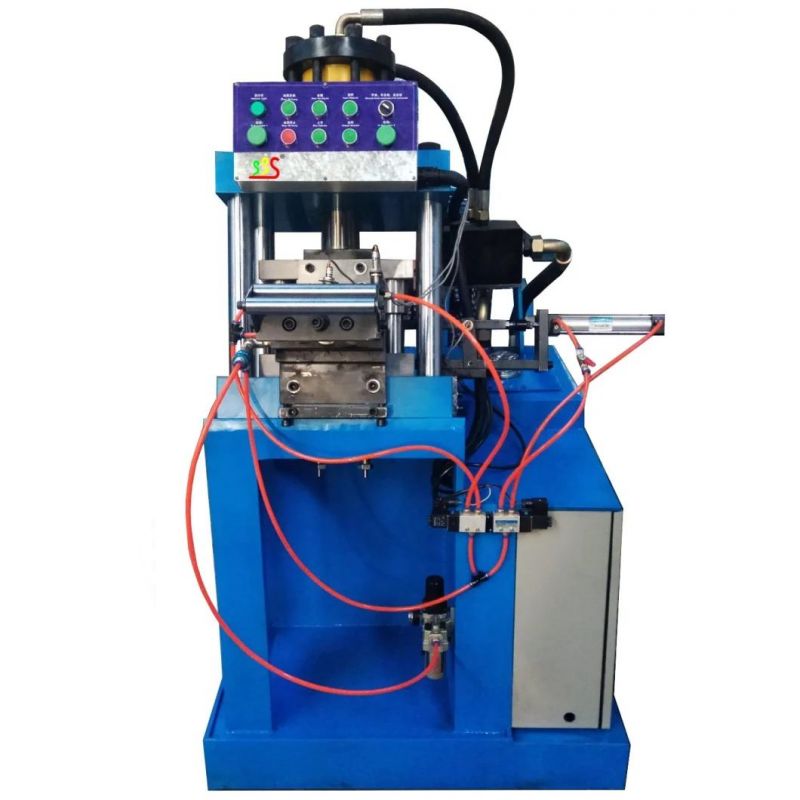

Commercial T F brad nails making machine


Machine Features:

1, the automatic hydraulic nail machine adopts high pressure oil circuit, low noise, less failure rate, the circuit adopts PLC integrated control, the product infinite limit, exquisite production.

2. Equipped with extended conveying equipment, it can automatically pick up nails with high degree of automation, which can reduce nail pickers and reduce production costs

Commercial T F Brad Nails Making Machine
Process of Production Line

Making Process: Raw material (galvanized wire)  ------->  Wire drawing  -------> Wire flattening  ------->  Wire gluing  ------->  Staples pressing  -------> Staples packing(as your demand to choose)

Machines involved in the production line
ItemDescription
1Water tank wire drawing and flattening integrated machine
2Wire band gluing combiner with wire pay-off rack
3Hydraulic press/forming machine
4wire band winding trolley
5wire band feeding machine(straightening)
6active wire band feeder
7plastic spool(50kg load capacity)
8semi-auto packing machine
9fully-auto packing machine
10butt welding machine

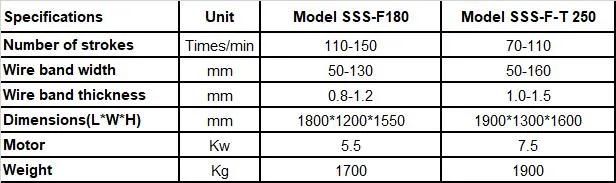

Punching Machine Parameters
  Commercial T F Brad Nails Making Machine
 Introduction of the Whole Production Line

Commercial T F Brad Nails Making Machine

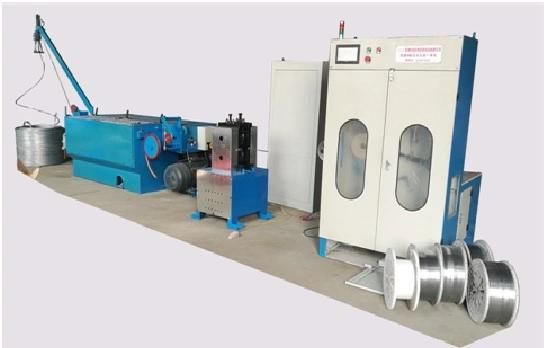

1. Water Tank Wire Drawing and flatten machine

High speed water tank wire drawing and flattening integrated machine adopts 17 molds and 4 groups of cone type pulley wheels, all wheels with tungsten carbide coating. The flattening machine adopts tungsten carbide wheel with high hardness and shining surface, which can ensure the exact flattening thickness. This group of machines can work together smoothly like one machine with one starting button.

Maximum in-let wire diameter: 2.0mm
Minimum out-let wire diameter: 0.43mm

Commercial T F Brad Nails Making Machine

 2. Wire Flattening Machine

This single wire flattening machine adopts tungsten carbide alloy pressing roller, which has the advantages of high hardness and good brightness of the surface of the pressing wheel, and stepless speed change. Water cooling in the pressing roller effectively extends the life of the alloy roller.Commercial T F Brad Nails Making Machine

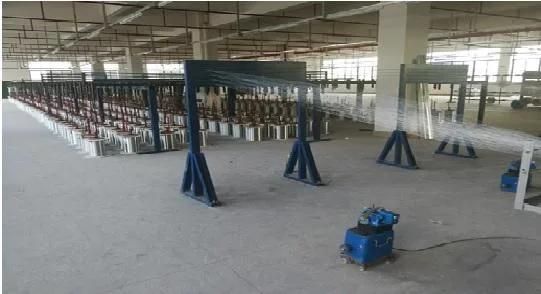

3. 210-spool pay-off SSS-JX210

Straighten each wire through the wire take-up spool. Each wire is equipped with a pulley cycloid device, and the pulley cycloid device sends the wire to the straightening wheel in the order of the wire. The bent wire will be automatically straightened by the straightening wheel to meet the qualified requirements.Advantages: Each wire gets the same pulling force even thickness smooth
wire band.
Commercial T F Brad Nails Making Machine

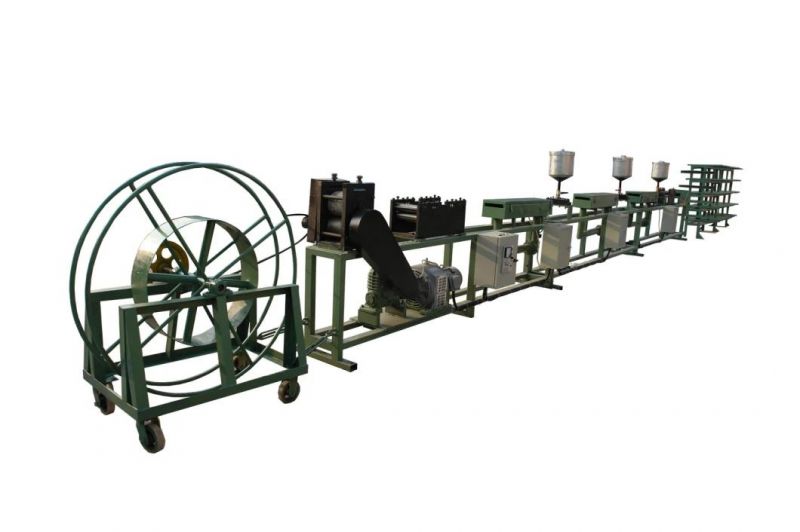

4. Wire Band Gluing Machine

This group of machines including wire pay-off frame, with leveling and straightening equipment at front and rear part of the production line. The production line can glue the wires automatically and dry the wire band automatically.Commercial T F Brad Nails Making Machine

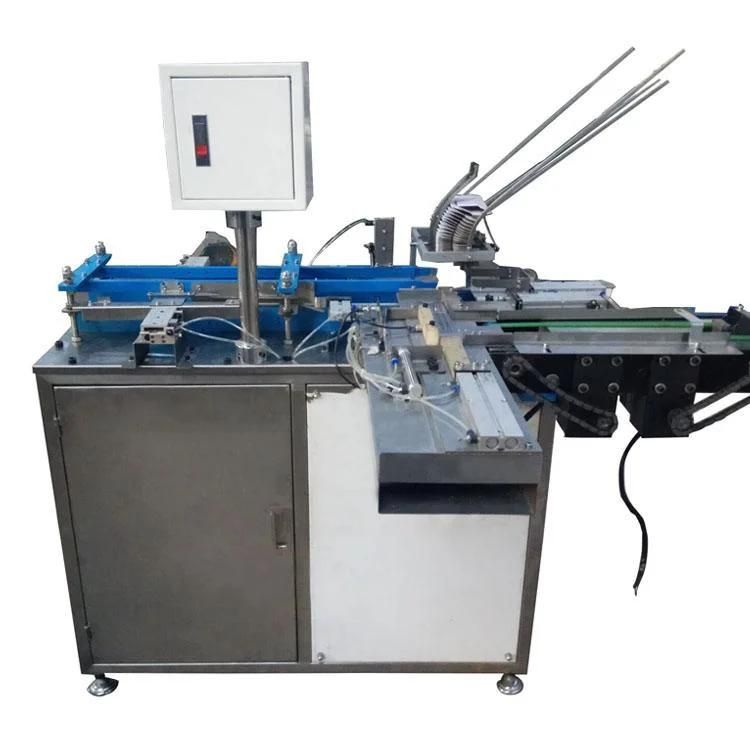

5. Automatic Staple Packing Machine

Power of main motor: 80W
Max. Designed capacity: 40 boxes/min
Machine dimension: 1.2×1.1×1.5m(L×W×H)
Machine weight: about 150Kg
Size of carton: max. 125×45×30mm(L×W×H)
min. 120×20×15mm (L×W×H)
Noise:less than 85 db

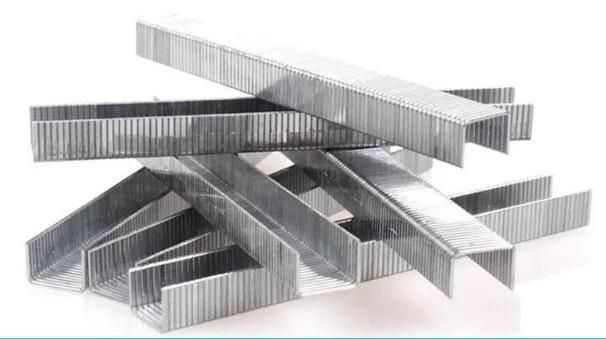

Finished Products

Commercial T F Brad Nails Making Machine

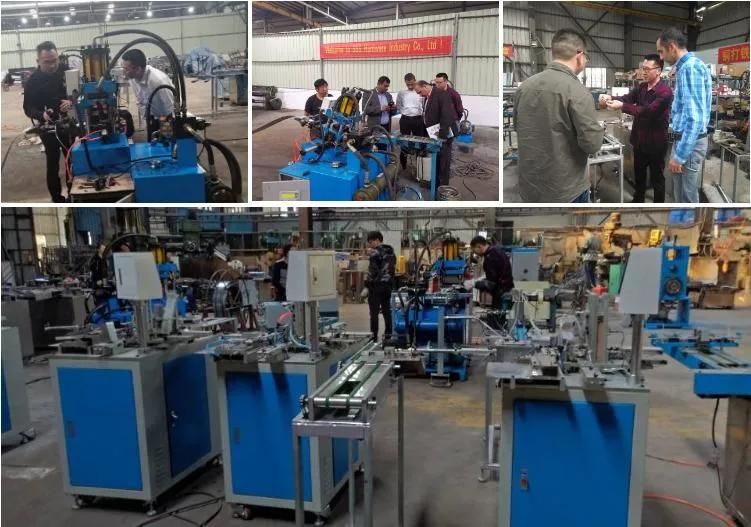

Our Customer
Commercial T F Brad Nails Making Machine

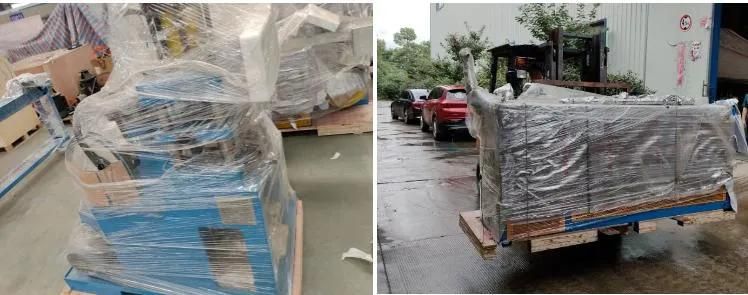

Packing and Delivery
Commercial T F Brad Nails Making Machine
1. Shipping port: Shanghai
2. Validity: within 30 days
3. Payment terms: 30% T/T down payment in advance and 70% before shipment
4. Warranty: 1 year from date of installation
5. Installation/Operation/Service/Maintenance Manual: Provided In English
6. In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.

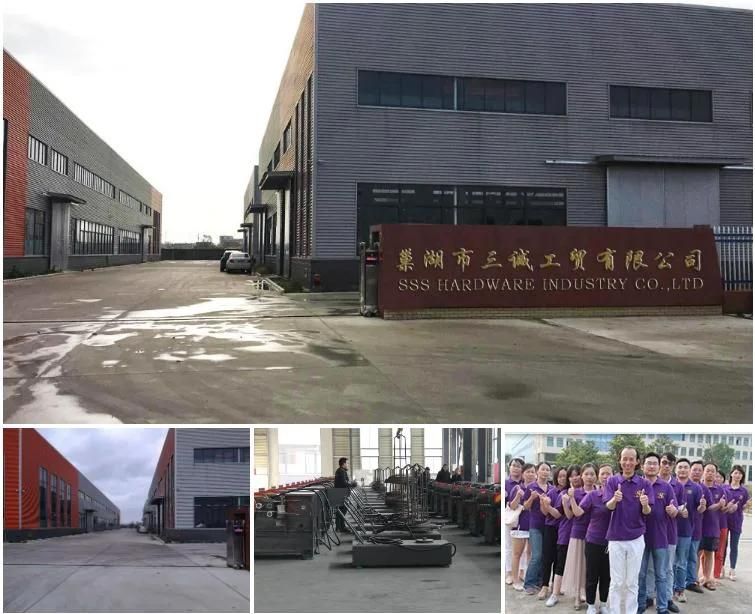

Our Company

Commercial T F Brad Nails Making Machine
 SSS HARDWARE INDUSTRY CO., LTD. specializes in thread rolling machine, nail making machine, high speed nail making machine, wire collating machine, nail polishing machine, wire drawing machine, staple making machines and all kinds of nails .   Our factory covers an area of 60,000 square meters and owns 300 sets of equipment. We are supported by seven branch work plants to ensure our good quality and prompt delivery. Quality is our priority and your satisfaction is what we are striving for.

 Our products are very popular in UK , Italy, Germany, France, Poland, Slovenia, Bulgaria, Belarus, Serbia, Russia, Canada, America, Mexico, Korea, Brazil, Argentina, Colombia, Guatemala, Venezuela, South Africa & New Zealand. You can totally rest assured of our guaranteed quality and our good after-sales service. Please feel free to contact us for more details including prices.

 Looking forward to cooperating with you soon based on our all-time guaranteed quality, our best price and service !
