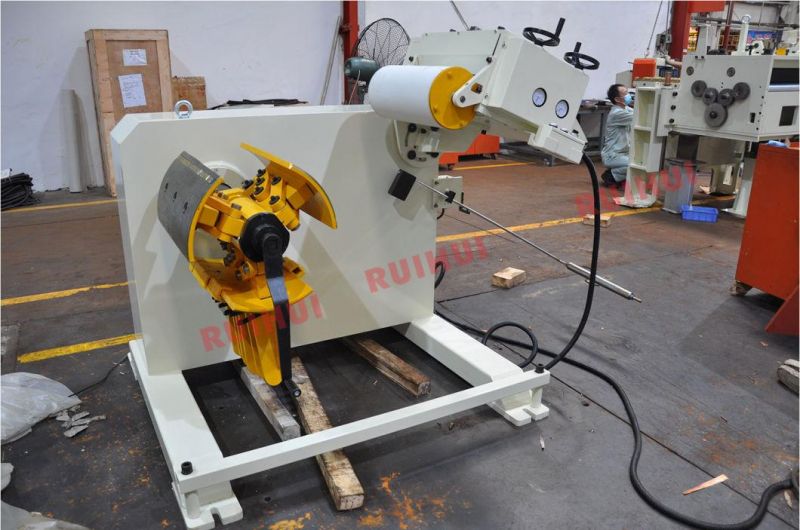

Ruihui Automatic Press Feeding System 2-in-1 Uncoiler & Coil Straightener (RGL-200)
GUANGDONG RUIHUI INTELLIGENT TECHNOLOGY CO., LTD.- After-sales Service:2 Hours Reply,7*24 Online Serves
- Type:Balance Roller Straightening Machine
- Usage:Coiled Material Straightening
- Voltage:380V
- Automatic Grade:Automatic
- Principle:Large Deformation
Base Info
- Model NO.:RGL-200
- Certification:TUV, CCC, ISO9001, CE
- Warranty:12 Months
- Customized:Customized
- Condition:New
- Thickness of Material(mm):0.3~3.2
- Width of Material(mm):200
- Material Weight(Kg):1000
- Line Speed:16
- Straightener Roll:Top 3,Bottom 4
- Main Motor:Yaskawa Japan
- Colour:Customized
- Extent Expansion:460-520mm
- Mandrel Expansion:Manual
- Power Supply:3 Phase 220V,380V,50Hz
- Transport Package:Wooden Box or Vacuum Packing
- Specification:1670*1370*1800
- Trademark:RUIHUI
- Origin:China, Dongguan
- HS Code:8462299000
- Production Capacity:50 Sets Per Month
Description
Overview
Line Speed(m/min) 16 Straigtener Roll(Qty) Top3 /Bottom 4 (4 Bottom Rolls have Drive Function) Pinch Roll(Inlet/Outlet)(Qty) Inlet:2 Outlet:2 Max.Meterial weight(kg) 1000 1000 1500 2000 2000 Extent Expansion(mm) 460~520 Coil O.D.(mm) 1200 1200 1200 1200 1200 Main Motor 1 2 2 3 3 Mandrel Expansion Manual Power Supply 3 Phase 220V/380V/50
Company Profile
Certifications
Why choose us?
1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval;
Product Description
Product Parameters
0.3~3.2Detailed Photos
