• Model NO.：S45 series
• Certification：ISO9001
• Type：Sand Casting
• Transport Package：Custom
• Trademark：DL
• Origin：China
• HS Code：4200
• Production Capacity：500

Basic Info.

Model NO. S45 series Certification ISO9001 Type Sand Casting Transport Package Custom Trademark DL Origin China HS Code 4200 Production Capacity 500

Product Description

Qingdao Dingli Machinery Co., Ltd. is located in the beautiful seaside-Qingdao Pingda. the company set research,manufacturing,installationandcommissioning,after-sales service in one. It mainly produces resin sandproductionline,clay sandproductionline,coated sandproductionUne equipment, various sand treatment single machine equipment,etc. The company has advance casting machinerymanufacturinganddevelopmenttechnology,theproductionof products can full meet theinternationaland domestic market demand.

The company has excellent design and R&D team, skilledconstructionteam, domestic leadwi casting equipment design concept,perfect after-sales service system, is willing to cooperate with the majority of foundryenterprisesto create a better tomorrow.

In line with the"down-to-earth, integrity-based, focus on service,continuousinnovation"businessphilosophy,throughcontinuousefforts. We use our own efforts and focus on thedevelopmentof a series of perfectprocessingequipment to meet the different needs of users.

Working principle:

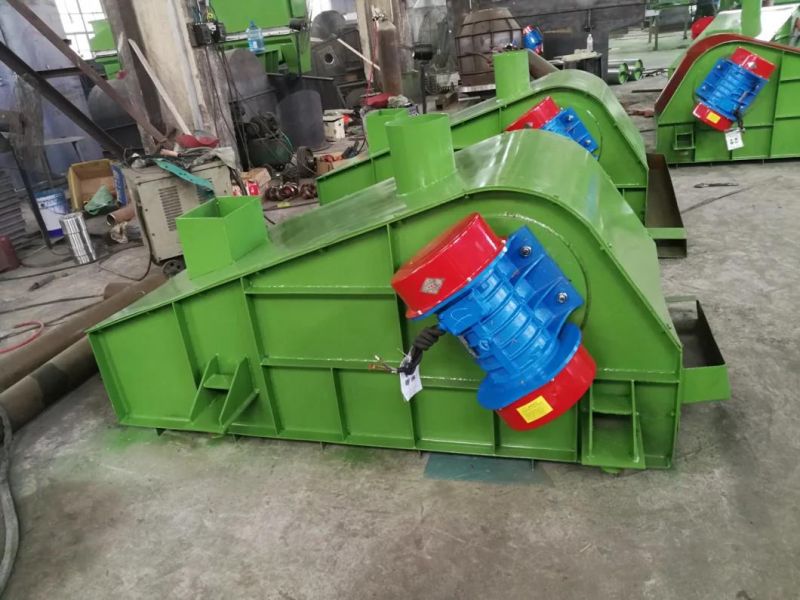

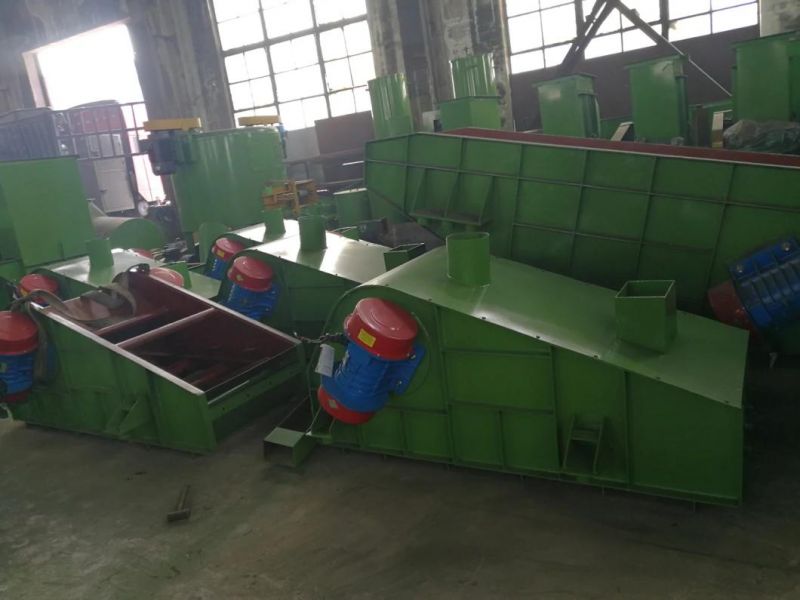

This series of sand screening machine is composed of two vibration motors installed on both sides of the screen frame and reverse rotation, according to the principle of synchronous pursuit to make synchronous rotation, so that the screen body for linear motion, the material is continuously thrown up and screened. According to the discharge requirements of waste tank, it can be divided into three forms: front discharge, left discharge and right discharge.

Parameters Model	S456	S457	S458	S4510	S4512
(mm) Screen width(mm)	600	650	800	1000	1200
(mm) Operating amplitude(mm)	3	3	3~3.5	3~3.5	3~3.5
(kw) Vibration motor(kw)	2×0. 75	2×1.1	2×1.5	2×2.2	2×3
(m3/h)Productivity(m3/h)	20	30	50	70	100

Main technicalparameters


Parameters Model	ZS456	ZS457	ZS458	ZS4510	ZS4512
(mm) Screen width(mm)	600	650	850	1000	1200
(mm) Operating amplitude(mm)	3	3	3~3.5	3~3.5	3~3.5
(kw) Vibration motor(kwJ	2×1.1	2×1.5	2×1.5	2×2.2	2×2.2
(m3/h)Productivity(m3/h)	20	30	50	70	100
