• Model NO.：CY-VTC-3RF
• Maximum Power：200W
• Rotate Speed：1~10rpm Adjustable
• Chamber Material：Stainless Steel
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：Customized
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-VTC-3RF Maximum Power 200W Rotate Speed 1~10rpm Adjustable Chamber Material Stainless Steel Warranty One Year Transport Package Wooden Case Specification Customized Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

Vacuum sputtering plating machine Magnetron Sputter PVD Coater

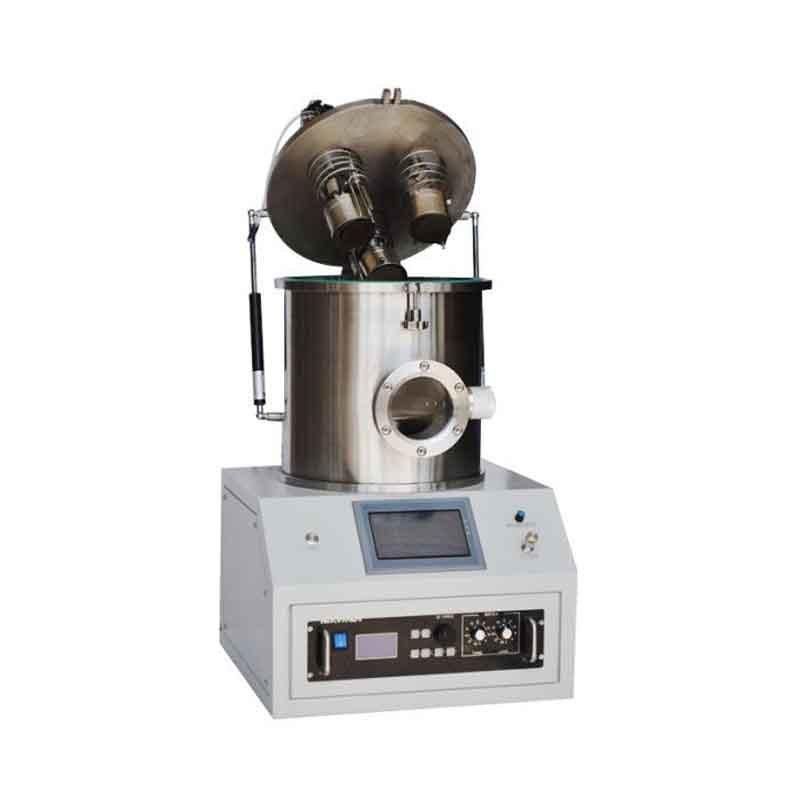

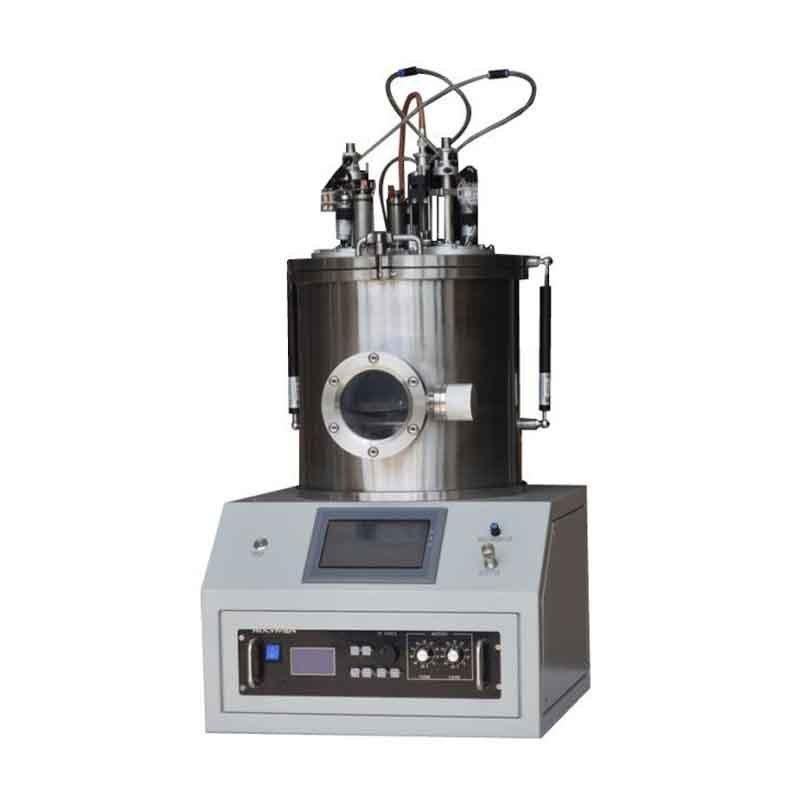

Magnetron Sputter PVD Coater introduction:The instrument is a three-target magnetron coating machine with three two-inch magnetron target heads. The tilt angle of the target head and the distance from the sample stage are adjustable. In order to facilitate the experimental operation, the coating machine is also equipped with an electric baffle, which can directly control the opening and closing of the baffle through the display screen. The coating machine is equipped with a 100W RF power supply. By manually switching the output lines, three target heads can share one power supply (not simultaneous), thereby enabling operation of plating multiple or multiple layers of membranes in a single experiment.
The device is compact and well designed and can be placed on the desktop, making it ideal for lab purchases.
This set of configuration does not contain a vacuum system, customers can choose the high vacuum system that meets the requirements according to your own needs.

Magnetron Sputter PVD Coater technical parameters:

Product name	Three-target RF magnetron sputtering coating machine
Product model	CY-VTC-3RF
Supply voltage	AC220V, 50Hz
RF power supply	0~100W continuously adjustable
Maximum power	200W
Chamber material	stainless steel
Chamber size	O.D.φ300mm x 300mm
Magnetron sputtering head	3x2"

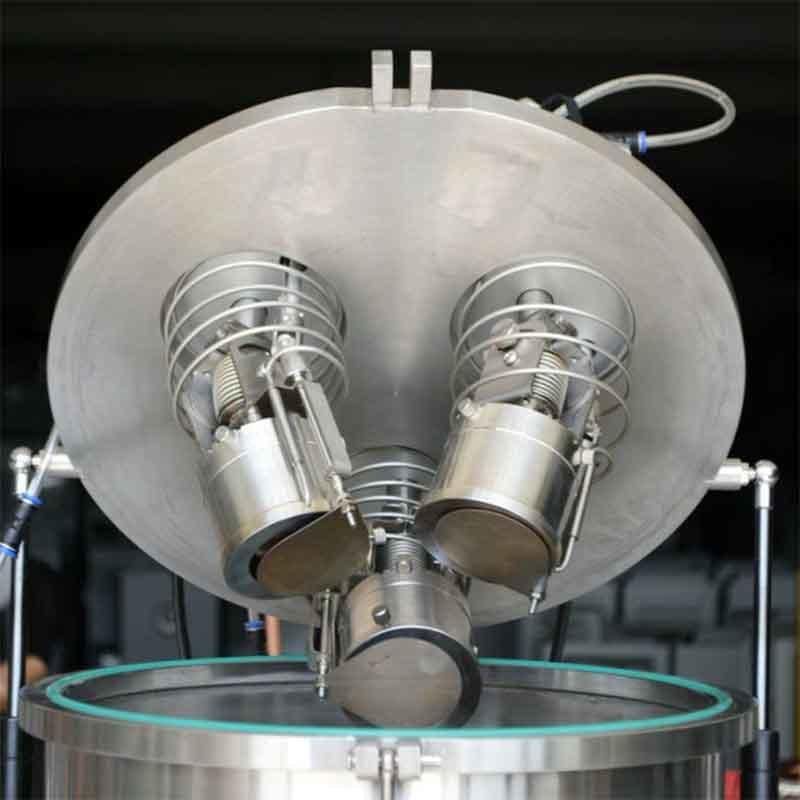

Magnetron target parameter	Adjustable tilt angle 0~25° The distance from the target to the sample stage is 50~80mm Each target head is equipped with an electric baffle Cooling method is water-cooled, need to be equipped with 10L/min water chiller
Sample stage parameters	Size: φ185mm Speed: 1~10rpm adjustable Heating up to 500°C Temperature control accuracy: ±1°C

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.



Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service
