• Model NO.：Z28-200
• Warranty：24 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Product Name：Thread Rolling Machine
• Rolled Thread Range：5mm--65mm
• Voltage：220,380,Customized
• Power：2.2kw
• Weight：2800kg
• Dimension：2500*1450*1650mm
• Max Thread Length：100mm
• Capacity：4-25(PCS,Min)
• Maximum Rolling Pressure：200kn
• Application：Process of Screw Thread
• Transport Package：Standard Export Wooden Case Packing
• Specification：weight 2800kg
• Trademark：Greatcity
• Origin：China
• HS Code：8462419000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. Z28-200 Warranty 24 Months Customized Customized Advantage Use Widely Condition New Product Name Thread Rolling Machine Rolled Thread Range 5mm--65mm Voltage 220/380/Customized Power 2.2kw Weight 2800kg Dimension 2500*1450*1650mm Max Thread Length 100mm Capacity 4-25(PCS/Min) Maximum Rolling Pressure 200kn Application Process of Screw Thread Transport Package Standard Export Wooden Case Packing Specification weight 2800kg Trademark Greatcity Origin China HS Code 8462419000 Production Capacity 5000PCS/Year

Product Description

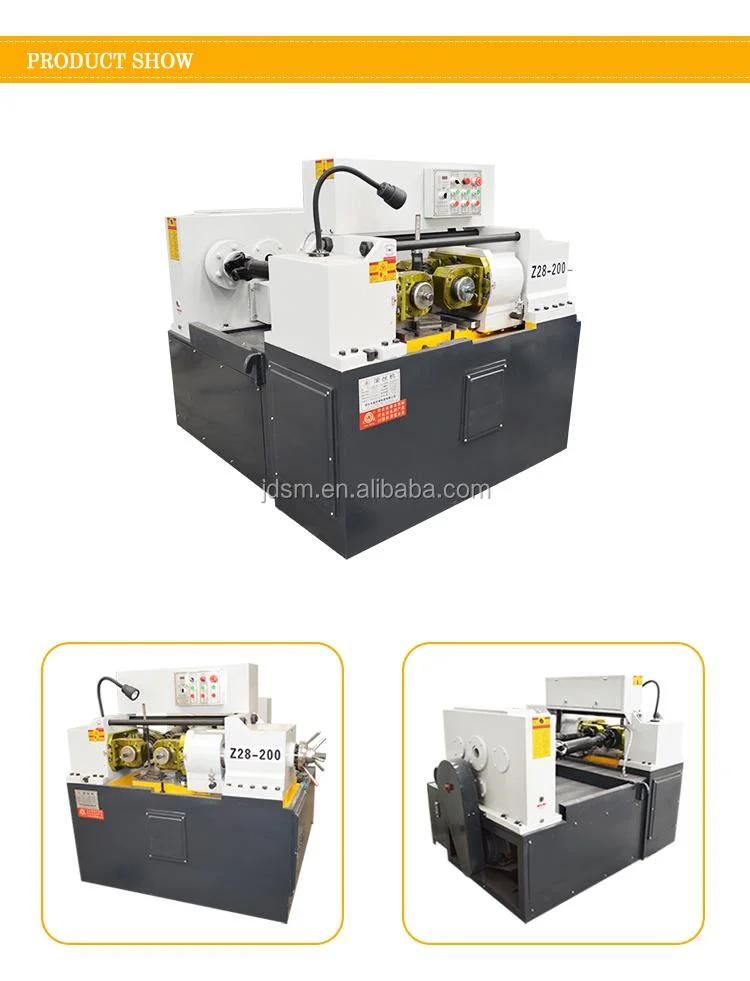

Hot sale screw rebar thread rolling machine Z28-200 with large processing capacity


  The Z28-200 thread rolling machine is used to rolling forming 5-65mm straight thread, and inclined thread in cold state. It is easy operate, is good equipment for producing nonstandard screw thread and standard bolts.



      The Thread rolling machine can variate in the fifth gear on a large scale in more areas and at a high level with strong processing ability.


              Technical parameter of the thread rolling machine Z28-200



1	Rolling diameter	5-65mm
2	Outer Diameter of rollers	120-170mm
3	Inner Diameter of rollers	75mm
4	Max rolling  pressure	200KN
5	Spindle center distance	150-270mm
	Main axis	5°
	hydraulic auto feeding time regulation range	0.1-99.9s
	cease time regulation range	0.1-99.9s
6	Active power(main axis transmission power)	11kw
7	Hydraulic power	2.2kw
8	Dimension	2500*1450*1650
9	Net Weight/Gross Weight	2800kg/2850kg

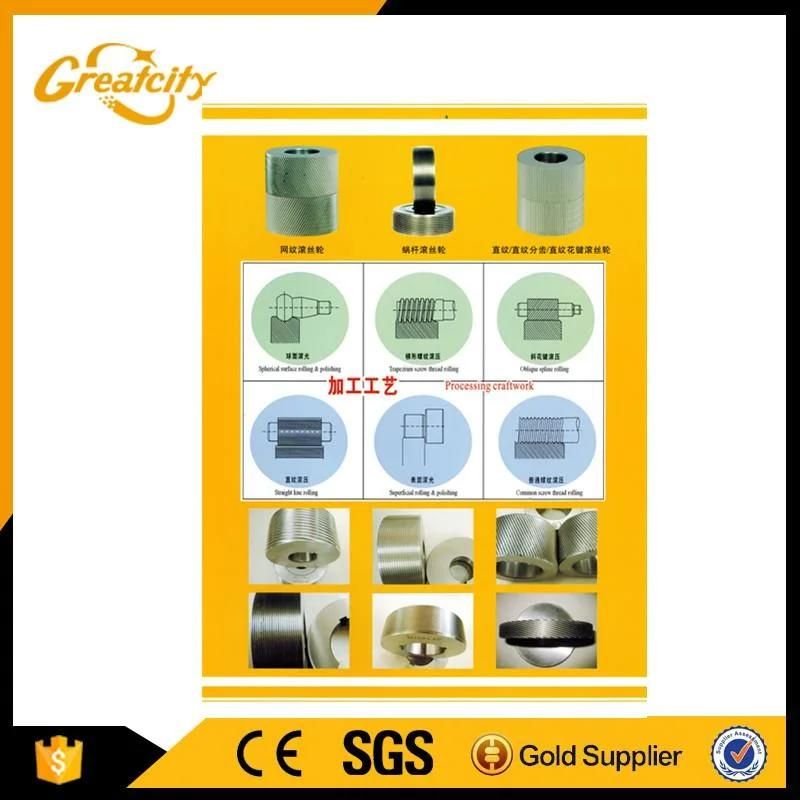

      The thread rolling machine is mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread. It also can do the rolling process, forming, slidabrading, knurling etc..



    The thread rolling machine apply for all kinds of carbon steel, alloy steel and non-ferrous metals, the elongation is more than 10%, the compressive strength is less than 100 KGF/m m2.



Features of the thread rolling machine :



The transimission adopts gear mudule and makes large output so that we solve the problems of processing trapezium thread, modulus thread and diffenent types thread by using the same type thread roller.


Company Information:

     Xingtai Judu Technology Co., Ltd. is a professional equipment manufacturer integrating scientific research, production and sales. Since its establishment, Judu Machinery has been integrated with domestic and foreign technologies, and the technical team has continued to develop and innovate products. Our company specializes in producing PE plastic/non-woven shoe cover machine, disposable shower cap machine, PE glove machine, disposable plastic bag making machine and a series of new equipment developed for non-woven fabric and plastic film; pillow packaging machine, Various packaging equipment such as vertical packaging machines; various metal wire bending machine series. It also provides customized production line services for customers. Judu has always been adhering to the business philosophy of "impress the market with integrity, occupy the market with quality, and win the market with service", as well as perfect pre-sales technical guidance and after-sales technical support services to show corporate image with quality! Welcome new and old customers to visit and buy!
Packaging and shipping :


packaging information: standard export  wooden packing. you can by sea or air. We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.

delievery time: 7-15 days after receiving the deposit




Our Services
1. Help you choose the most suitable machine.

2. Making the machine according to your request.

3. Give you machine's details  for help you use the machine more better.

4. One year warranty

5. Free repair whole using life without extra charge

FAQ


1. Do you have any warranty?



Yes, we have. One year warranty on host machine is given. Six months free replacement warranty for spare parts.



2. How is your after-sale service?



We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.



3. What certification do you have?



All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.



4. Will you teach how to use the machine?



Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily.  It is easy to operate by anyone with the instructions.



5. How about the shipment?



The machine will be shipped within 2-3 days after the receipt of your payment.



6. Can visit your factory?



 Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
