• Model NO.：YX19-76.2-762,838
• Advantage：Easy to Maintenance
• Condition：New
• Dimension：6000*1500*1500mm
• Hydraulic Power：2.2kw
• Motor Power：5.5kw
• Voltage：380V,50Hz,3pH
• Material Thickness：0.4-0.6mm
• Processing Speed：8-12m,Min
• Forming Step：16 Steps
• Material Width：914,1000mm
• Effective Width：762,838mm
• Height of Roof：19mm
• Transport Package：Standard Export Package
• Specification：SGS
• Trademark：XHH
• Origin：Xiamen of China
• HS Code：84552290
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. YX19-76.2-762/838 Advantage Easy to Maintenance Condition New Dimension 6000*1500*1500mm Hydraulic Power 2.2kw Motor Power 5.5kw Voltage 380V/50Hz/3pH Material Thickness 0.4-0.6mm Processing Speed 8-12m/Min Forming Step 16 Steps Material Width 914/1000mm Effective Width 762/838mm Height of Roof 19mm Transport Package Standard Export Package Specification SGS Trademark XHH Origin Xiamen of China HS Code 84552290 Production Capacity 20 Sets/Month

Product Description

Specification

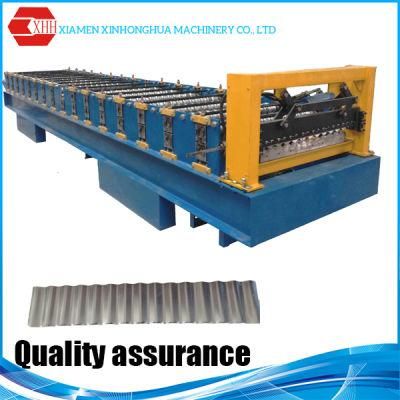

The detail information of YX19-76.2-762/838 Metal Tile Corrugated Roof Sheet Making Machine are as following:

Main Accessories:
(1) Main Forming Machine for corrugate roofing;
(2) 5 Tons Manual Uncoiler;
(3) Manual Pre-cutter;
(4) Hydraulic System;
(5) PLC Computer Controlling System With Touch Screen
(Brand: Delta or Schneider, or Siemens, choose any one)
(6) Hydraulic Forming Cutter;
(7) Run Out Table(3 PCS);
(8) Tools;
(9) Operation Manual.

Size	6000*1500*1500mm
Weight	4000KGS
Hydraulic Motor Power	2.2KW
Motor Power	5.5KW
Forming Steps	16steps
Processing Speed	8-12m/min
Voltage	380V/50HZ/3PH
Height of Roofing	19mm
Effective Width	762/838mm
Feeding Material Width	914/1000mm
Thickness	0.4-0.6
Material of principal axis	high grade 45# forged steel
Material of roller	45#steel with hard chrome plating
Material of blade	Cr12 mould steel with quenched treatment 60-62°C
Material for frame of machine	Fine welded structural steel
