Automatic CNC Pipe Cutting Machine

Nanjing Auto Electric Co., Ltd.
  • Power Source：USA Miller
  • Suitable for Material：CS,Ss,as
  • Suitable for Pipe Dia. Range：2-60"
  • Type：Pipe Cutting Machine
  • Application：Oil and Gas Offshore &Shipbu,
  • Type for Cutting Machine：Plasma Cutting Machine

Base Info

  • Model NO.：AUTO
  • Certification：ISO 9001:2008, Ce
  • Automation：Automatic
  • Condition：New
  • Transport Package：Packed in Container
  • Specification：SGS, ISO9001: 2008
  • Trademark：NAEC
  • Origin：China
  • HS Code：85153190
  • Production Capacity：200 Sets,Year

Description

Basic Info.

Model NO. AUTO Certification ISO 9001:2008, Ce Automation Automatic Condition New Transport Package Packed in Container Specification SGS, ISO9001: 2008 Trademark NAEC Origin China HS Code 85153190 Production Capacity 200 Sets/Year

Product Description

Automatic CNC Cutting Machine


It has features as following:
l. Several models available (16"type, 24" type, 32" type, 48" type);
2. Cutting precision: + 1mm.
3. PLC system control;
4. High efficient pipe cutting with automatic self-measuring, pipe end beveling; intersection line profiling for both main and branch pipe function;
5. Multi-axis are available (one axis, two axis, three axis, five axis, six axis);
6. Widely used for C.S / Alloy Steel pipe fabrication.

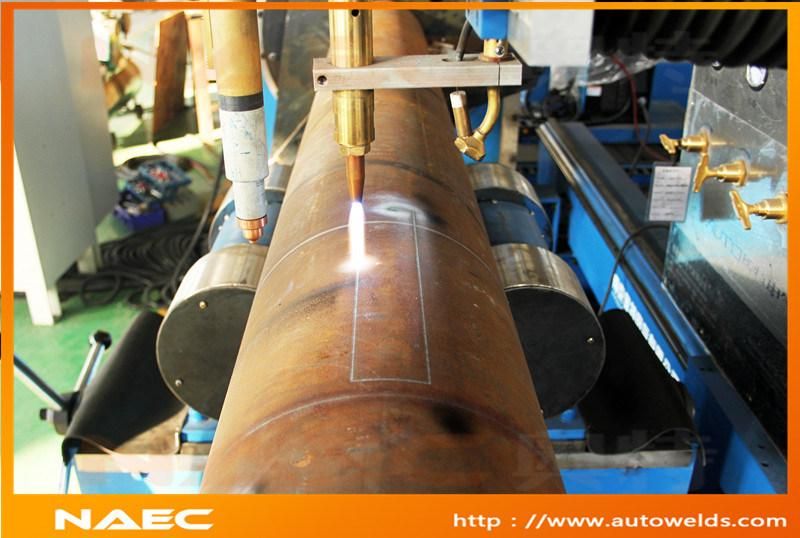

Automatic CNC Pipe Cutting Machine
Automatic CNC Pipe Cutting Machine

NAEC CNC Flame/Plasma Pipe Cutting and Profiling Machine (Chuck type) can be used for the cutting and beveling of various pipe materials in fixed angle, different pipe end shapes, grooves and holes. By fixing workpiece on chuck, it is able to realize cutting and beveling pipes automatically with selected parameters through Programmed Control System.

The combination of automatic programming and manual programming can realize the jacking cutting, with the function of cutting uprightly, cutting in any angle (manual adjustment), cutting with angle turning, multi-section elbow unfold cutting, intersection line cutting of plug-type/riding-type, etc. It is with characteristics of reasonable organization, easy operation, and high efficiency.

It is widely used in the industry of oil and gas, refinery, petro-chemical, shipping building, offshore, power plant, nuclear plant, etc.

For more information, pls contact us, thank you!

  NAEC----You preferred partner for fabrication solution!
Suitable for industries of: OIL AND GAS, REFINERY FACILITIES, OFFSHORE &SHIPBUILDING, POWER PLANT, ETC
Reference: CCC, Larsen & Toubro, PEC, Rotary Engineering, Petrol Steel, JSL, Tamimi, AIM, CNPC, SINOPEC, CNOOC, CNCEC, etc.
