• Model NO.：4-72NO
• Certification：CE, RoHS, GS, ISO9001
• Type：Sand Casting
• Transport Package：International Standard or Customized
• Specification：According to equipment
• Trademark：dingli
• Origin：China
• HS Code：8474802000
• Production Capacity：5000

Basic Info.

Model NO. 4-72NO Certification CE, RoHS, GS, ISO9001 Type Sand Casting Transport Package International Standard or Customized Specification According to equipment Trademark dingli Origin China HS Code 8474802000 Production Capacity 5000

Product Description

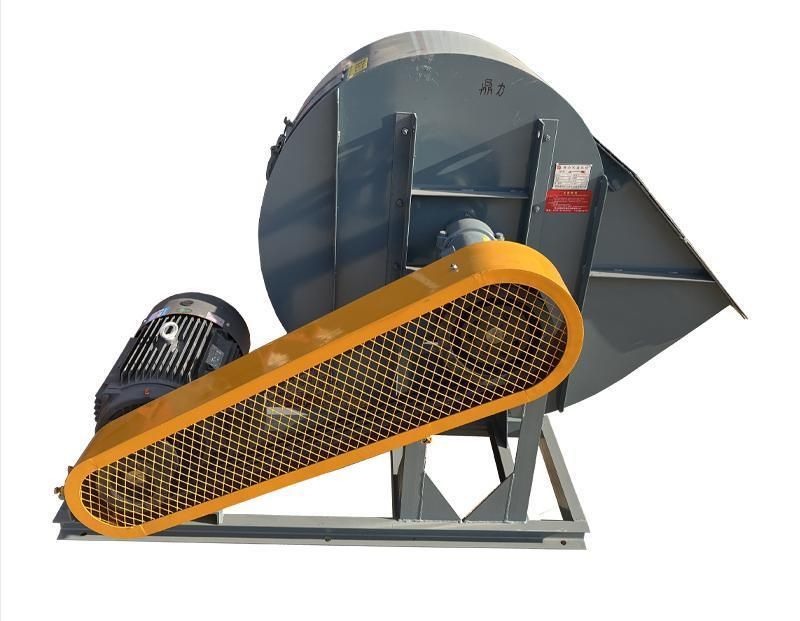

Dust removal induced draft fan model and parameters, 2 fan motor power: 2.2kw, 3kw, 4kw, 5.5kw, 7.5kw, 11kw, 15kw, 18.5kw, 22kw, 30kw, 37kw, 45kw, 55kw, 75kw, 90kw, 110kw, 132kw , 200kw, 220kw, etc. The fan unit has the following models: 4-72no 2.8a (1.5kw), 4-72no 3.2a (2.2kw/1.1kw), 4-72no 3.6a (3kw/1.1kw), 4-72no 4a (5.5kw/1.1 kw), 4-72no 4.5a (7.5kw/1.1kw), 4-72no 5a (15kw/2.2kw), 4-72no 6a/6d (4kw/1.5kw), 4-72no 8d (18.5kw/5.5kw) /3kw), 4-72no 10d (18.5kw/55kw/7.5kw), 4-72no 12d (45kw/18.5kw), etc. The number of kilowatts of the motor is in brackets.
The fan of the bag filter is an important part of the bag filter, and it is also an important indicator for judging the dust capture ability. The performance of the fan is different, and the selection method is also different. In addition to meeting the requirements for the air volume and pressure loss of the dust removal system, the fan should also consider the requirements of the fan itself for efficient operation. It should be determined according to the dust removal system and the selection parameters of the fan manufacturer. When the air volume and air pressure of one fan in a production line cannot meet the requirements, two fans (two identical fans) can be connected in series or parallel to meet the requirements of air volume or air pressure.
The dust removal fan can absorb the dust in the workshop, prevent the inhalation of the human body, and is beneficial to human health. The working principle of the general centrifugal fan is basically the same. When the impeller rotates at a high speed, all parts of the air in the impeller are also driven to rotate together. At this time, the air at the center of the impeller will be thrown to the edge of the impeller due to centrifugal force. , a vacuum is formed at the center of the impeller, so the external air continuously flows in under the action of the pressure difference and is supplemented to the center of the impeller, so that the fan has the ability to inhale air. Since the speed of the air leaving the impeller blades during rotation is much greater than the airflow speed in the space around the impeller, part of the kinetic energy of the gas is converted into static pressure energy during the movement. The space presents a positive pressure, so that the fan has the ability to transfer the gas into the guide wheel, and in the guide wheel, part of the kinetic energy is converted into static pressure energy, and then flows into the motor, and at the same time, the motor is dissipated and pressed out through the outlet.
FAQ:
Q1. Where is your factory? How can I visit it?

A : Our factory is located in Qingdao City, Shandong Province, China. You can fly to Qingdao Jiaodong Airport and we will pick you up.
Q2. Do you produce machine specific parameters according to samples?
A: Yes, we produce the machine you want according to your sample or technical drawing. Usually a machine has different sizes and technical requirements, such as sand mixing equipment, screening equipment, cooling equipment, etc.
Q3. What is your sample service?
A: If we have the ready-made machine, we can provide the sample test that the customer wants to produce, but the customer must pay the sample shipping cost.

Q4. What is the MOQ for your machine?
A: Usually our MOQ is 1 set.
Q5. Do you test all machines before delivery?
 A: Yes, we do 100% testing before delivery.
Q6: How do you keep our business in a good long-term relationship?
Answer: 1. We maintain good quality and competitive prices to ensure our customers benefit;
2. We respect every customer as our friend, we sincerely do business with them and make friends,
no matter where they come from.

Qingdao Dingli Machinery Co., Ltd.
1. We are one of the manufacturers of metal casting machinery in China.


2. We produce clay sand processing equipment, resin sand recovery equipment, coated sand making equipment, coated sand regeneration equipment, sand drying equipment, dust removal equipment, conveying equipment, cooling equipment, magnetic separation equipment, screening equipment, mixing equipment Sand machine, etc.


3. Our machines are widely used to produce and process casting parts, metal castings, plumbing fittings, auto parts, brass, aluminum, zinc, cast iron production line valves, etc. Please contact us!

 4.We have professional technical support and after-sales service. Has the whole line of casting machines, good quality, reasonable price and fashionable design.

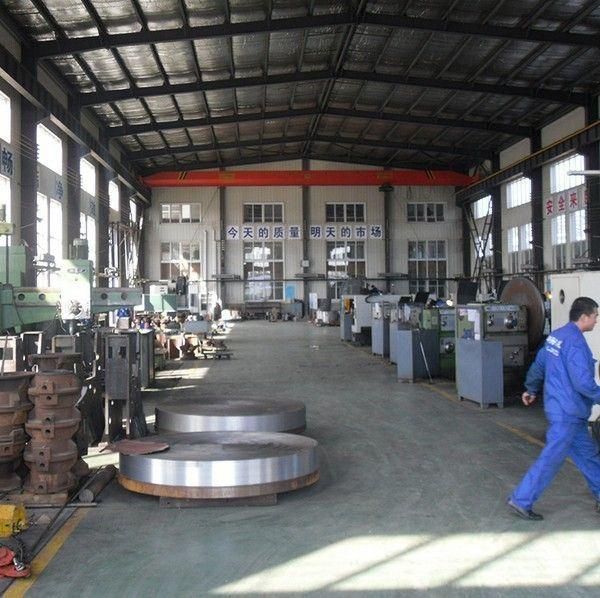

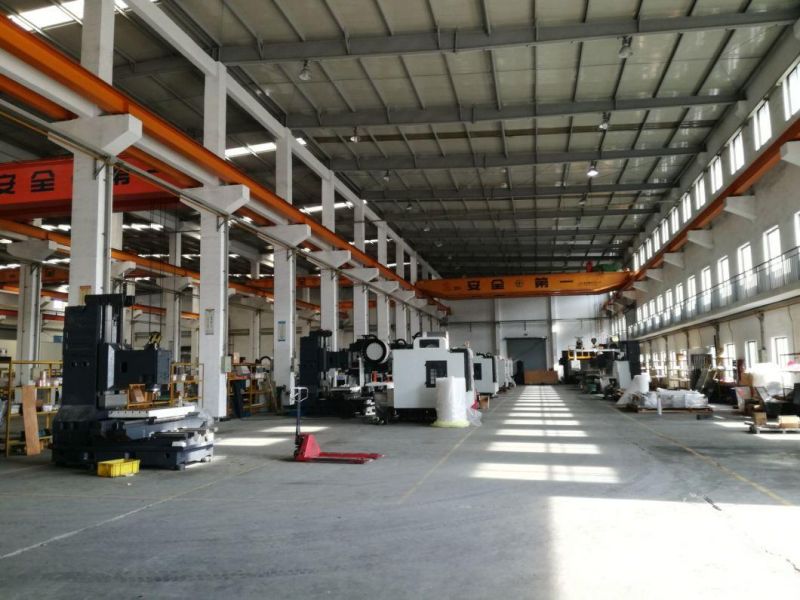

Qingdao Dingli Machinery Co., Ltd. is located in the beautiful seaside - Pingdu, Qingdao. The company integrates scientific research, manufacturing, installation and commissioning, and after-sales service. Mainly produces resin sand production line, clay sand production line, coated sand production line equipment, various sand processing stand-alone equipment, etc. The company has advanced casting machinery manufacturing and development technology, and the products produced can fully meet the needs of international and domestic markets. The company has an excellent design and development team, a skilled construction team, a domestic leading casting equipment design concept, and a perfect after-sales service system.

In line with the business philosophy of "down-to-earth, integrity-based, service-oriented, continuous innovation", through continuous efforts. We have developed a series of complete processing equipment with our own efforts and focus to meet the different needs of the majority of users.
