60mm Flange Thickness 1000mm Web Width Hydraulic Straightening Machine
Wuxi Lemar Machinery Equipments Co., Ltd.- After-sales Service：Online Video Instruction
- Type：H Beam Flange Straightening Machine
- Usage：H Beam Flange
- Voltage：380V-440V
- Automatic Grade：Automatic
- Principle：Deformation After H Beam Welding
Base Info
- Model NO.：JZJ-60
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Function：Straightening for H Beam Flange Plate
- Straightening Mode：Hydraulic
- Max Flange Thickness：60mm
- H Beam Material：Q345,Q235
- Power：Customized
- Suitable for H Beam Length：12m
- Flange Width：200-1000mm
- Input Roller Length：9m
- Output Roller Length：9m
- Colour：Customized
- Roller Material：35CrMo
- Hydraulic Station：1 Set
- Roller Hardness：HRC50-55
- Straightening Wheel Speed：≥8.9m,Min
- Delivery：45 Days
- Transport Package：Nude
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8462291000
Description
Flange straighteners are used to straighten flanges on H and I beams that have been deformed by submerged arc welding.
The flange straighteing machine has a horizontal design with a sturdy body to handle large and heavy beams with ease, and the H-beam can be Q234 or Q345.
Specification:

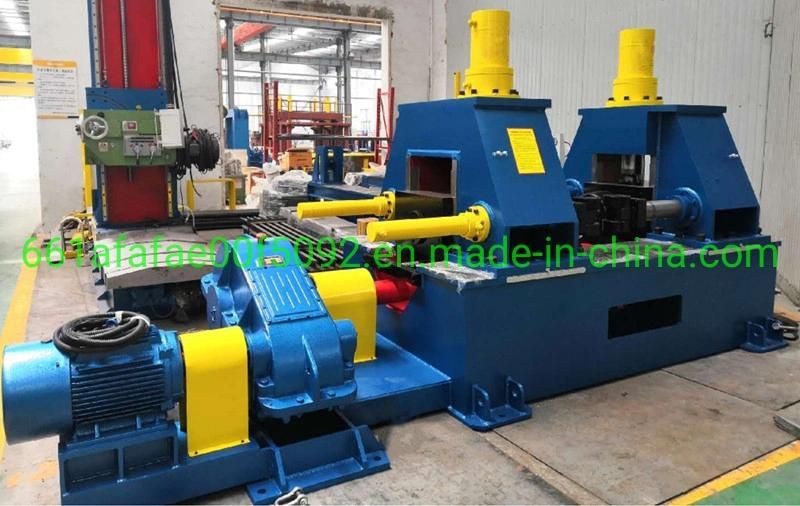

Steel structure H beam I beam 60mm flange thickness hydraulic straightening machine is composed of:
Main motor
Reducer
Active roller
Straightening roller device
Active roller lift oil cylinder
Plate clamping device
Flange plate clamping device
Flange Hydraulic Straightening Machine Frame
Hydraulic system
Electrical Control System
Our Flange Hydraulic straightening machine Features:
1.The whole machine is strong and stable, with the equipment weighing 16 tons.
2.The flange straightening machine has an electrical control box and a close -control operation box. The operating box is installed on the upper frame for easy operation.
3.The abdomen clamping is driven by two hydraulic cylinders, respectively. The flexible clamping touch the gastrointestinal joint is not easy to damage the roller, and the operation is simple.
4.The main machine host and the motor reducer are integrated, with strong structure and good use of stability. It will not affect the normal use of the device due to basic deformation
5.The hydraulic flange straightening machine host is equipped with a large -scale correction wheel. In addition, the user can take into account the use of both steel steel, and a small correction wheel (when the height of the abdomen is 200-380mm, and the thickness of the wing plate ≤16mm, replace the small correction wheel
Supply scope of H beam hydraulic straightening machine:
Why choose lemar?
1. Strong R & D and design team, professional technical guidance, let customers worry and rest assured
2. High -quality after -sales team allows you to be solved in time when encountering technical problems, which will not affect your efficiency of processing and production of H -shaped steel box beams
3. One -stop equipment supply.
4. Many years of export experience, our machine exports to UK, USA, Russia, India, Dubai, Vietnam, Malaysia, Greece, Brazil, Bulgaria, ETC.
