• Model NO.：HT-2000
• Specification：SGS
• Trademark：Hengtai
• Origin：China
• HS Code：8463300000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. HT-2000 Specification SGS Trademark Hengtai Origin China HS Code 8463300000 Production Capacity 10 Sets/Month

Product Description

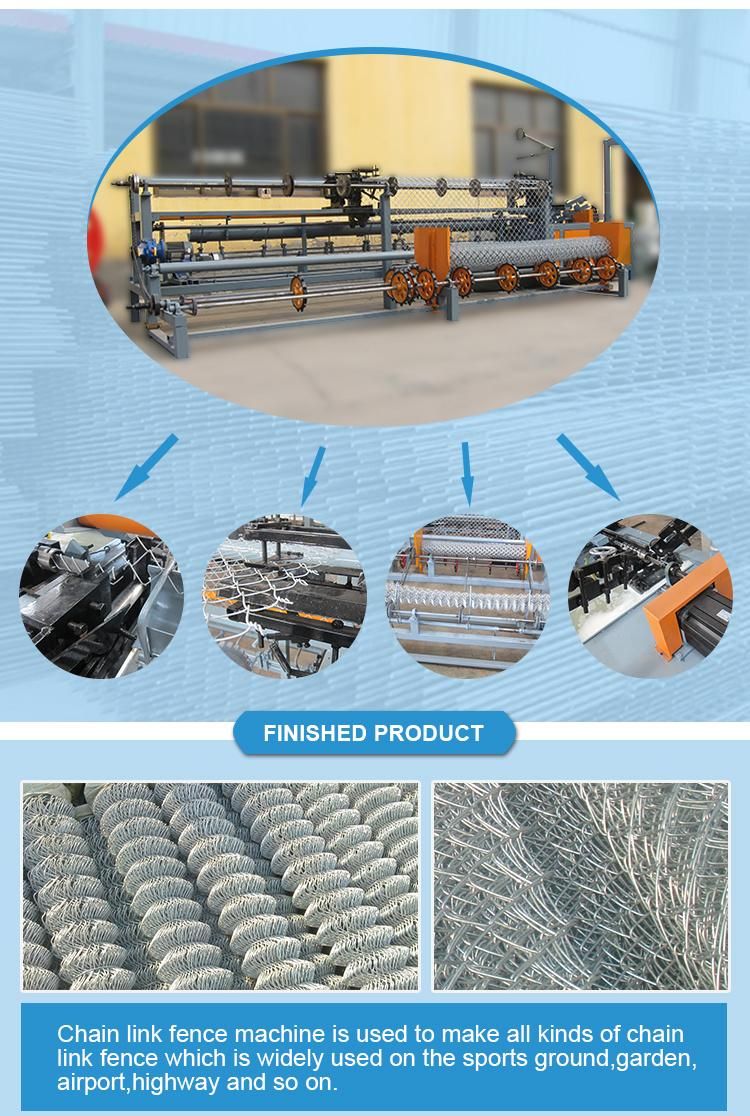

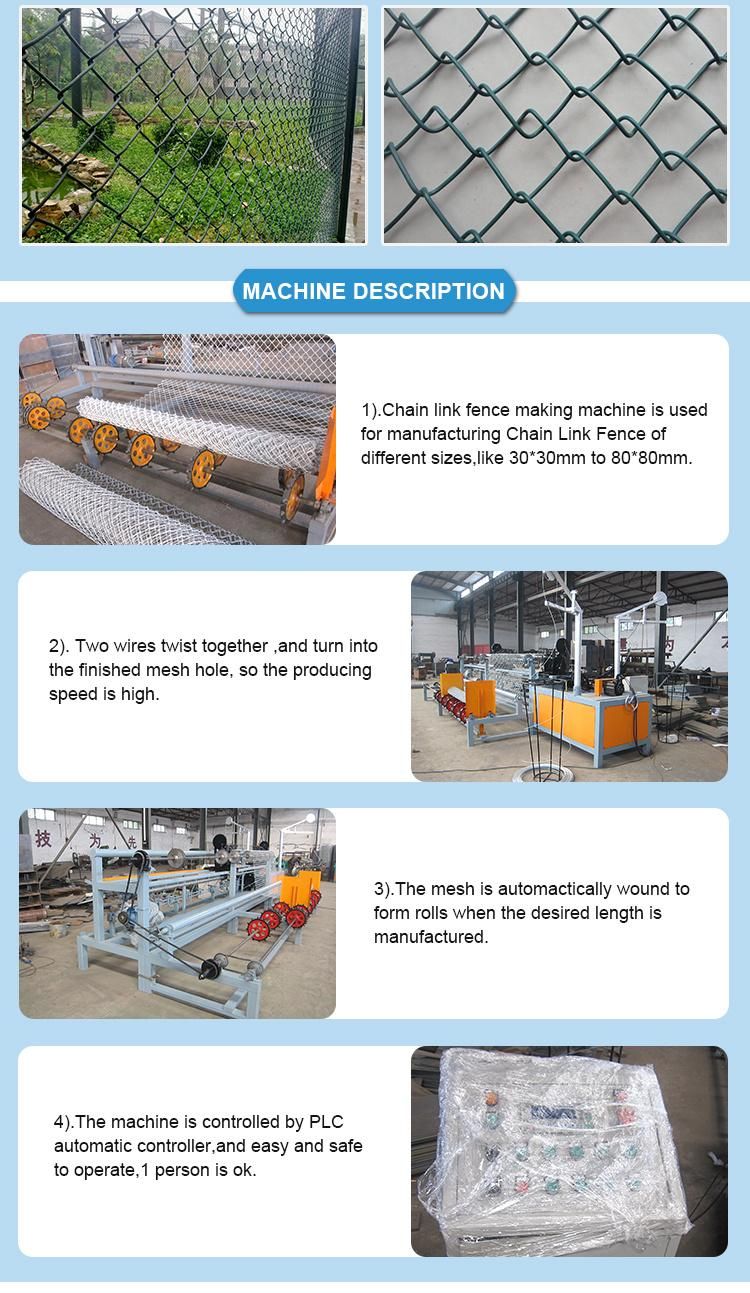

Double Wire Full Automatic Chain Link Fence Weaving MachineWorking Principle

1. The wire is taken in from the pay-off stand and passed through the dies where the diamond size takes place.Different gap sized.

2. After passing from the die, the diamond pattern wire is automatically thrown on the winding
shaft in the stitching process.

3. Once the stitching is complete, the woven is manually glided down to enable the next switch to take place.

4. The chain link is automatically wound to form rolls when the desired length is setted.

5. One side or both side of the end of net hole is twisted or with burr in edge.

6. Use rolling side machine to make it into rolls.

Advantage
1. The machine is controlled by PLC automatic controller, so only one person is needed to
operate it.

2. One wire feeding which can reduce the breakdowns.

3. Wide width weaving scope: 1.8-4.5mm.

4. The high productivity for this machine can be 100m²/h.

5. The width scope can be 600-4000mm, and we can customize it for you.

6. The mesh size can be 25x25-120x120mm, and can be changed according to the mould.

Usage
The product is wildly used as prevent for road, railway, airport, residence district, seaport,
garden, feeding and husbandry.

Main Parameter

Wire Diameter
1.8-4.5mm
Mesh Size
30x30-100x100mm
Welding Width
600-4000mm
Productivity
60-120 m²/h







If you intrest chain link fence machine,pls don't hesitate to contact me.
 Mobile:008613363125003
