• Model NO.：COLO-1864
• Condition：New
• Name：Industrial Powder Coating Oven
• Code：Colo-1864
• Voltage：220V,380V Customized
• Heating Source：Electric
• Product：Industrial Powder Coating Oven
• Materials：Rock Wool Board 100mm-150mm
• Warm-up Time：10-15mins
• Heat Temperature：180-250′c
• Delivery：10-15 Work Days
• Item：Industrial Powder Coating Oven
• Transport Package：Container
• Specification：Oven
• Trademark：COLO
• Origin：China
• HS Code：842499990
• Production Capacity：50sets,Months

Basic Info.

Model NO. COLO-1864 Condition New Name Industrial Powder Coating Oven Code Colo-1864 Voltage 220V/380V Customized Heating Source Electric Product Industrial Powder Coating Oven Materials Rock Wool Board 100mm-150mm Warm-up Time 10-15mins Heat Temperature 180-250′c Delivery 10-15 Work Days Item Industrial Powder Coating Oven Transport Package Container Specification Oven Trademark COLO Origin China HS Code 842499990 Production Capacity 50sets/Months

Product Description

COLO-1864 Industrial Powder Coating Oven

Working size: W1600xD1400xH1800mm, electrical heating
Advantages:
1.Standard type, has been sold to more than 90 counties.
2. Mature manufacturing technology, low cost and quick delivery.
3. Rapidly raise the required temperature in a short time, realize perfect curing effect.

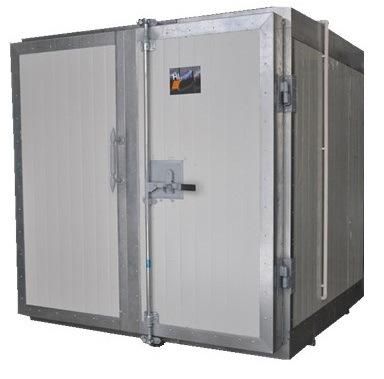

Outside View:
Material:
1 inner wall: Galvanized Steel(thickness=1mm),
2.interlayer: rock wool board(thickness=100mm), insulated, maintain the inside temperature
3.outer wall: Color Steel(thickness=0.7mm), anti-rust

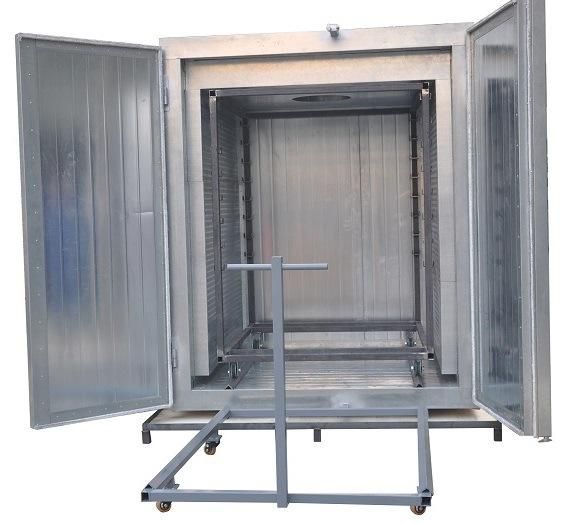

Inner View: we provide with trolley to load and unload work-pieces for your easy operation.


Detailed View:

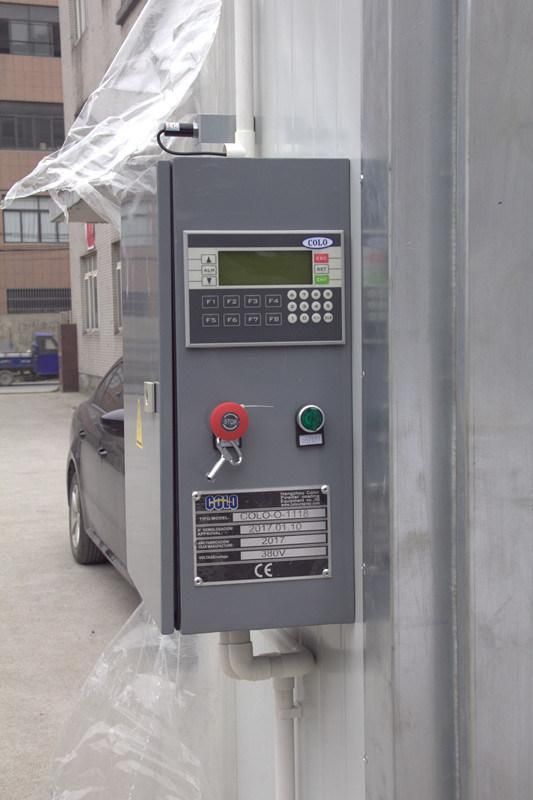

PLC control system providing high precision heating process. It offers all the features you need.
The LED display allow you to set the temperature, as well as the duration of the heating process at the desired heating temperature.
 You can setting heating time and temperature on the panel.
When the heating time arrive, the system will stop automatically.



Technical data of Industrial Powder Coating Oven
Power Supply: 380V, 50-60Hz. 3 Phase(Voltage can be Customized)
Inner Dimension: width1600 x depth1400 x Height1800mm
Overal Dimension: width1900 x depth1700 x Height2200mm
Weight: 1200kgs
Heating Type: Electricity
Heating Power: 12kw
Heating Time: 15-30min (180^oC)
Max. Heating Temperature: 250^oC
Vantilation Performance: 805-1677m^3/h
Fan motor: 0.75kw
Transportation: Trolley


Different standard size of Industrial Powder Coating Ovenfor chioce
size1 1000width x 800 depth x 1500 height
size2  1000width x 1000 depth x 1500 height
size3  1800width x 1800 depth x 1800 height
size4  1500width x 3000 depth x 1650 height
size5  1650width x 3200 depth x 1700 height
etc

Why choose us ?
1.More than 10 years manufacturing experience in electrostatic powder coating equipment

2.Provide one-stop service: reseach & development, design, production, worldwide marketing, engineer oversea installation, after-sale service.
3.Customed as you want.
4.Competitive price: we are factory. Design, production ,installation all by ourself-saving cost.
5.One year of warranty period and life long technical support.
6.Market share in Global: about 90%, is a leading factory in this filed.

More details weclome to contact us !!
