• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Coil Width：1220mm, 125mm, 147mm
• Thickness：0.8 - 1.5mm
• Line Speed：12 - 15m,Min
• Tolerance：1.5mm
• Transport Package：Wood Box
• Trademark：TGMCO
• Origin：China
• HS Code：8455221000
• Production Capacity：20 Sets,Year

Basic Info.

Customized Customized Advantage Use Widely Condition New Coil Width 1220mm, 125mm, 147mm Thickness 0.8 - 1.5mm Line Speed 12 - 15m/Min Tolerance 1.5mm Transport Package Wood Box Trademark TGMCO Origin China HS Code 8455221000 Production Capacity 20 Sets/Year

Product Description

Welcome to Taicang Global Machinery Co., Ltd
https://global-machinery1.en.made-in-china.com/

At Global Machinery, we provide Tube Mill, Roll Forming Machine, Slitting & Cut to length Line and corresponding components, and meet your customized requirements. Contact us right now!

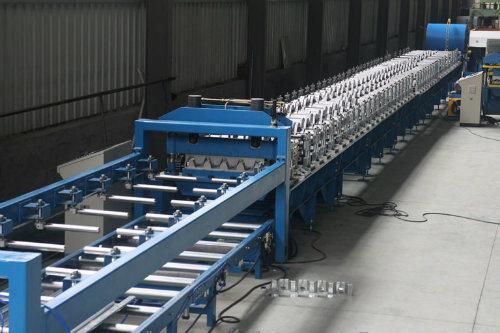

Main Specification


Coil Width	1220mm, 125mm, 147mm
Thickness of Color Steel Sheet	0.8 - 1.5 mm
Power	380 V, 50 Hz, 3 phase
Line Speed	12 - 15 m/min
Electical Contral	PLC
Tolerance	3 m ± 1.5 mm

1. Coil width: 1220mm, 1250mm, 1470mm (Material: galvanized coil)
2. Output speed: 12 - 15m/min
3. Coil thickness: 0.8 - 1.5mm
4. Tolerance: 3m±1.5mm
5. Roller station: 40 stations
6. Main motor power: 45kw (3 sets 15kw motors)
7. Hydraulic oil pump motor: 7.5kw, the pressure of hydraulic: 20Mpa
8. Frequency inverter: Panasonic
9. Computer control system, PLC control length, encoder: Omron
10. Diameter of roller: Ф110
11. Material of roller: 45# forge steel, coated with chrome
12. Material of cutter: Cr12Mov, heat treatment HRC 58-62
13. Material of main shaft: 45# advanced steel
14. Drive type: 1.2 inch double row chain
15. Dimension (L*W*H): 20000×2000×1200 (mm)

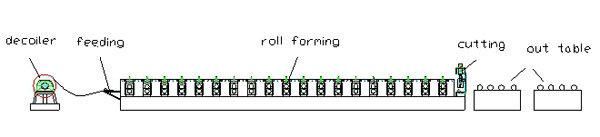

Flow Chart
















Certificate






Main Customers







 FAQ
1) Q: Will you deliver the right goods as ordered?  How can I trust you?
   A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).  We have cooperated with many customers all over the world with high market reputation, no worries.
2) Q: How to choose the Tube Mill Line?
   A: You have to inform us following details:
- The pipe material
- Round pipe range
- Square pipe range
- Rectangle pipe range
- Wall thickness range
- The pipe usage
3) Q: How to choose the Roll Forming Machine?
   A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil weight
- Cutting type
- Profiles drawings
- Other special attention
4) Q: How to choose the Slitting Line & Cut to Length line?
   A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil width
- Coil weight
- Finished sizes
- Other special attention
55) Q: Where is the nearest  airport  to your company?
   A: Shanghai Putong or Hongqiao Airport.
6) Q: How about your service?
   A:  Before sales:
- Technical Support: TGMCO will provide detailed technical information such as technical &  commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
- Apply Visa: TGMCO will provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.
After sales: TGMCO provides comprehensive After Sales Support and Service to meet our customer need.
- Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.
- Installation and commissioning: TGMCO will send our technicians to customer's workshop for supervision of installation and commission
Training of Customers' technician/workers during commission
- Breakdown Support: We offer 1 year warranty service for main crucial components except consumables
Inform immediate technical assistance and advice to customer by phone or e-mail.
Skilled and experienced engineers are capable of dealing with any type of breakdowns.
Technical service work performed in Customer's site if required.
Urgently supply mechanical or electronic components.
Fast supply of spare parts and wearing parts to cover foreseeable requirements

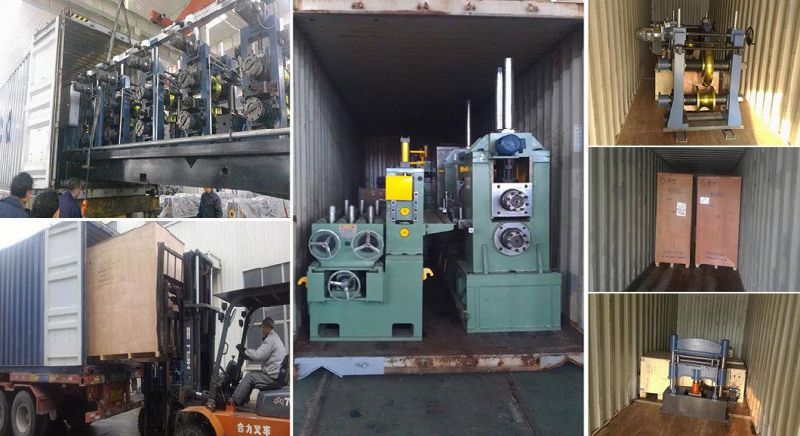

Packing & Delivery


Not only the Good Machine, but also the Most Attentive Service
Integrity Solution & Turnkey Project
Creat the Value of Steel
