• Model NO.：WX-958
• Power：50W
• Input Voltage：AC110V,AC220V
• Output Voltage：Max.100kv
• Output Current：150ua
• Powder Output Capacity：550g,Min.
• Powder Hopper：45L
• Work Temperature：-10°c-45°c
• Packing Sizes：48.5X 47X59cm
• Gross Weight：22kg
• Transport Package：Carton
• Specification：600*490*480mm
• Trademark：WANXIN
• Origin：China
• HS Code：84243000

Basic Info.

Model NO. WX-958 Power 50W Input Voltage AC110V/AC220V Output Voltage Max.100kv Output Current 150ua Powder Output Capacity 550g/Min. Powder Hopper 45L Work Temperature -10°c-45°c Packing Sizes 48.5X 47X59cm Gross Weight 22kg Transport Package Carton Specification 600*490*480mm Trademark WANXIN Origin China HS Code 84243000

Product Description

Product Brief

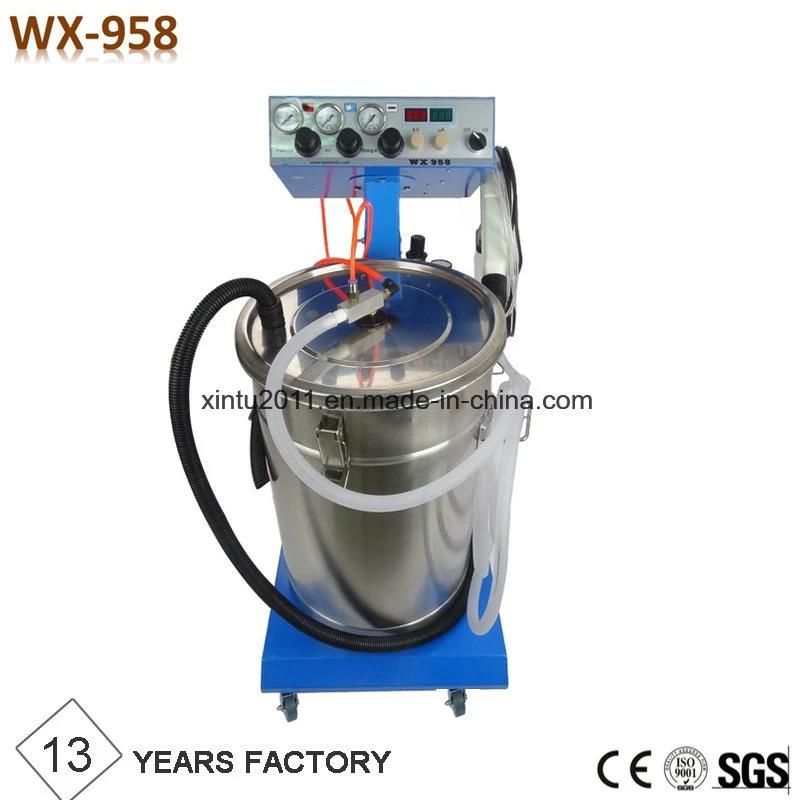

Product Name: Electrostatic powder coating system machine
Model No.: WX-958

Features:

• With flat and smooth appearance and workpiece with no deep corners.
• High sensitivity and durability.
• Thickening resistance to puncture the tip, the low maintenance rate.
• With circuit protection, voltage self-adjusting function, to ensure a perfect spraying effects.
• High voltage module near the nozzle, low voltage loss, replaceable high voltage components to bring convenience to the maintenance.
• Large flow of pneumatic components, in the smaller air pressure, can still achieve higher powder.
• All stainless steel for powder cartridge, can not use tools to easily remove all parts and clean.
• Two central gas design, so that the needle is no longer needle-guided fluid powder, to enhance the discharge effect, improve the rate of powder.
• Rotating atomized air flow is greatly improved coating quality.

Electrostatic Powder Coating Machine is a dry finishing process, using finely ground particles of pigment and resin that are generally electrostatically charged and sprayed onto electrically  grounded parts. The charged powder particles adhere to the parts and are held there until melted and fused into a smooth coating in a curing oven. Before coating, the parts to be coated are first pretreated similarly to conventional liquid coated parts. The pretreatment process is normally conducted in series with the coating and curing operatios.

Electrostatic spray machine works:
Electrostatic powder coating equipment (electrostatic spray machine) the powder coating to the surface of the work, under the action of electrostatic powder evenly adsorbed on the surface of the workpiece to form a powder coating, powder coating baked at high temperatures leveling solidified into varying results (the effect of different types of powder coatings) final coating.
This product is widely used in the home appliances, hardware, security door (window), fins, architectural, auto parts, sports equipment, medical equipment, aluminum and other industries.







Packing & Shipping

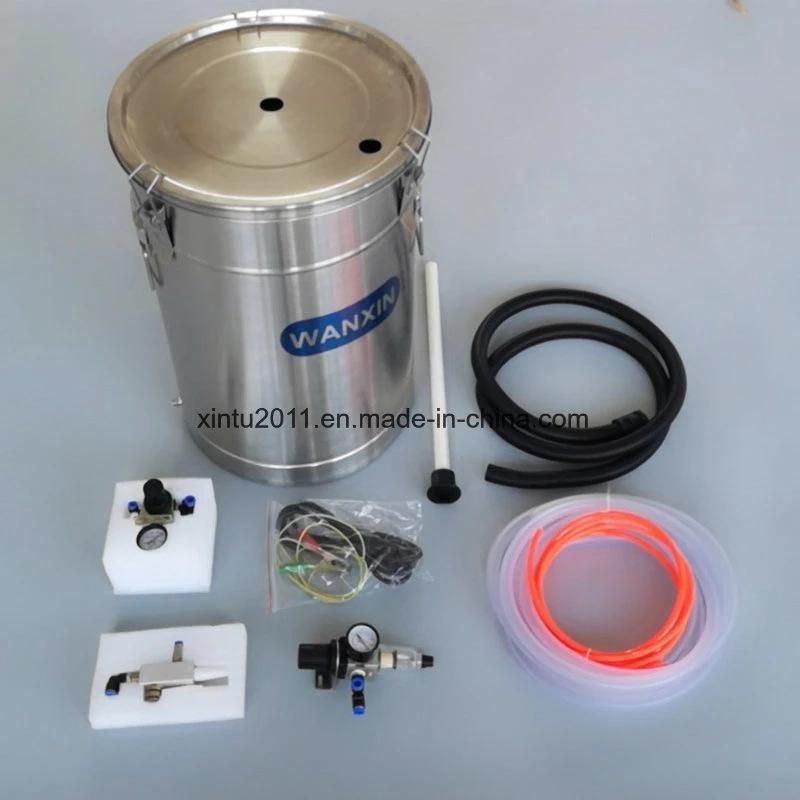

Packing List

• 1 × Manual Powder Gun With Gun Cable
• 1 × Powder Gun Spare Parts
• 1 × Control Unit
• 1 × Powder Injector
• 1 × Fluidized Powder Hopper
• 1 × Trolley
• 1 × Oil-Water Separator
• 1 × Pressure Regulating Valve
• 1 × Powder Hose ,Air Tubes ,Grounding Line

Packing Sizes:48.5 x 47 x 59cm
Gross weight: 22kgs
