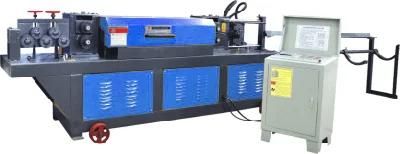

Automatic 2D CNC Wire Steel Wire Forming Machine

Guangzhou DuroWelder Limited
  • Automatic Grade：Automatic
  • Voltage：220V,380V, 50Hz,60Hz
  • Max Bending Speed：100turns,Min
  • Wire Diameter Range：2-10mm
  • Machine Weight：950kg
  • Can Be Customized：Yes

Base Info

  • Model NO.：WB2-6MM,WB3-10MM
  • Transport Package：Wooden Case
  • Specification：280*90*170cm
  • Trademark：Durowelder
  • Origin：Guangdong, China
  • HS Code：8462219000
  • Production Capacity：25sets, Month

Description

Model No.WB2-6MMWB3-10MM
Main Parameters
Input Voltage220V,380---415----480V, 50/60Hz, AC, 3-Phase.
Wire Diameter Range2-6MM3-10MM
Max Wire Feeding Instruction Value10000MM10000MM
Mini Wire Feeding Instruction Value0.01MM0.01MM
Max Wire Feeding Speed70M/Min50M/Min
Wire Feeding Accuracy±0.2mm±0.2mm
Max Bending Speed
100Turns/Min
100Turns/Min
Bending Accuracy±0.5mm±0.5mm
Machine DimensionL:280*W:90*H:170cmL:370*W:120*H:180cm
Machine Weight950KG1500KG

Contact information:

 Kally Lee( sales manager)
Automatic 2D CNC Wire Steel Wire Forming Machine
