• Model NO.：heating film4#
• Name：Etching Foil Heating Elements
• Tolerance：+,-0.01mm
• Smallest Open Hole：0.1mm
• Artwork：Ai,Coreldraw,Pdf etc
• Thickness：0.03mm-1.5mm
• Size：1*1mm2 - 300*500mm2
• Transport Package：as Required
• Specification：Custom
• Trademark：YanMing etching lead frame
• Origin：Shenhzen, China
• Production Capacity：200000PCS,Day

Basic Info.

Model NO. heating film4# Name Etching Foil Heating Elements Tolerance +/-0.01mm Smallest Open Hole 0.1mm Artwork Ai/Coreldraw/Pdf etc Thickness 0.03mm-1.5mm Size 1*1mm2 - 300*500mm2 Transport Package as Required Specification Custom Trademark YanMing etching lead frame Origin Shenhzen, China Production Capacity 200000PCS/Day

Product Description

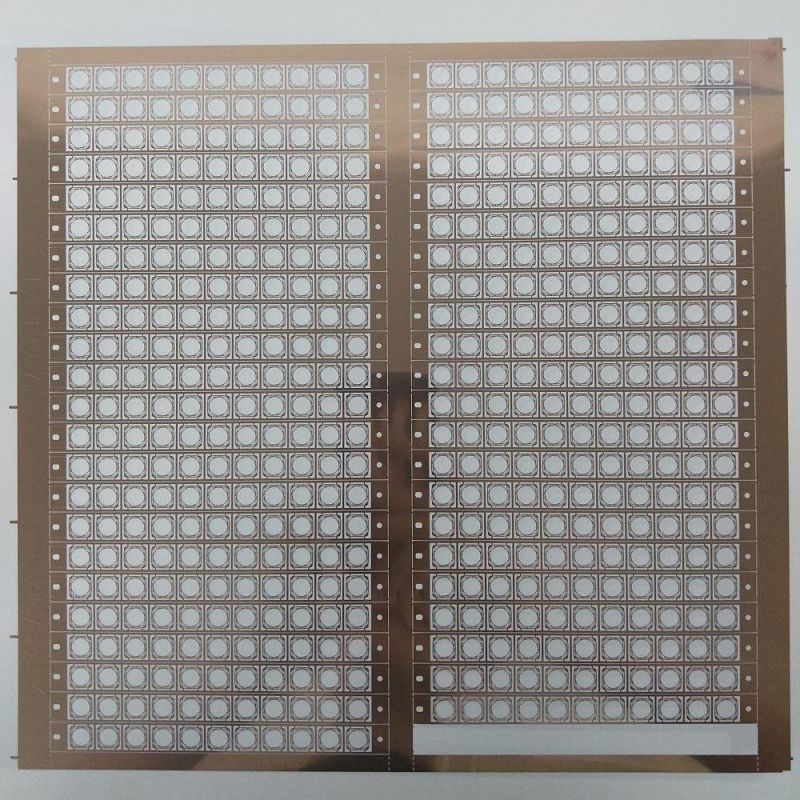

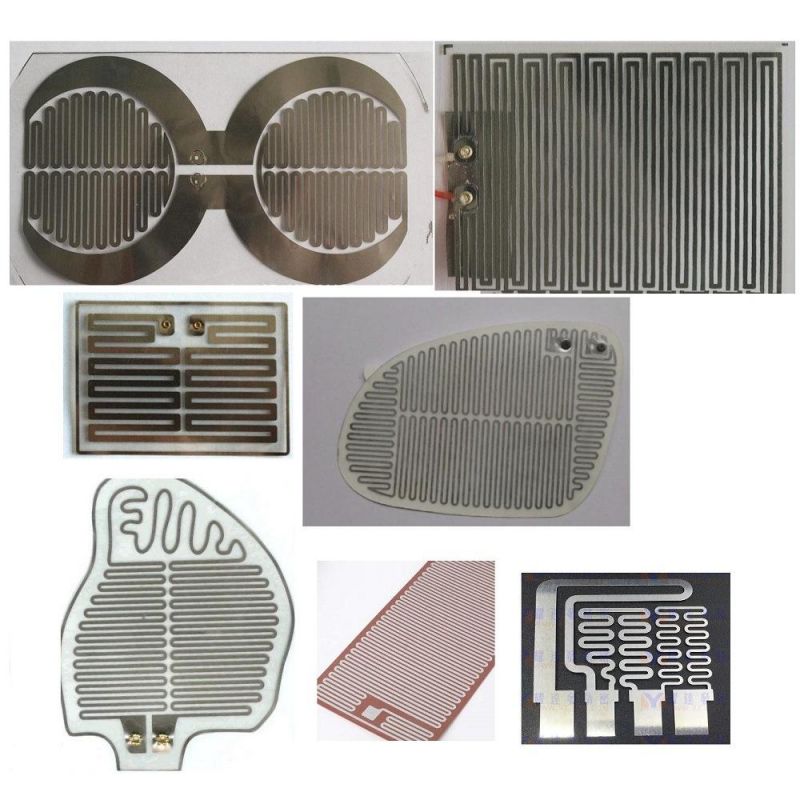

Photo Chemical Etched Stainless Steel Heating Element/Heating Coil/ heating film

1. Photo Etched Plate:  Photo Etching is also called metal etching, chemical etching, chemical milling, photo    etching, chemical etching, photochemical machining, chemical machining.


2. Applicable Scope:
    1, etching processing various kinds of metal, metal and alloy and stainless steel plate, strip,

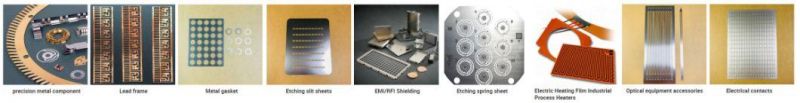

    2: (1), petroleum, chemical, food, pharmaceutical precision filter, filter plate, filter canister,filters, (2)electronic industry with metal plate, plate leakage, lead, lead frame, metal substrate, (3) precision optical and mechanical parts, components, plane spring, (4) friction slices and other parts of concave and convex surface, (5) metal plate and the design of complex metal accessories and elegant handicraft




3. Applicable Materials: Stainless steel sheet, copper sheet, aluminum foil, ferronickel alloy, iron sheet, Nickel silver, titanium alloy, etc.

4. Production Capability: Capable of shaping varieties of materials with the thickness of 0.03 to 1.2mm such as stainless steel, copper, aluminum, zinc and iron sheet by etching, half-etching, both sides and pattern imprinting without the need of hardware mold manufacturing charge.

5. Production Process:  Film(CAD output) →get the materials ready→Pre-treatment→DRY FILM(Lamination) →Exposure→Developing→Drying→Etching→Stripping → Checking,Packing,Delivery

6. Characters:  precision etching, smooth surface on both edges, no embossment, no convexconcave,
 no burnisher burr, no warping, any complicated pattern or geometric figure is available.

Product Description
1. Safe to use 100% Eco-friendly
2. Material:   Stainless steel, Brass, or Copper, according customers request, all Eco-friendly
3. Etching material thickness(mm): 0.15-1.0mm thickness or custmer requirement.
4. Tolerance:+/- 0.005mm
5: Technique: Chemical etching, Plating, Stamping
6: Shape:  Round, Square, or according to customers' request
7: Sample:  Free sample 1-2days after confirmation

Our advantages:
1, Short lead time, we are able to finish your sample and goods within your tight deadline.
2, Provide you etching metal parts with high precision, tight tolerance, for example, 0.1mm material, the tolerance can be 0.02mm.
3, Good price and service, quotation will be provided in 24 hours after getting your inquiry.

Advantages of Photo Etching:
1, Low tooling cost.
2, Can make thinner metals(T=0.04-1.0 mm).
3, High accuracy.
4, Various apertures, shapes and bar combinations.
5, Burr & Stress free manufacturing method.
