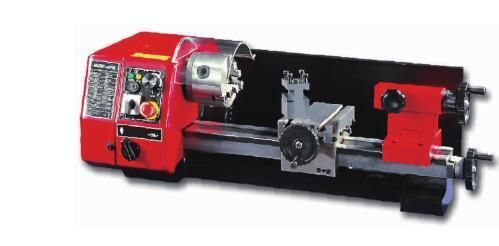

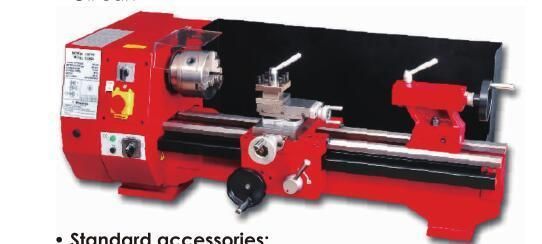

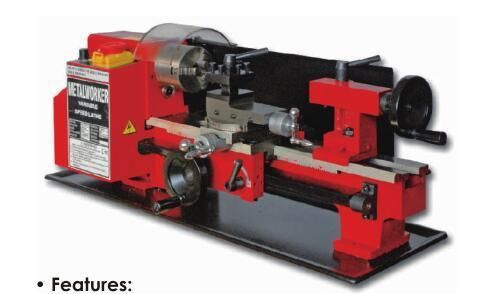

Micro Lathe

Qingdao Wepro Tool Co., Ltd.
  • Delivery Time：30 Days
  • Size：Middle
  • Customized：Customized
  • Logo Printing：Customization
  • Transport Package：Wooden Case
  • Specification：25-125mm

Base Info

  • Trademark：CUSTOMIZED
  • Origin：Qingdao
  • HS Code：8466200000
  • Production Capacity：3000PCS Per Year

Description

SpecificationModel No.199-1514Model No.199-1518Model No.199-1525Swing over bed140mm180mm250mmDistance between centers250mm300mm550mmHole through spindle9mm20mm20mmSpindle taperMT2MT3MT3Tailstock taperMT4MT2MT2Spindle speed100~2000rpm±10%Low   0~1100rpm±10%125~2000rpm  High   0~2500rpm±10% Motor output power150W250W550WRange of the threads     Metric0.5~1.25mm(5 thread pitches)0.4~2.0mm(10 thread pitches)0.4~3.0(12 thread pitches)or    Imperial16~24TPI(5 thread pitches)12~52TPI(8 thread pitches)10~44 TPI (8 thread pitches)Weight (net/gross)23/32kg37/40kg145/180kgPacking size (LxWxH)680x345x305mm770x330x330mm1200x660x600mmMicro Lathe
Micro Lathe
Micro Lathe
Micro Lathe
