Steel Wire Steel Bar Rebar Straightening and Cutting Machine
Hangzhou Suntech Machinery Co., Ltd.- Type：Balance Roller Straightening Machine
- Usage：Wire, Bar
- Voltage：Customized
- Automatic Grade：Automatic
- Principle：Small Deformation
- Certification：TUV, CCC, ISO9001, CE
Base Info
- Warranty：18 Months
- Customized：Customized
- Condition：New
- Transport Package：Seaworthy Packing
- Trademark：SUNTECHMACH
- Origin：China
- HS Code：846330
- Production Capacity：500 Sets,Year
Description
Basic Info.
Warranty 18 Months Customized Customized Condition New Transport Package Seaworthy Packing Trademark SUNTECHMACH Origin China HS Code 846330 Production Capacity 500 Sets/YearProduct Description

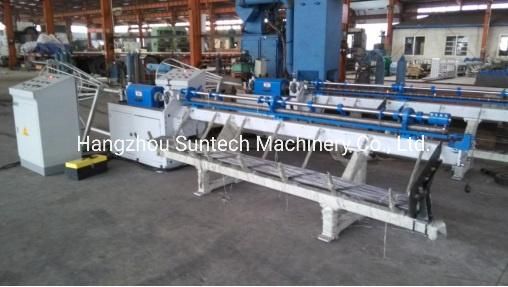

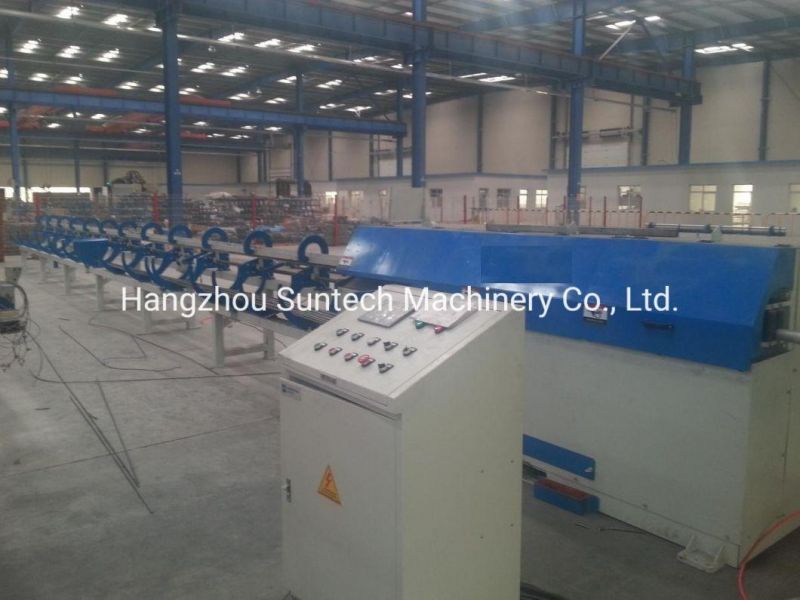

Steel wire straightening and cutting machine
I. Features of Machine:Adopt the PLC system control, combining the controller, operation interface, input/output and analog to becoming a unit, can be done the human-machine interface of CNC operation input.II. Main Technical Parameters:
| 1 | Wire diameter | φ3-φ6mm |
| 2 | Cutting length | 0.5-6m |
| 3 | Working speed | 60-110m/min |
| 4 | Catching wire power | Share with straightening motor |
| 5 | Cutting wire motor | 1.5kw |
| 6 | Straightening motor | 4kw |
| 7 | Straightening application | Low carbon steel wire, cold rolled rebar and hot rolled rebar |
| 8 | Length accuracy | ±1.5mm |
| 9 | Power supply | 3 phase, 380V, 50HZ |
| 10 | Cross section of each phase (copper wire) | 14mm² |
| 11 | Brake model of wire pay off | Electromagnetic power-off brake DZS3-40 |

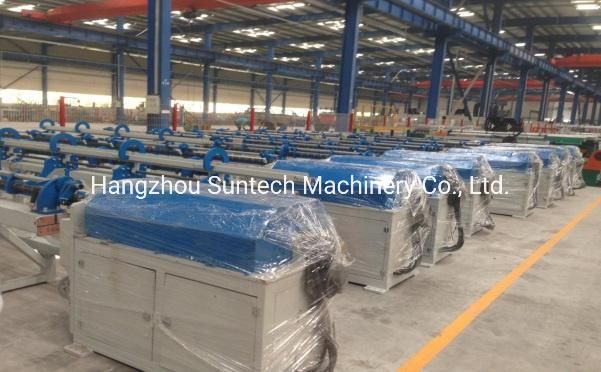

III. Our Workshop:
IV. Clients list for reference:
