Metallic Processing Machinery

Big Breakdown Machine for Copper Rod with Heat Treatment Unit

Hangzhou Suntech Machinery Co., Ltd.
  • Type:LT Water Tank Type Metal Drawing Machine
  • Usage:Wire, Rope Wire, Prestressed Steel Wire
  • Metal Material:Copper
  • Outlet Diameter:1.5
  • Max.Inlet Wire Dia.:8mm
  • Block Dia.:450mm

Base Info

  • Max. Number of Block:13
  • Certification:REACH, RoHS, ISO, Ce
  • Condition:New
  • Transport Package:Seaworthy Packing
  • Trademark:SUNTECH
  • Origin:China
  • HS Code:8463300000
  • Production Capacity:200 Sets,Year

Description

No.

Item

Unit

      Specification

1

Inlet diameter

mm

    8.0

2

Outlet diameter

 mm

    1.35-3.00

3

Max. drawing times



      13

4

Max. drawing speed

 m/s

      8

5

Speed adjust wheel diameter

 mm

 D450

6

Drawing capstan



Tungsten carbide coating

7

Motor power

 KW

     160KW

8

Power of take-up

KW

     11KWX2

9

Spool size



     D500

10

Max. annealing voltage

 V

      70

    11

Max. annealing current

 A

     6000

    12

Contacting wheel diameter

 mm

      230

    13

Annealing length

 mm

      2000

    14

Steam protection pressure

MPa

      1.5

    15

Compressed air pressure

MPa

      1.5

    16

Cooling passing length

mm

     5000

    17

Transmission type



    Gear box

    18

Tension adjust type



    Pneumatic

    19

Power source



3Phase/380V/50HZ

    20

Overall dimension

mm

18000X5000X4550

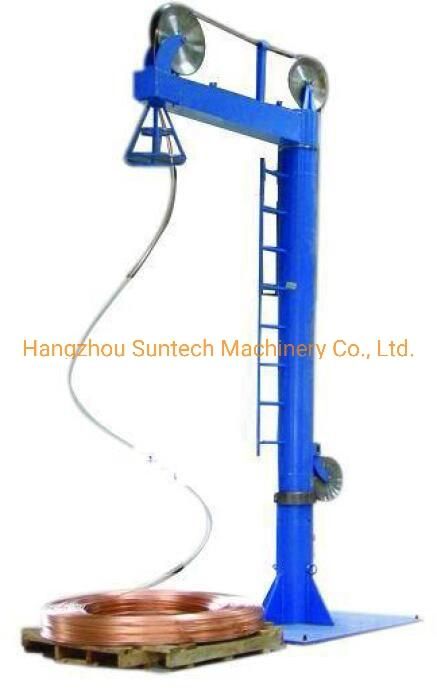

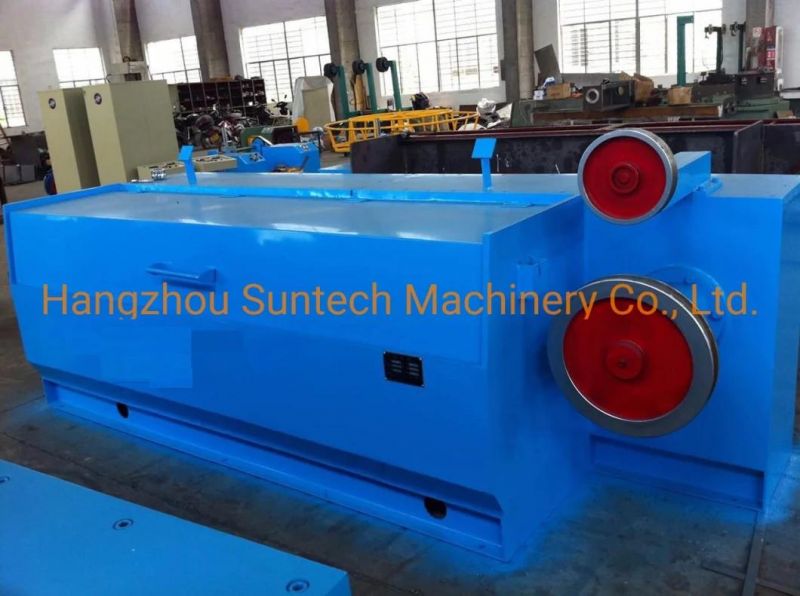

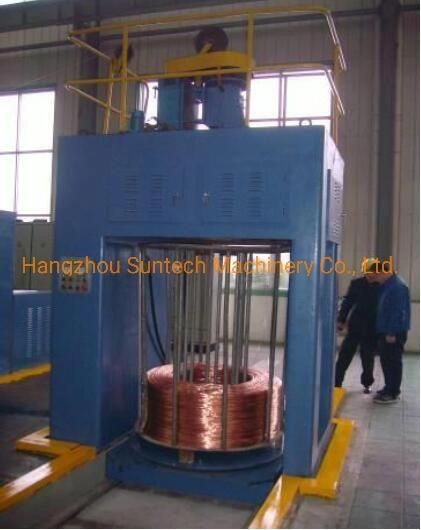

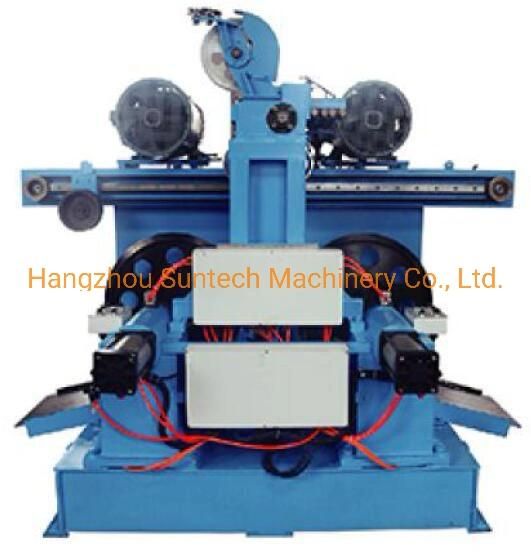

III. Details of machine for reference:

Big Breakdown Machine for Copper Rod with Heat Treatment Unit

Big Breakdown Machine for Copper Rod with Heat Treatment Unit

Big Breakdown Machine for Copper Rod with Heat Treatment Unit

Big Breakdown Machine for Copper Rod with Heat Treatment Unit

Big Breakdown Machine for Copper Rod with Heat Treatment Unit
