• Model NO.：HYD-60T-16A
• Machine Size：3600*1400*2050mm
• Weight：4500kg
• Power AC：3-380VAC 50Hz
• Transport Package：Standard Wooden Box
• Specification：3600*1400*2050mm
• Trademark：HYD
• Origin：Dongguan, Guangdong, China
• HS Code：84633000
• Production Capacity：300 PCS,Year

Basic Info.

Model NO. HYD-60T-16A Machine Size 3600*1400*2050mm Weight 4500kg Power AC 3-380VAC 50Hz Transport Package Standard Wooden Box Specification 3600*1400*2050mm Trademark HYD Origin Dongguan, Guangdong, China HS Code 84633000 Production Capacity 300 PCS/Year

Product Description

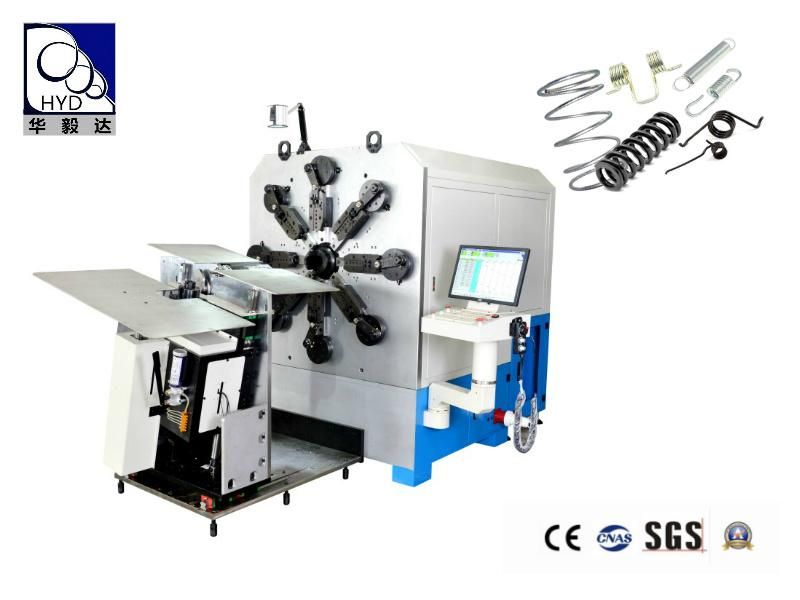

High-Efficient 8mm 16 Axes Computerized Cam-Less Spring Wire Bending Machine

1. Machine Features:
The first combined machine of multi-functional spring machine and wire forming machine, effectively combines the characteristics of the two models, improve the adaptability of machine, achieve the" one machine with two function. It's a new product that is the most cost-effective in the spring machine industry.

--Reverse lifting platform reaches the maximum bending frame size 600mm * 1000mm, professional processing line for molding.

--Using the link rocker design, independent single-axis servo motor control, simple and convenient operation, shaped spring can be placed by the angle of the tooling to reduce setup times, Increase productivity.

--The design of hydraulic shears, cut directly after forming without cutting back again, indirectly enhance productivity.

--Taiwan roller guides, good wear resistance, more durable to maintain accuracy.

--To Line separating the motor and the power transmission line box, reducing wire feed box load, increasing the turn angle of the line, effectively guarantee the accuracy of feeding lines and transfer lines.

--Taiwan control system, more effectively ensure the mechanical and computer synchronization.


2. Technical parameters

Model	HYD-60T-16A
Axis Count	16 aixs
Wire Size range	Steel wire: 2-6mm Iron wire: 3-8mm
Maximum wire length	Unlimted
Max feeding speed	80m/min
Wire Feeding wheel count	4 pairs
Motor power consumption	59KW
Reducer	13 PCS
Machine size	3600×1400×2050mm
Weight	4500kg
Power AC	3-380VAC 50Hz

3. Packaging and Delivery
Packaging: Standard Export Fumugated Wooden Case
Delivery: 4-6weeks after payment

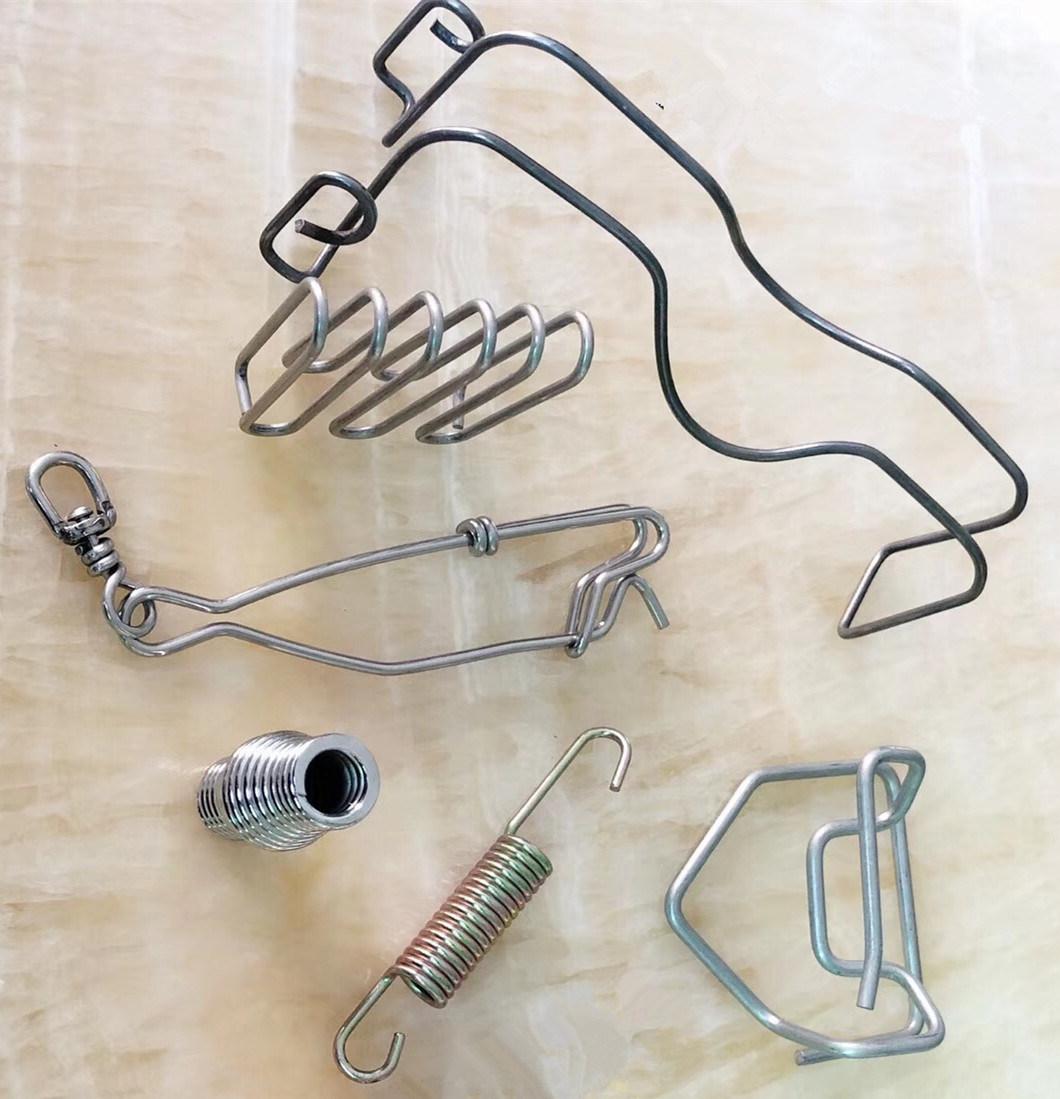

Spring Sample

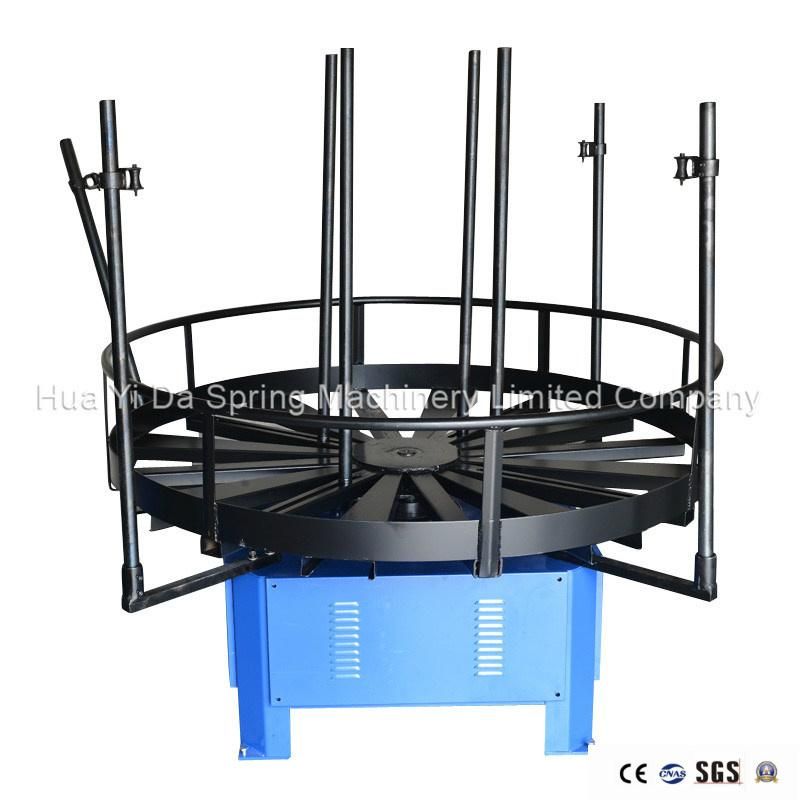

Decoiler Equipment


Packaging & Shipping



FAQ
1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc

2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

3. Q: What is the payment term
A: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment term.

4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receiving deposit. But it depends on machine model. Some of them could be shipped within 10 days.

5. Q: What is the guarantee period of the machine?
A: The guarantee period is one year from the date of B/L.
