Small Electric Industrial Electrostatic Powder Coating Paint Curing Oven for Car Wheels
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：12 Moths
- Warranty：12 Moths
- Type：Powder Coating Booth
- Coating：Powder Coating
- Substrate：Aluminum
- Certification：CE, ISO
Base Info
- Model NO.：COLO-1688
- Condition：New
- Name：Electric Powder Coating Curing Oven
- Dimension：1m*1m*1.8m
- Product：Small Electric Powder Coating Curing Oven
- Motor：0.75kw
- Electric：4kw
- Electric Tube：1kw*4PCS
- Delivery：15 Work Days
- Payment：100% T,T in Advance
- Item：Small Powder Coating Oven
- Transport Package：Export Packaging
- Specification：CE ISO
- Trademark：COLO
- Origin：China
- HS Code：8504231300
- Production Capacity：50sets,Month
Description
Interlayer is made of 100mm thickness rock wool insulation, together with galvanized steel inner wall and powder coated steel outer wall, form a sandwich structure, which optimizes the heat preservation effect.

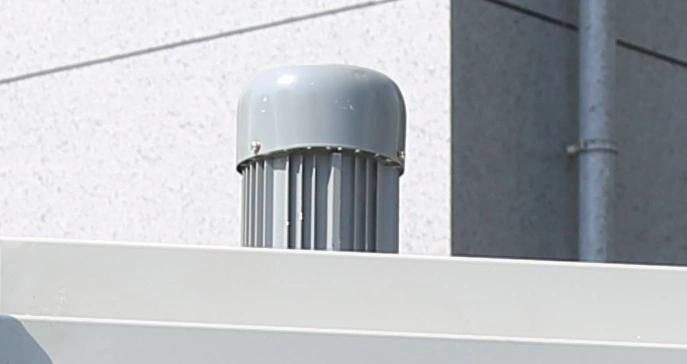

Forced air circulation by 0.75kw fan, ensures uniform temperature in chamber with a minimal temperature difference, in order to make parts cure with a quality finish with even gloss and consistent color.

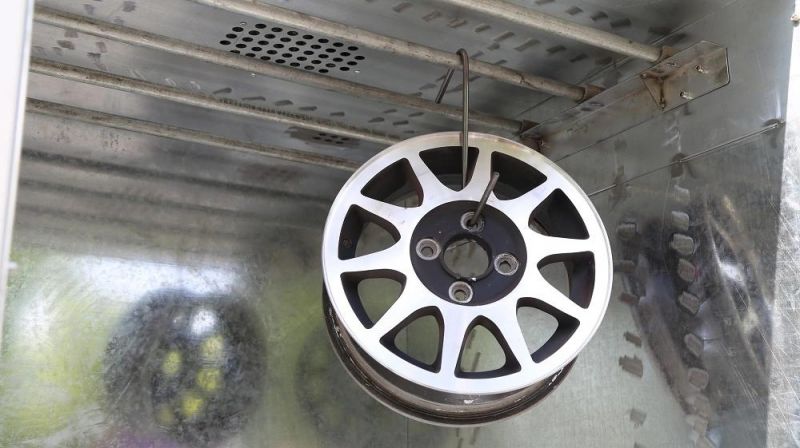

Built-in shelves are designed for hanging workparts, features convenient for spraying heavy and bulky parts, which is a labor-saving device.

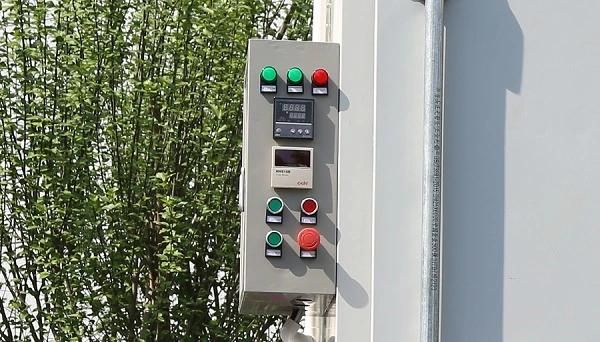

The control panel offers all functions needed. Support for setting required time and temperature precisely to get a wonderful powder coating curing effect.
Specifications of Electric Powder Coating Oven
| Model | COLO-1688 |
| Worksize dimensions | 845width x 1600 height x 1000 depth |
| Overall dimensions | 1400 width x 2200 height x 1100 depth |
| Power supply | Electric/ 6.5kw |
| Voltage/Frequency | 110V/220v(50-60hz) |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max. | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.55kw |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Warranty | 12 months |
Our Company
We specialized in the line of the electrostatic powder coating line, main products are: Powder coating line, powder coating equipment, powder coating booth, powder coating curing oven, Automatic reciprocating machines, powder recovery system, Conveyor system and related solutions.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. Meanwhile our engineer is available to supply support abroad to our customer.
Contace us for more product detail !
