• Software：Starcam or Fastcam
• Motor：Stepper or Servo
• Transmission：Rack Transmission
• Running Accuracy：≤ 0.005 mm
• Electrical Components：Schneider
• Lathe Bed：Welded Steel
• Cutting Gas：Air
• Transport Package：Fumigation Wooden Box
• Trademark：Remax
• Origin：China
• HS Code：8456401000
• Production Capacity：60PCS,Month

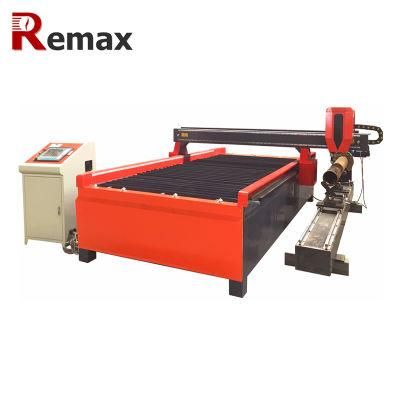

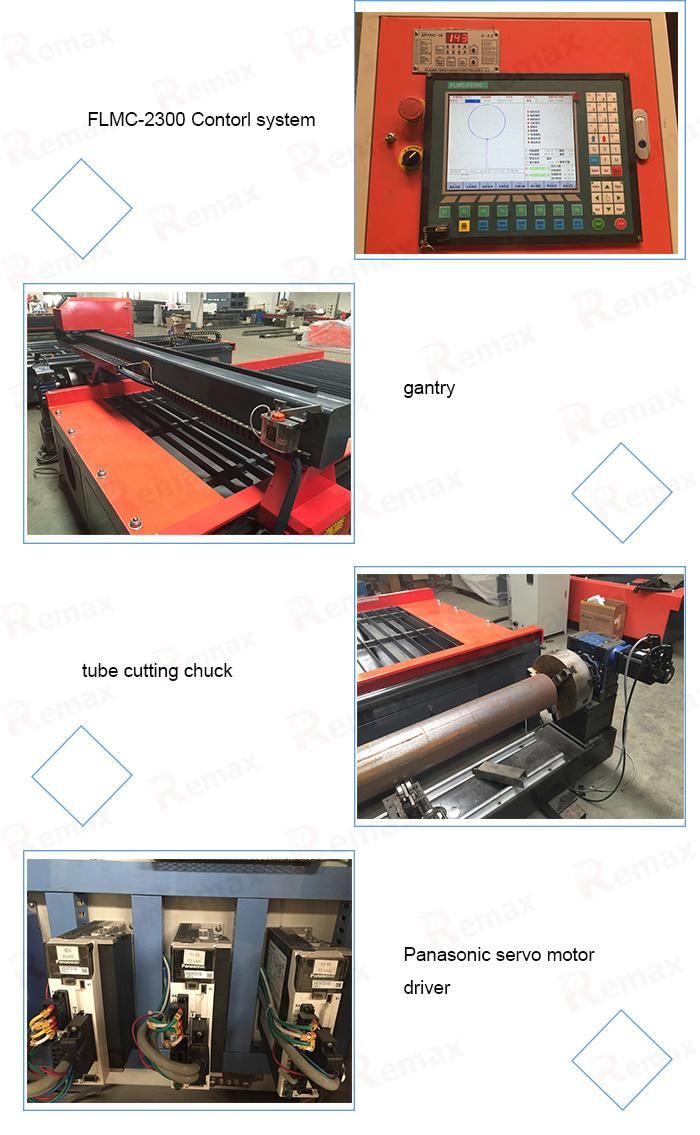

ModelCNC plasma tube cutting machineEffective cutting width(X axis)1300mmEffective cutting width(Y axis)2500mmPlasma powerHypetherm 125AEletric componentsSchneidercontrol systemFLMC-2300XPlasma cutting speed50-6500mm/minCutting torch lifting distance150mmSpeed setting error≤±5%Max idle running speed12000mm/minTorch height controller accuracy≤±1.0mmLongitudinal line accuracy±0.2mm/10mDrvierPanasonic servo motor and driverGear boxHubei planetDrive MethodRack and square rails for X Y Z axisMoving Precision0.01mm per stepMachine Voltage220V 50/60hz ,Single phase Plasma power voltage 380V 50/60hz ,3 phasePlasma cutting thickness1-30mmLength of one side±0.5mmDiagonal error|AD-BC| ±0.5mmError of returning to base point±0.2mm
