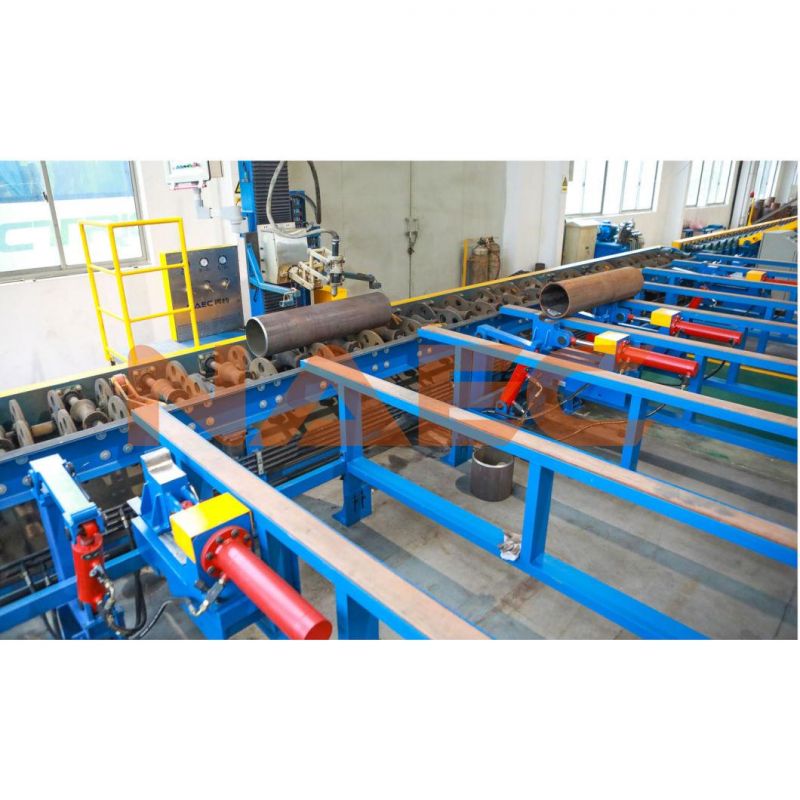

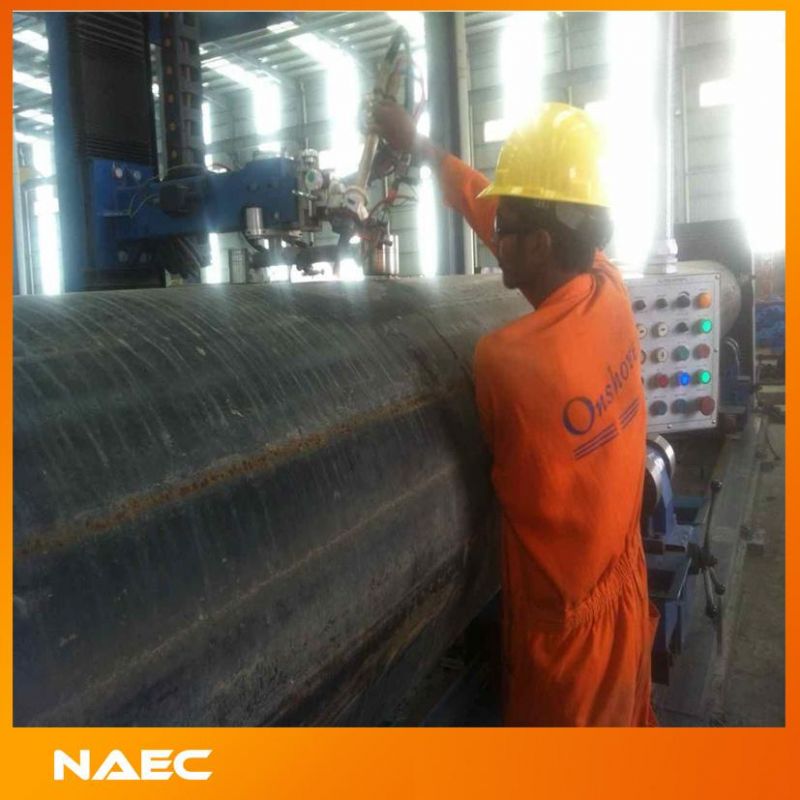

Five-Axis CNC Flame/ Plasma Pipe Cutting/ Profiling Station 2-32"
Nanjing Auto Electric Co., Ltd.- Cutting Material：Carbon Steel, Stainless Steel
- Automatic Grade：Automatic
- Specification：SGS, ISO9001
- Trademark：NAEC
- Origin：China
Base Info
- Model NO.：NAEC
Description
random angel cutting
multi syphon unfolding cutting
insert style- 3 pipe union transversal cutting
ride style- 3 pipe union transversal cutting

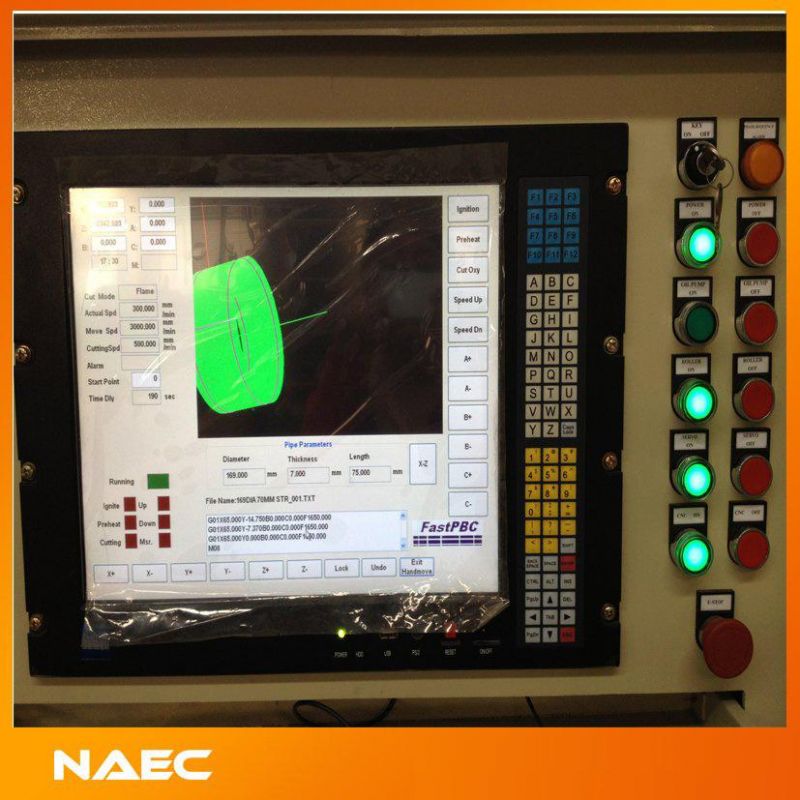

Q: Can programming be done remotely? Does Customer need a programmer?
A: Programming cannot be done remotely. It is done in the computer and copy to the machine by USB flash disk. You will need a programmer, but he does not need to be very professional because of easy operation with menus and diagrams.
Q: Can customer use drawing input directly to load machine?
A: Yes, such as AUTOCAD drawing to be loaded.
Q: What will happen in continuous HOT / Humid condition in open Yard?
A: PANEL needs to be air-conditioned AND tropicalised.
Q: What will happen if ovality of tubular is more? Will it give error?
A: Our machine can track and correct the height of cutting gun.
Q: Will machine find work point?
A: Yes, the machine can find the work point automatically.
Q:Will turning rollers have any synthetic material (rubber/ Teflon) to minimize "pipe slippage" during cutting?
A: Plasma cutting needs such material. Flame cutting does not need.

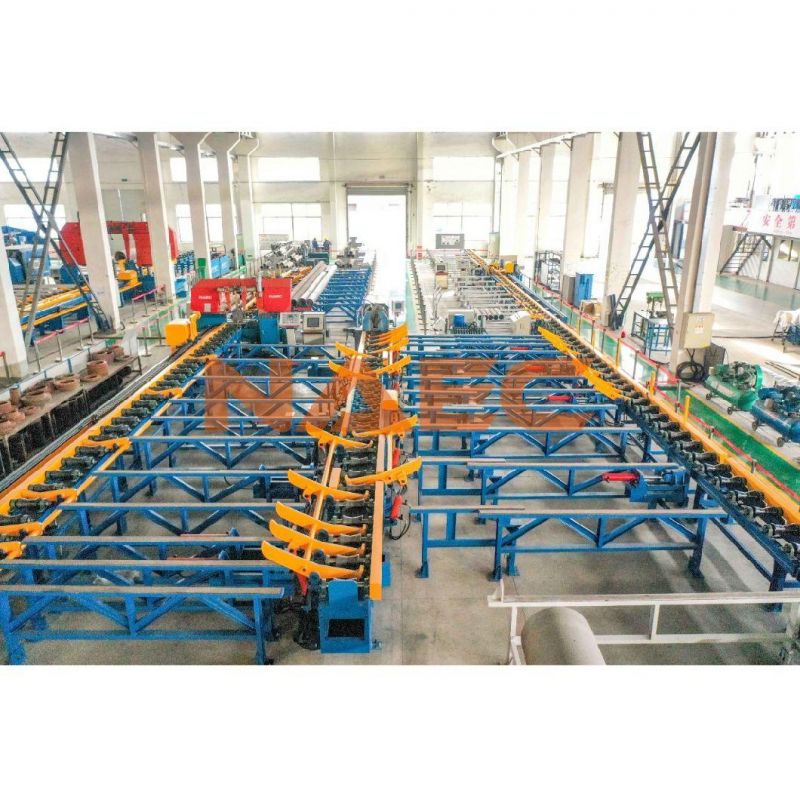

Pipe Spool Fabrication Machines

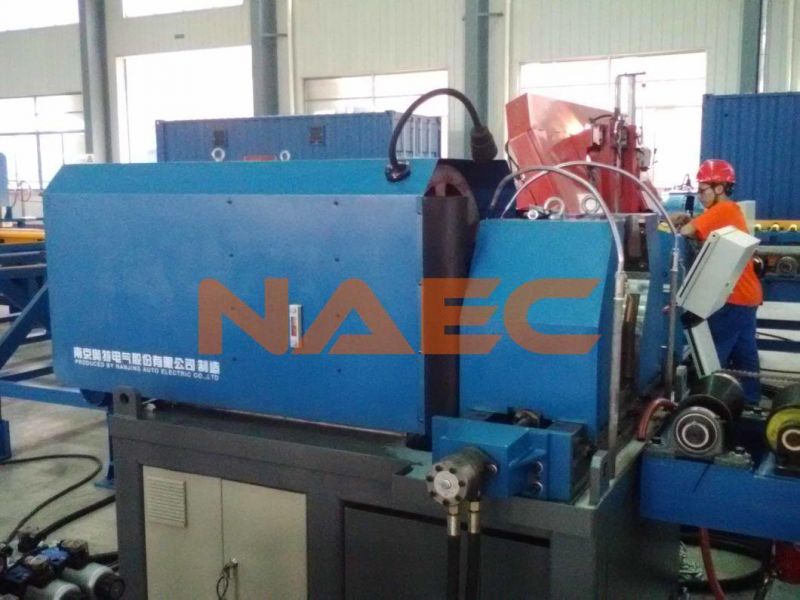

Pipe Cutting& Beveling All-in-one Machine
>Suitable for pipes not larger than 8",max.thickness:20mm
>Cutting efficiency:100times/8hrs
>PLC control with automatic measuring to guarantee the same processing cycle
>Widely used for small bore C.S/S.S production lines

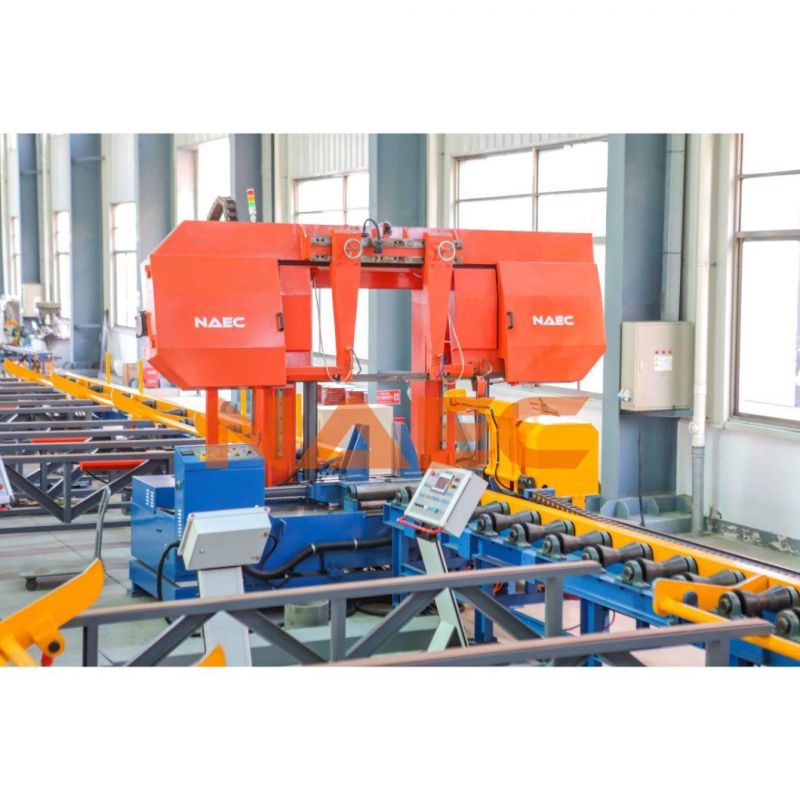

High Speed Band-saw Cutting Machine
>Three models available(16"type,24"type",48"type)
>PLC system control;self-measuring function with precision:±0.5mm
>Using hydraulic self-centering chuck
>It only takes 6 minutes to cut a 24" pipe of 25mm thickness
>Widely used for C.S/S.S production lines.

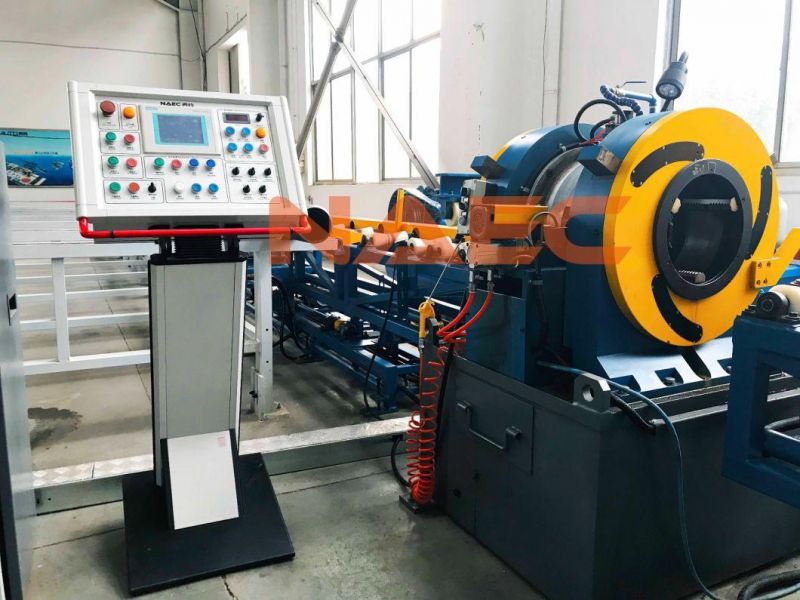

High Speed CNC Pipe End Beveling Machine
>Automatic self-centering chuck
>Single V,double V,U type bevel
>Can be matched with pipe end turning devic
>High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm)
>Several models available:16",24",32",48"
Two / Multi- Axis CNC Flame/Plasma Cutting Machine
>High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe.
>Five/multi-axis cutting machine can profile more complicated outlines with various bevel type
>Standard machine suitable for pipes nor larger than 24''
Multi-function Pipe Fitting-up Station
>Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up.
>Light-duty type(manual) and heavy-duty type(motorized) are available.
>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
Automatic Pipe Welding Station
>With two welding heads
>TIG/MIG/SAW are optional
>PLC system control & WPS programmed
>Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology.
>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
Conveyor Handling System
>used for pipe convenient transporation during in pipe spool fabrication.
>Its speed is adjustable between 2M to 20M/min.
For more information, please contact us, thank you!
