• Model NO.：Z94-C
• Production Capacity：100PCS,Month

Basic Info.

Model NO. Z94-C Production Capacity 100PCS/Month

Product Description

China Automatic Iron Nail Making Machine Factory Price

My contact Way
My mobile: 86-15251635399
Contactor: Echo Shi

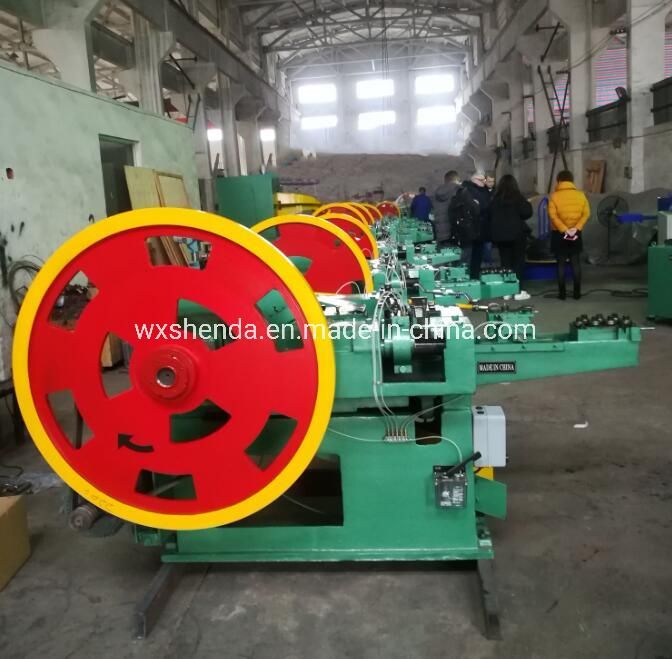

Our Factory
Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting various
machines and equipments since 1995.

Our main products include Nail Making Machine Production Line, Wire Drawing Machine Production
Line, High-speed Screw Rolling Machine and High-speed Coil Nail Machine.

11-Years Alibaba Golden Supplier
Time proves we are a professional factory with stable quality and competitive price.
We provide one-stop service from design to installation.

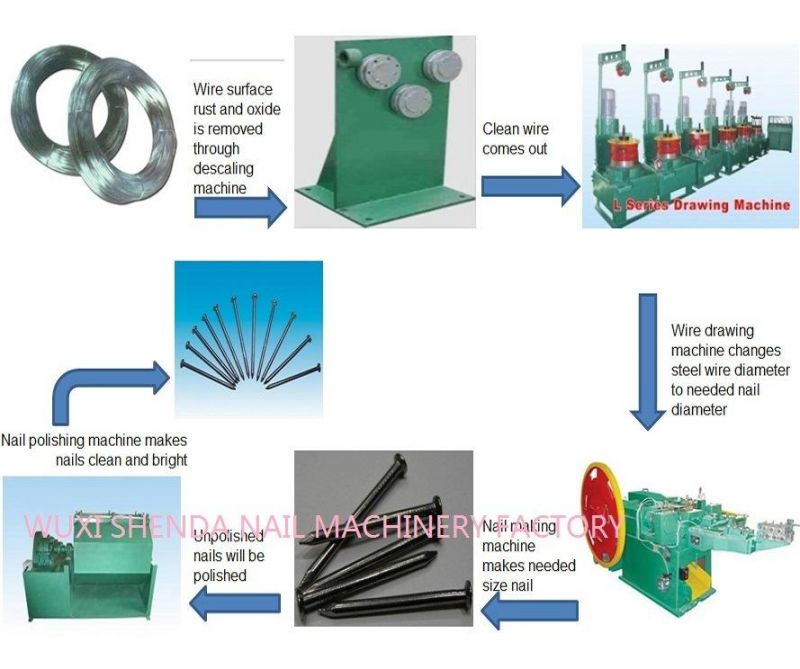

The whole Nail making process::

1.Drawing steel wire: use wire drawing machine to change needed wire diameter.
(If nail diameter is 3mm, wire diameter will be drawn to 3mm)
2.Making nail: Enter the finished steel wire into nail making machine.It can produce not-so-bright nail.

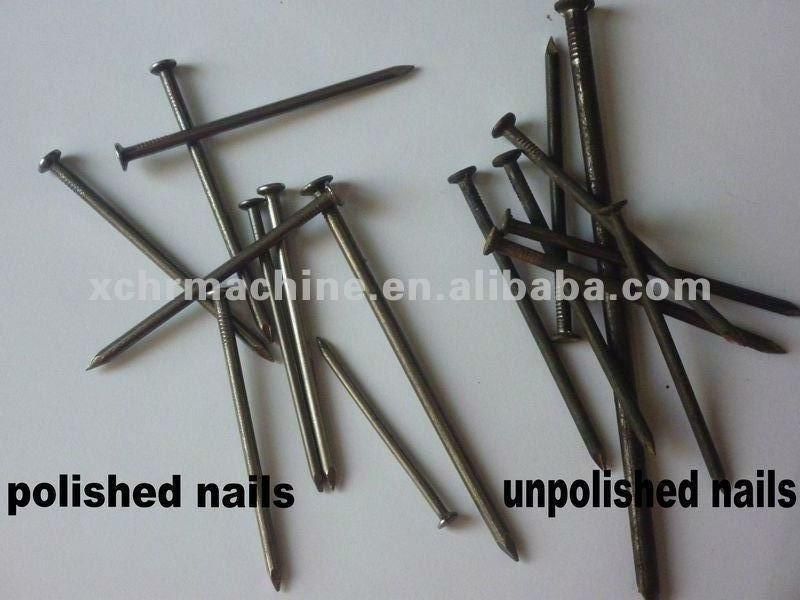

3.Polishing:Put the semi-finished nails into the poblishng machine
with some saw dust,paraffins and gas. After clashing and crashing,the nails become bright.
4.Packing:Use wooden case to pack the nails.

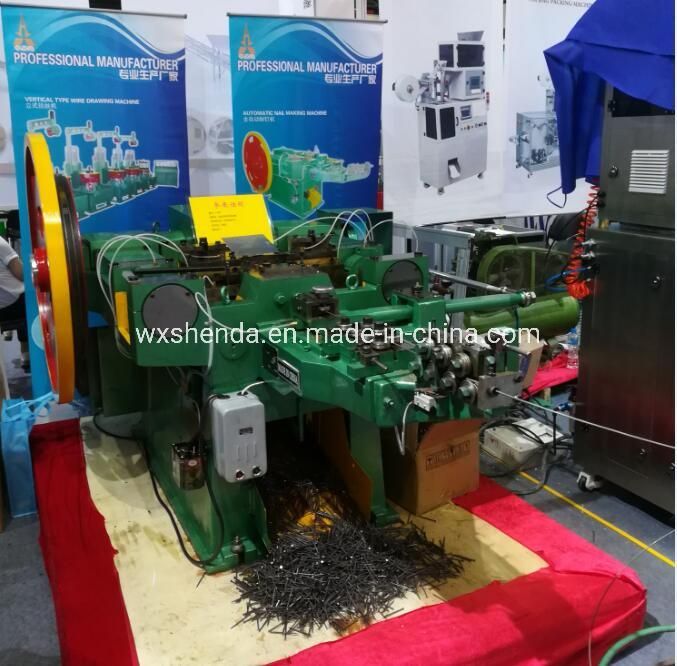

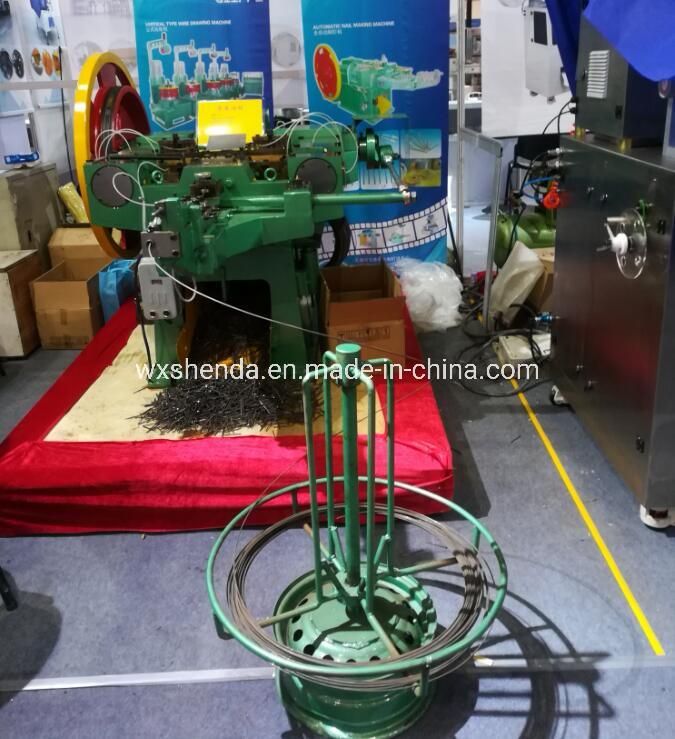

Nail Making Machine
There are seven models of wire nail making machines. you can choose the model based on
your needed nail size. It is easy to operate, and it can feed steel wire and making nail body
straight, nail points sharp and symmetric, nail caps round. Each nail made from this machine is excellent and perfect.

The specification of each machines is as follow :

Model	Z94-1C	Z94-2C	Z94-3C	Z94-4C	Z94-5.5C	Z94-6.5C
Max. dia. of nail	1.6mm	2.8mm	3.5mm	4.5mm	5.5mm	6.5mm
Min. dia. of nail	0.9mm	1.2mm	1.8mm	2.8mm	3.1mm	4.5mm
Max. Length of nail	25mm	50mm	75mm	100mm	150mm	200mm
Min. length of nail	9mm	16mm	30mm	50mm	80mm	100mm
Motor power	1.5kw	2.2kw	3kw	4kw	5.5kw	11kw
Nail making speed	450pcs/min	350pcs/min	320pcs/min	260pcs/min	200pcs/min	180pcs/min
L*W*H	1.5*1.3*1.2m	1.7*1.3*1.4m	2.0*1.4*1.4m	2.2*1.6*1.65m	2.5*1.6*1.5m	3.5*1.9*1.8
Weight	1.2tons	1.45tons	1.8tons	2tons	2.3tons	5.5ton

Our Services
Your concern is our concern!Your request is our request!Your value is our value!
1. 23years experience in nail &wire machinery manufacture ,strictly cover all requirements for customer.
2. offer ultimate customization and personalized solutions
3. factory lay-out and Installation support
4. Engineer available for machine adjusting and testing abroad.

Why Choose Us
~ISO&CE manufacturer since 1995
~professional team & professional service 7x24hours
~strict inspection and 100% testing for machine producing
~engineers available overseas if you need any help
~refund to you if any problem caused by machine quality itself
~Customer first and good quality as our factory lifeblood
