High Quality Spiral Round Flexible Iron Pipe Making Machine for Ventilation Duct
Henan Yugong Machinery Co., Ltd.- Power of Main Motor：4kw
- Power of Cutting：2.2kw
- Power of Water Pump：40W
- Capacity：23L
- Internal Diameter：50-135mm
- Steel Trip：Thickness 0.25-0.3mm
Base Info
- Bellows Pitch：26.5-28.5mm
- Speed：2-10m,Min
- Dimension：1100*800*1360mm
- Weight：450kg
- Transport Package：Wooden Case
- Specification：corrugated pipe making machine
- Trademark：YUGONG
- Origin：China
- HS Code：8479109000
- Production Capacity：1000 Set,Month
Description
Basic Info.
Bellows Pitch 26.5-28.5mm Speed 2-10m/Min Dimension 1100*800*1360mm Weight 450kg Transport Package Wooden Case Specification corrugated pipe making machine Trademark YUGONG Origin China HS Code 8479109000 Production Capacity 1000 Set/MonthProduct Description
High Quality Spiral Round Flexible Iron Pipe Making Machine for Ventilation DuctDescription of Corrugated pipe machine

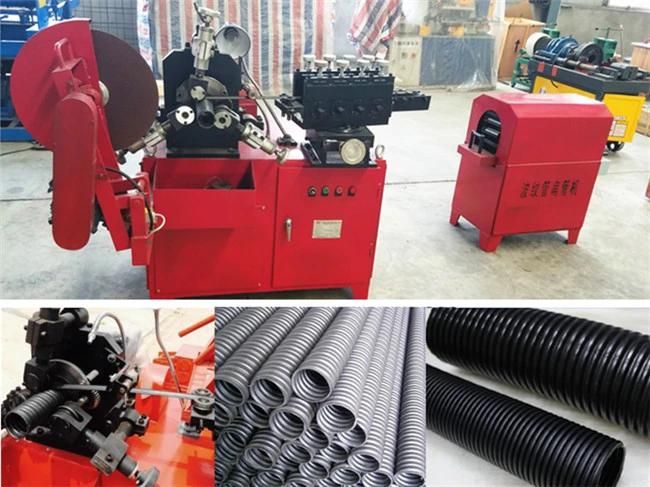

CS-135 prestressing corrugated pipe machine is a equipment to produce metal bellows which are used for the pre-arranged holes in prestressing concrete.It makes galvanized or cold rolled steel strip (black belt) into double waveform,then undercut and swage into orrugated pipe.It is widely used in highway bridges, railway bridges, construction of water conservancy, electricity and other national major projects.
Process:

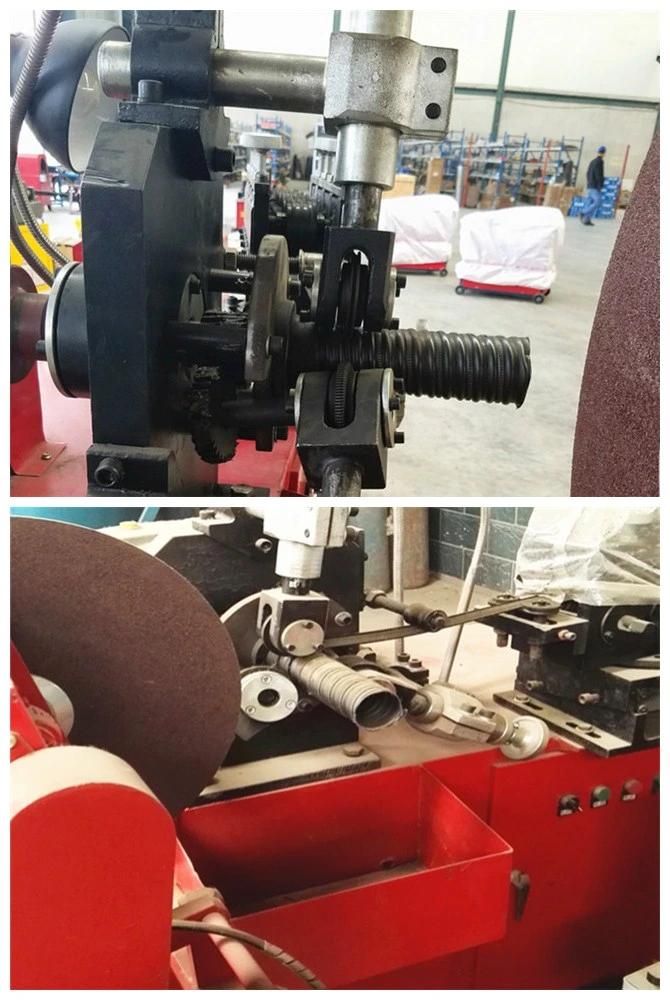

Raw material (steel trip)---purge tank---Conduction frame---contoured roll---Winding head---undercut---pipe formation---cutting

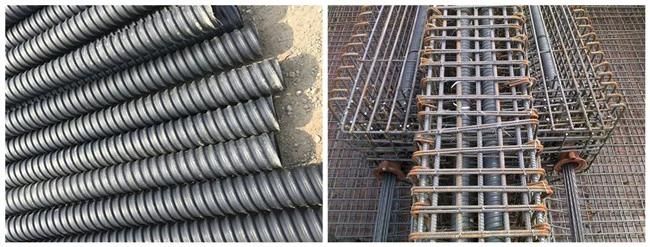

Prestressed corrugated pipe is mainly divided into metal corrugated pipe and plastic corrugated pipe.
Thickness of the steel trip:0.25mm
Internal Diameter φ 50mm φ60mm φ70mm φ80mm φ90mm

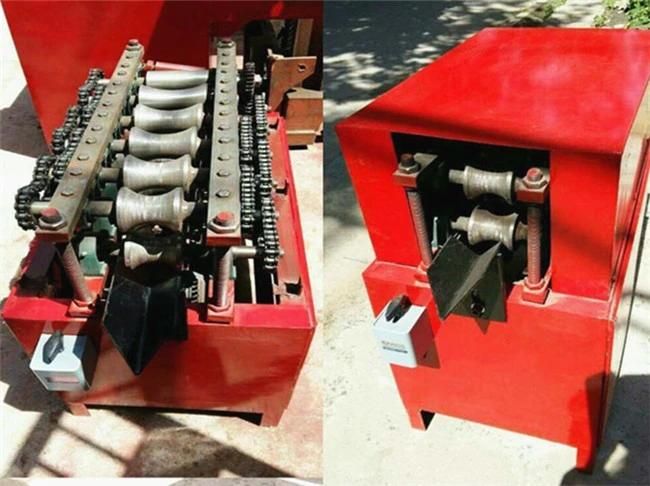

Feature of Corrugated pipe machine
- The pitch is 26.5 ~ 28.5mm, the material is saved, and the rate is high.
- Fast speed, stepless speed regulation motor.
- asy to operate and maintain.
- Power saving,0.7kwh/100m for Ф70 pipe.
- Durable and long life.No overhaul within two hundred thousand meters.
| Model | CS-135 |
| Motor | YCT180-4A |
| Power of main motor | 4kw |
| Power of cutting | 2.2kw |
| Power of water pump | 40w |
| Capacity | 23L |
| Internal Diameter | 50-135mm,140-305mm |
| Steel trip | Thickness 0.25-0.3mm,width 36mm |
| Bellows pitch | 26.5-28.5mm |
| Speed | 2-10m/min |
| Dimension | 1100*800*1360mm |
| Weight | 450kg |
1.Any inquiries will be replied within 12 hours.
2.Professional manufacturer, Welcome to visit our factory at any time.
3.High quality, fashion designs, reasonable & competitive price and fast lead time.
4. Protection of your sales area, ideas of design and all your private information.
5.Shipping:We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, China air post.You also can choose your own shipping forwarder.
