Flying Shear
Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd.- Rolling Shape:Ribbon, Bar, Wire, Bar, Wire
- Product:Steel Ball, Profile, Rolling Beam, Steel Billet, Wire Rod ,Rebar,Tmt Bar, Steel Billet
- Roller Position:Horizontal, Horizontal
- Roller Number:Two-High, Two-High
- Layout:Continuous, Continuous
- Type:Hot Rolling Mill, Hot Rolling Mill
Base Info
- Transport Package:Seaworthy Packing
- Specification:for different requirements
- Trademark:Hangji
- Origin:Shaanxi, China
- HS Code:8455219000
- Production Capacity:5sets,Month
Description
Basic Info.
Transport Package Seaworthy Packing Specification for different requirements Trademark Hangji Origin Shaanxi, China HS Code 8455219000 Production Capacity 5sets/MonthProduct Description
The purpose of the equipment
The finishing mill group is composed of top crossed 45° high-speed wire-rod finishing mills.
The finishing mill group is located in high-speed wire-rod workshop.Through 10 unit rack the continuous micro-tension rolling mill will be transported upstream Æ17 ~ Æ21mm of rolling, rolling become Æ5.5 ~ Æ16mm finished wire.The working speed of 90m/s is insured.The specification of end product is Æ5.5mm.

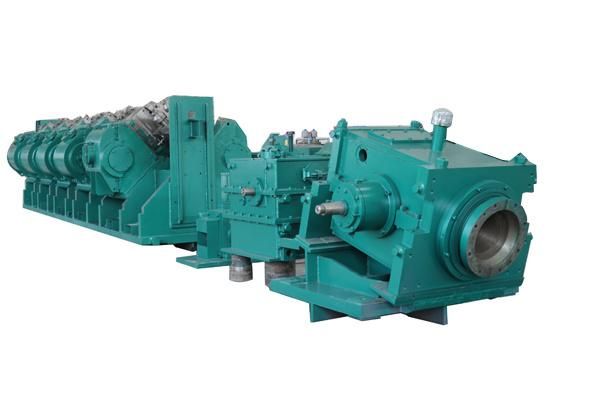

Structural characteristics of finishing mill
l Finishing mill unit is combined with ten mills, speed increasing box, support base, arc coupling, waterproof slot, waterproof plate, the protective cover, piping and guide of finishing mill. Mill frame is composed of three Æ200mills and seven Æ150 mills, frame use top crossed 45° composition form to achieve no twisting, no contact axis, little axis and shock for equipment, besides, it decrease the center of gravity height, the stability increased as well, in the mean time, the total weigh has decrease and it is easy to maintain. Ten frames are concentrated transmission.
l Roll frame is composed of roller box, bevel gearbox and spare parts of bevel gearbox.
